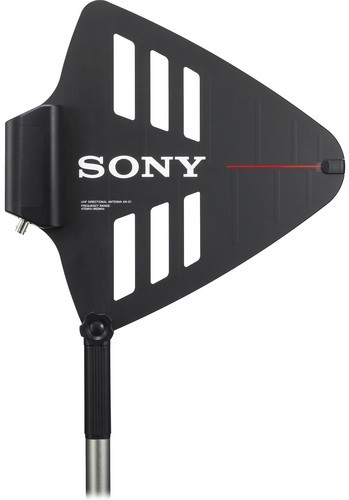

Active Directional Antenna. Provides 0 dB,10 dB or 18dB of gain. Various mounting configurations (mic stand, etc.). Two required for Diversity Tuner Operation. This AN-01 is for use with with UHF-TV channels 14 - 69.
• Active directional antenna, works with rack-mount tuner base models MB-X6 and MB-8N/9F, with WD-850/9F divider or with DWR-R01D digital wireless receiver
• Manages wide band operation 470MHz - 862MHz
• Receives DC power from receiver
• Adds 0 dB, 10 dB or 18 dB of gain. Compensates for cable loss/working distance
• Supplied with microphone stand attachment/pole grip
• The AN-01 is a uni-directional UHF Antenna, designed to be used with Sony analogue or digital wireless microphone systems.
• Two AN-01 should be used for diversity reception.
• A single AN-01 can receive a wide frequency range from 470 to 862MHz.
• Either DC 9V or 12V can be used for powering.
• Selectable booster gain (18 dB/10 dB/0 dB).
• The antenna is a log-periodic dipole array.
• It is supplied with a hand grip that supports screw mounting onto a microphone stand.
--
