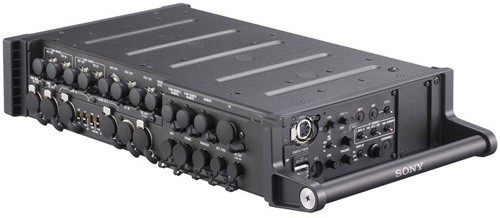

Sony HDFA-200

The HDFA-200 combines 1.5 Gigabit signals from two HDC-P1 or HDC-1500R cameras into a single 3G-capable fibre-optic transmission feed, reducing complexity in 3D live production. The device also incorporates a viewfinder output with multiple analytical and diagnostic modes - including several specifically for 3D use.

In 3D and conventional operation, the HDFA-200 minimises the cabling required for multiple cameras in live productions. It also integrates control and intercom data into the video feed, eliminating the need for any additional cables.

• 3G Fibre Optic Transmission
- The HDFA-200 combines two 1.5 Gigabit signals into a single 3G (approximately 3 Gigabit) fibre optic feed, when connected to a single CCU capable of 3G operation.

• Single feed from a Stereo Pair of HD cameras
- The HDFA-200 allows users to treat the two cameras in a 3D rig as if they were a single device, by combining the feed from each camera and sending it down a single transmission cable.

• Viewfinder output with multiple diagnostic/monitoring modes
- The HDFA-200 has a Viewfinder output, which has several ways to display the output from the two connected cameras including, Split, Mix and Difference modes, as well as a variety of other options designed to ease the process of rigging 3D camera pairs.

• Integrated control, data and power
- The HDFA-200 simplifies setup and reduces the need for ancillary cables by embedding control, intercom data, Genlock and power in a single cable. Two cameras in a stereo pair can be controlled simultaneously or separately for individual adjustments.

• Support for F35 3G output
- When used with the F35, the HDFA-200 provides full 1080/50P (4:2:2) or 1080/24P (4:4:4) over a single optical link. This is an extremely convenient, robust way to provide connectivity to the F35, which allows the camera to be used to its fullest potential as a high-end Super 35 Digital Cinematography device.

• Image inverter for use with 3D rigs
- The HDFA-200 has a built-in image inverter for compensating for camera orientation in 3D rigs.
