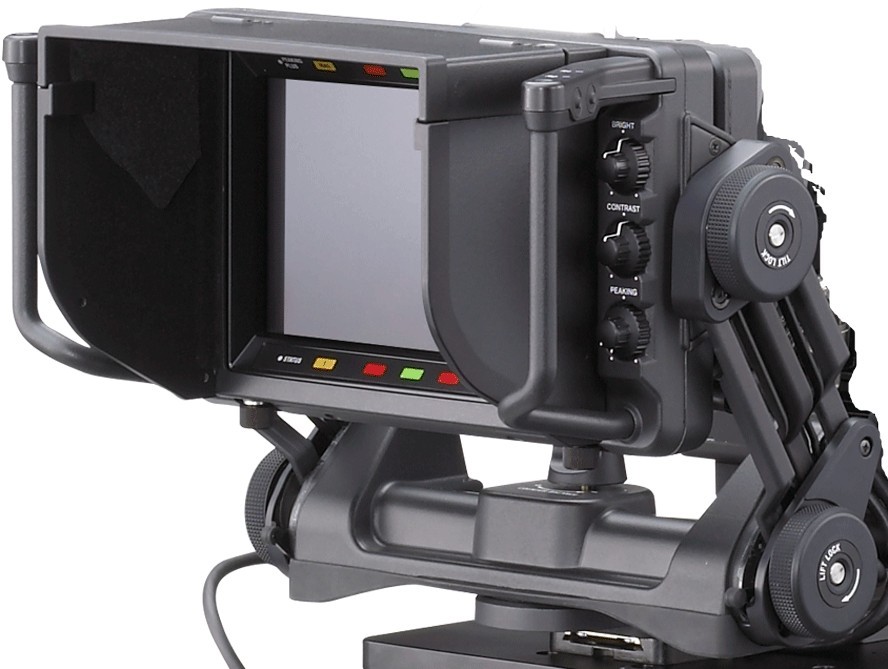

Sony HDVF-EL75

7.4-inch OLED Viewfinder for portable cameras.(Mfr # HDVF-EL75//U)

The 7.4-inch* HDVF-EL75 Viewfinder delivers strikingly high contrast, a wide dynamic range, and a fast response time thanks to the use of revolutionary Organic Light Emitting Diode (OLED) display technology.OLED panels help prevent light emission when reproducing dark shades, resulting in very deep blacks and a contrast ratio of more than 1,000,000:1. The lack of a backlight allows the device to control all phases of light emission from zero to peak brightness. The innovative technology delivers exceptional colour expression and detail without wasting power, so it is also an exceptional energy-saver.

High Definition acquisition requires extremely precise focusing, so OLED image quality delivers significant benefits by allowing the operator to accurately see contrast and colour levels when framing a shot. A wide viewing angle aids operator comfort while an extremely fast response time is particularly useful for applications such as sports coverage.

In addition, the HDVF-EL75 is packed with a wide range of sophisticated, user-friendly features such as Focus Assist, four assignable switches and a position-adjustment mechanism with unprecedented flexibility.



SIZE 164 ? 92 mm (6 1/2 ? 3 5/8 inches)
CONNECTORS Round 20-pin (x1)
WEIGHT 3.5 kg (7 lb 11 oz)
BRIGHTNESS 350 cd/m2
DISPLAY SIZE (VIEWING AREA) 7.4-inch (188 mm) colour OLED panel
COLOR TEMPERATURE D65
OPERATING TEMPERATURE ?20
POWER CONSUMPTION 19.5 W
POWER REQUIREMENT 10.5 V to 17.0 V DC (supplied by the camera)
PIXEL RESOLUTION 960 (H) ? 540 (V) ? 3 (RGB) 500 or more lines




• Standard Manufacturer's Warranty
• Indoor Hood
• Number Plate
• V-wedge shoe attachment
• Hexagonal wrench
• 4 socket head cap screws
• Cleaning cloth
• Connecting Cable
• Operation manual
