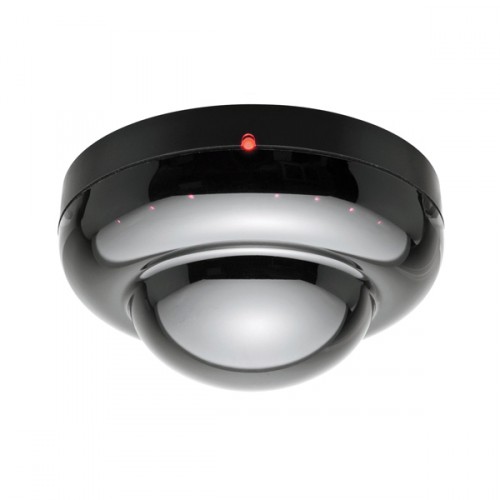

audio-technica ATCS-A60

ATCS-A60

ANTENNA FOR SECURE TRANSMISSION AND RECEIPT

In the digital era, the safeguarding of information is paramount. With the Audio-Technica infrared conference system your wireless signal will not leave the room; it is impossible to capture the broadcast from another building, for example. Compared to a UHF system that uses radio waves, which behave the same way as a radio station, transmitting over a broad area, the infrared system excels at protecting your information, as no leakage is possible.

The antenna of the transmitter / receiver is mounted on the ceiling or on the wall, using a coaxial connection cable BNC 75 ohm to the central control unit. The automatic gain during use makes the ATCS-A60 one of the best performing systems on the infrared market.

• Bespoke antenna for the Audio-Technica ATCS-60 infrared conferencing system
• Ability to activate automatically upon microphone detecting a voice
• Installs onto a ceiling or wall, with support included as standard
• The antenna connects to and is powered by a 75-ohm BNC coaxial cable (not included) that connects it to the ATCS-C60 control unit
• The scope of infrared rays is 5m
• An LED indicates the unit is in use
• The angle of transmission / reception is approximately 120 °

“SECURE YOUR INFORMATION”

By its nature, infrared technology is secure and is guaranteed to keep you and your information in the conference room only. No information can be received outside of the room.

“SELF-POWERED ANTENNA”

The ATCS-A60 infrared antenna is fed by a 24 volt DC, supplied by the central control unit to which it is connected via a BNC 75 Ohm coaxial cable. Using a 5C2V or higher spec cable is required.

“SYSTEM FLEXIBILITY”

The ATCS-A60 antennas can be installed and taken down very simply and quickly, without the inconvenience of visible wires and long installation times. It is the ideal choice for use in versatile environments.
