SONY HKSR-5802

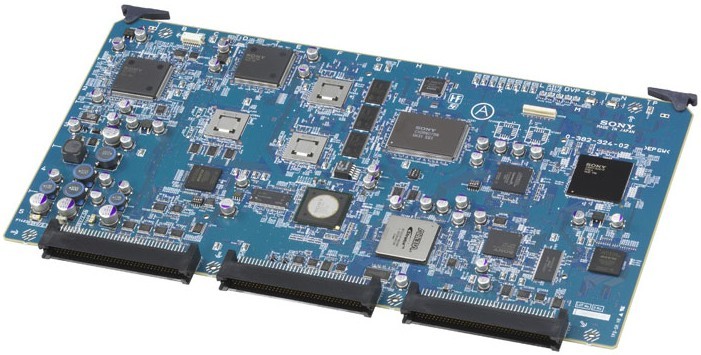

The HKSR-5802 is an optional board for the SRW-5800 and SRW-5100 decks, providing those VTRs with the ability to play back HDCAM and Digital Betacam tapes. With this board installed, the decks will also be able to upconvert to HD-SDI output as well as SD-SDI and analog composite output from Digital Betacam tape. Furthermore, even Digital Betcam tapes recorded in PAL (625/50) can be upconverted to 1080i/50 HD video. This board also supports Dynamic Tracking, with -1 to +2 times normal playback speed for HDCAM and -1 to +3 for Digital Betacam.

• HDCAM and Digital Betacam playback with Dynamic Tracking -1 to +2 (HDCAM), -1 to +3 (Digital Betacam)
• Up-conversion when playback Digital Betacam tapes
• HDCAM playback supported formats are 1080 23.98/24/25/29.97/30PsF and 50/59.94/60i
• Digital Betacam playback formats 525/59.94i (NTSC) and 625/50i (PAL)
