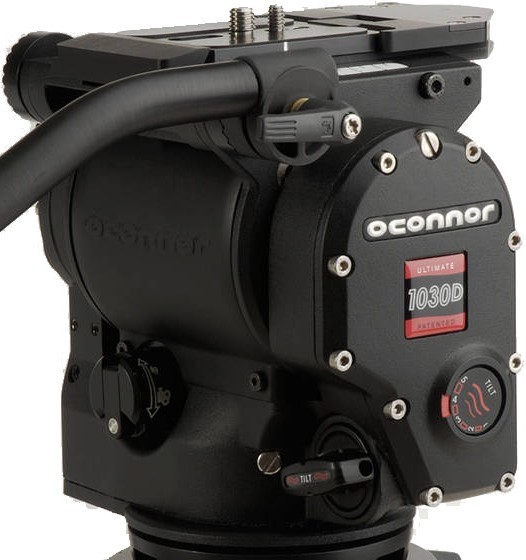

OConnor Ultimate 1030D Fluid Head Package

An updated replacement of the popular Ultimate 1030HD and HDs, the new line offers a sporty industrial design and a slew of features that have been borrowed from the larger OConnors to let cinematographers seamlessly transition from heavier to lighter payload camera setups. These include the stepless, ultra-smooth pan and tilt fluid drag specifically enhanced to provide ultimate control and stability for digital cinematography shooting. The patented OConnor Sinusoidal Counterbalance system provides true, accurate balance at any point in the tilt range. Users will appreciate that the system Counterbalances down to zero, a handy advantage since there is a trend to lighter weight cameras. For today's versatile shooter, the transition from larger to smaller payloads has never been easier. And most importantly, the famous OConnor feel, remains the same regardless of payload.

The new ergonomic crank-style counterbalance control simply pulls out of the rear of the head. Plus the Action Brakes for pan and tilt unlock through a single-handed squeeze. And the trusted OConnor drag system ensures constant control.

The OConnor 1030D supports a payload up to 30 lbs. (13.6 kg) at a 6” (15cm) center of gravity and a +/-90° tilt range. The 1030Ds supports up to 41 lbs. (18.6 kg) at 6” (15cm) COG with a +/- 60° tilt range.

Like the rest of the OConnor Ultimate heads, the 1030D and Ds have interchangeable bases (e.g. 150mm or Mitchell for the 1030), accept the same front box mount as larger heads and offer full compatibility with other OConnor 1030 accessories. OConnor's new 30L carbon fiber tripod system offers an expanded payload range in a lighter weight package which makes it the perfect companion for the 1030D and 1030Ds.

Key Features:

• Payload: 30 lb @ 6" C.O.G.
• Counterbalance Range: 0 to Max Payload
• Sideload Camera Platform
• Sliding Balance Plate
• +/- 90° Tilt Range
• Independent Stepless Tilt/Pan Drag
• Interchangeable 100mm Ball Base
• Integrated Illuminated Bubble Level
• L/R Pan Handle Rosettes
• Front Box Mounting Points
