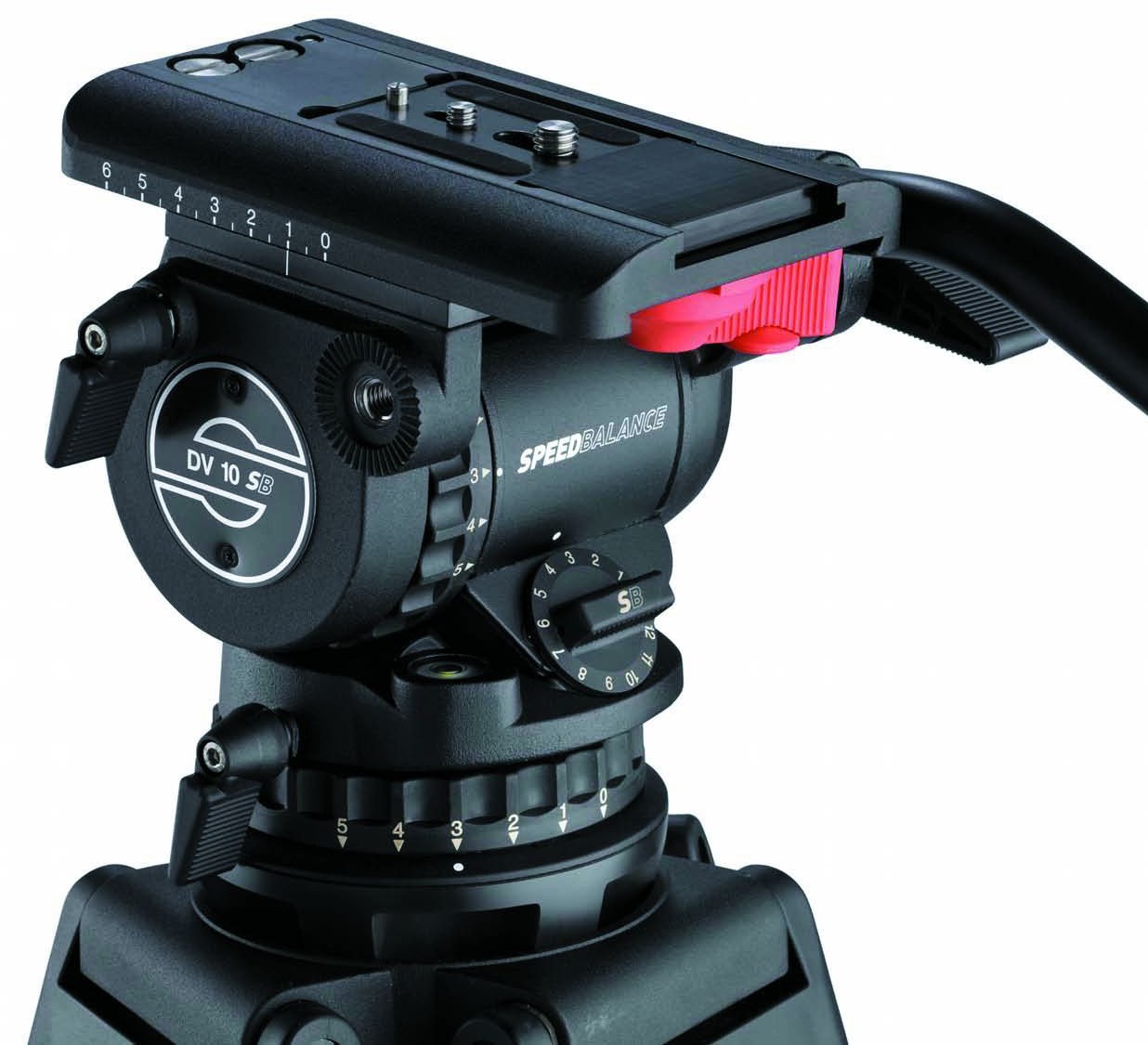

Sachtler (DV 10 SB) Fluid Head

SPEEDBALANCE
The new DV 10 SB fluid head is Sachtler’s smallest 100mm solution. It provides a 12-step counterbalance as well as five horizontal and five vertical grades of drag (+0). The Speedbalance technology enables fast and smooth adjustments, while the head’s payload range from 1 to 12 kg (2-26 lbs) and tilt range of +90° to -75° make the DV 10 SB the ideal tool for diverse shooting conditions. The fluid head is equipped with a compartment for spare camera screws (pin, 1/4”, 3/8”), sparing the operator from tedious searching on the set.

The DV 10 SB operates with a DV 100 pan bar. Other useful features include the integrated flat base fitting and a self-illuminating Touch Bubble.

The fluid head DV 10 SB is delivered with the Touch & Go® plate 16 (Code No. 1064). It comes with a 1/4” screw and 3/8” screw. Spare camera screws (1/4”/ 3/8”) and a pin screw are stored in the balance plate. The pin screw fits in the center hole of the camera plate. Thus a pin/1/4” screw connection can be achieved if your camera requires this connection.

If your camera remains front- or back heavy after going through the necessary centring procedure you may solve this by using the C.O.G plate (Code No. 1063). This plate offers a removed position.The C.O.G. plate can be mounted to either the front or the back. It cannot be operated with pin and 1/4” screw.
