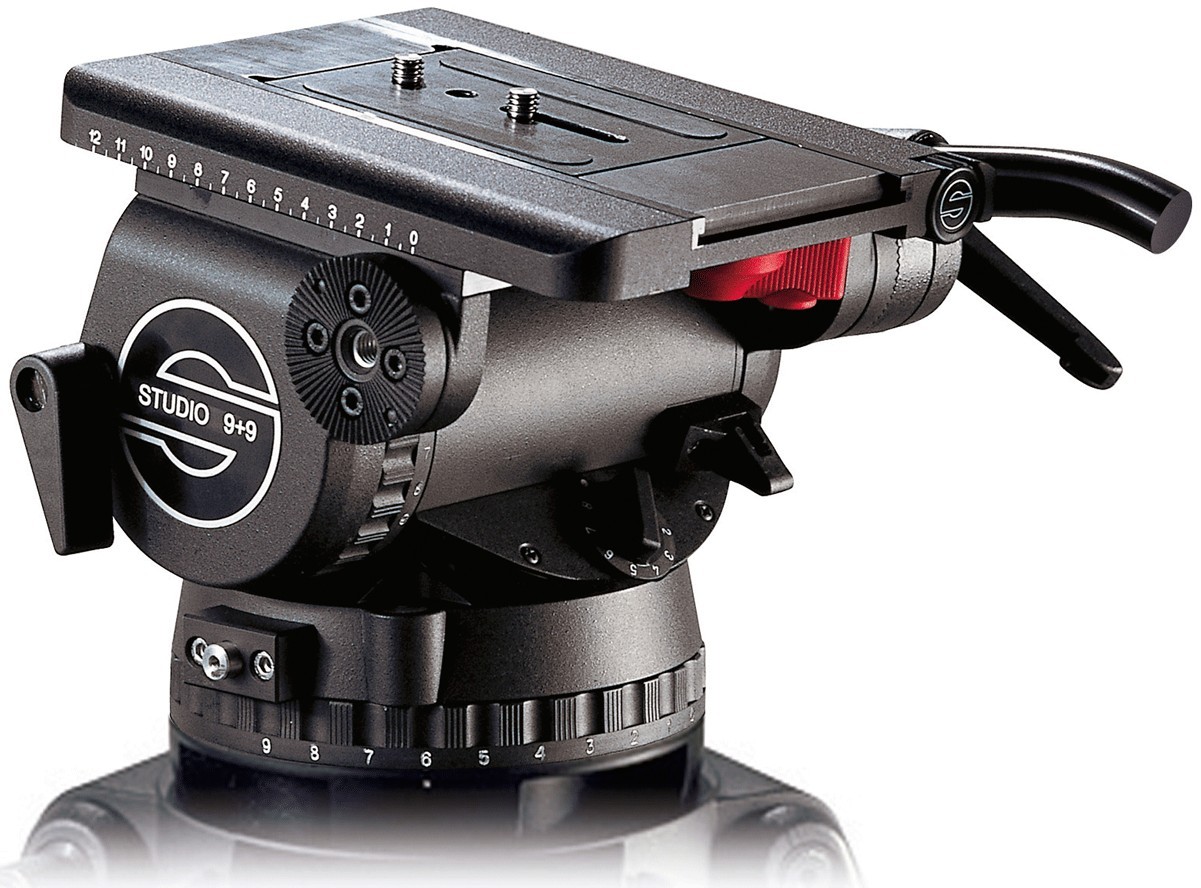

Sachtler (Studio 9+9) Professional Fluid Head (150mm Ball Base)

Professional Fluid Heads for OB / Studio applications. Studio 9+9 Mfr # 6002

With the Studio 9+9, Sachtler’s unique, patented damping system has been significantly extended. As the name indicates, there are nine levels of extra-powerful drag, ensuring perfect counterbalance in 18 steps. Levels 2 to 7 are fairly fine, while the jump from levels 7 to 9 is much greater. The fluid head also boasts a sliding plate, which has an integrated spindle drive. Centering the camera weight is now fast and easy – just slide the plate quickly into place, and fine tune with the spindle drive if required. The counterbalance system combines the renowned Sachtler system with a dial knob system, compensating perfectly for any load up to 55 kg / 121 lb. In addition, the Studio 9+9 has a viewfinder extension bracket and front box connections as standard features.




PAN RANGE / ANGLE 1, telescopic, Type Movie
WEIGHT 8.4 kg / 18.5 lbs
SLIDING RANGE 115 mm / 4.5 in
CAMERA PLATE Touch & Go
TILT RANGE / ANGLE +90/-60 degrees
COUNTERBALANCE in 18 steps
PAYLOAD 8 - 55 kg / 18 - 121 lbs




Standard Manufacturer's Warranty
