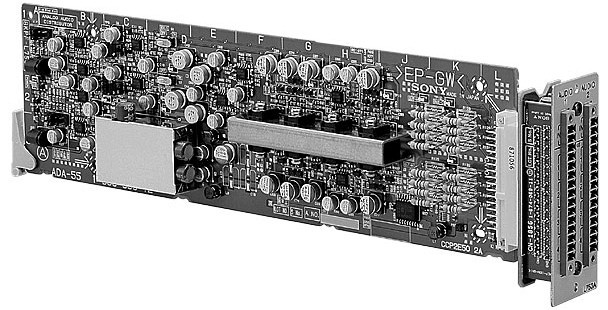

Sony BKPF-L753A
Analogue Audio Distribution Board
The BKPF-L753A analog audio distribution board distributes an analog stereo audio signal to four outputs or an analog monaural audio signal to eight outputs.
A gain control allows the input reference level to be varied between -4 dBm and +12 dBm.
Phoenix type connector for each distribution block carries its input and output signals.
The BKPF-L Series function boards install in the PFV-L Series Interface Units in any combination with other BKPF-L Series function boards.
• Low noise.
• Gain control function.
| DIMENSION (HXWXD) | Main Board (WxH): 10.75 x 3.125" (26.7 x 7.7cm) |
|---|---|
| WEIGHT | 0.56 lbs (0.26kg) |
| DIMENSION (WXDXH) | Connector Panel (WxH): 1.31 x 3.325" (3.3 x 8.5cm) |
| POWER REQUIREMENT | 5 VDC (Supplied from the PFV-L Series InterfaceUnit) |
