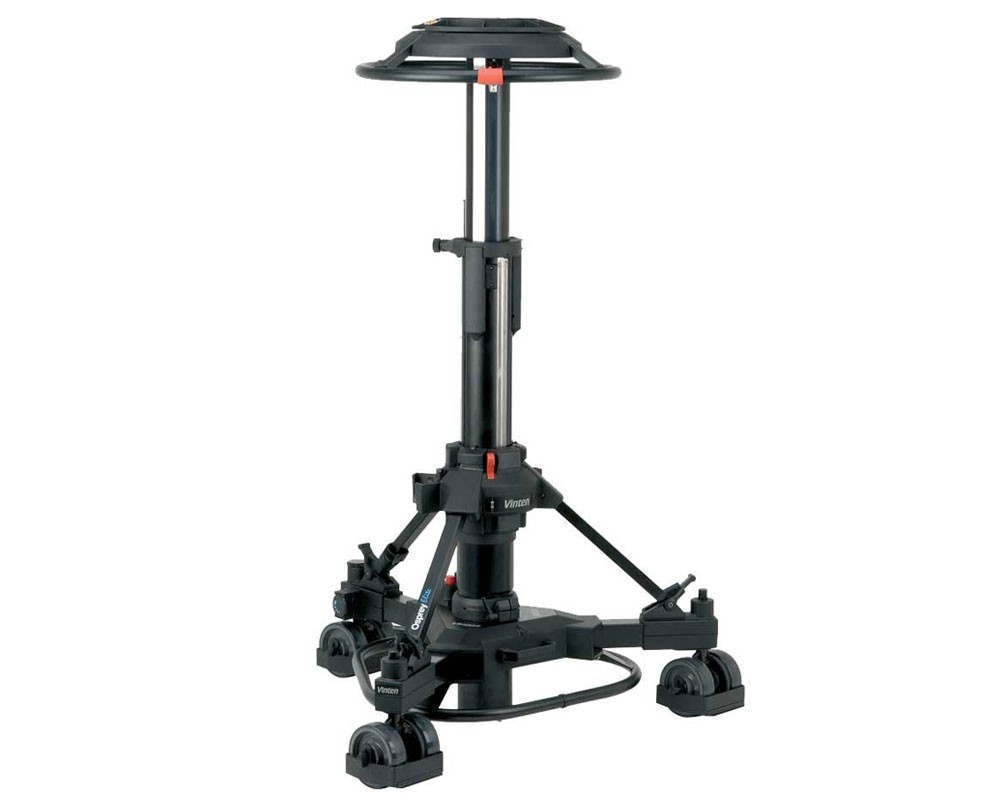

Vinten (3574-3B) Osprey Elite Pedestal (OB)

Designed to support the latest range of digital, portable and full facility cameras for both studio and OB productions. Osprey Elite Pedestal (OB). (Mfr # 3574-3B)

VINTEN

The Osprey Elite is extremely versatile, designed to support the latest range of digital, portable and full facility cameras for both studio and OB productions. The two-stage column offers on-shot movement from a minimum height of 66 cm / 26" to a maximum height of 143 cm / 56" and features full crab and steer facilities controlled from a central steering ring.

The studio version of the Osprey Elite includes cable guards, whilst the larger wheels of the OB version offer greater ground clearance. Both versions have an exceptional combination of lightness and structural integrity giving maximum stability whilst still allowing the column and dolly base to fold for easy transportation.

The Osprey Elite is also ideal for use on track when combined with Vinten’s Tracking Skid. Other optional accessories include a portable hand pump to counterbalance the pneumatic system, a large steering ring and OB wheel cable guards.

• Extensive on-shot capability
• Removable steering and kick rings
• Crab and steer facility
• Folds for easy transportation




TRANSIT WIDTH 80 cm/31.5" / Narrow: 72.3 cm / 28.5"
WEIGHT 48.7 kg / 107.4 lbs
PAYLOAD 75 kg / 165 lbs (maximum capacity includes trim weights)
HEIGHT 68.5 to 145.5 cm / 27 to 57.3"
GROUND CLEARANCE 3.45 cm / 1.2"
STEERING RING DIAMETER Detachable: 53.3 cm / 21"
TRACKING WIDTH 97 cm / 38.2"
WHEEL LOCK Yes
TRIM WEIGHTS 3.5 kg / 7.7 lbs
WHEEL DIAMETER 16 cm / 6.3"
ON-SHOT STROKE 77 cm / 30.3"






Standard Manufacturer's Warranty
