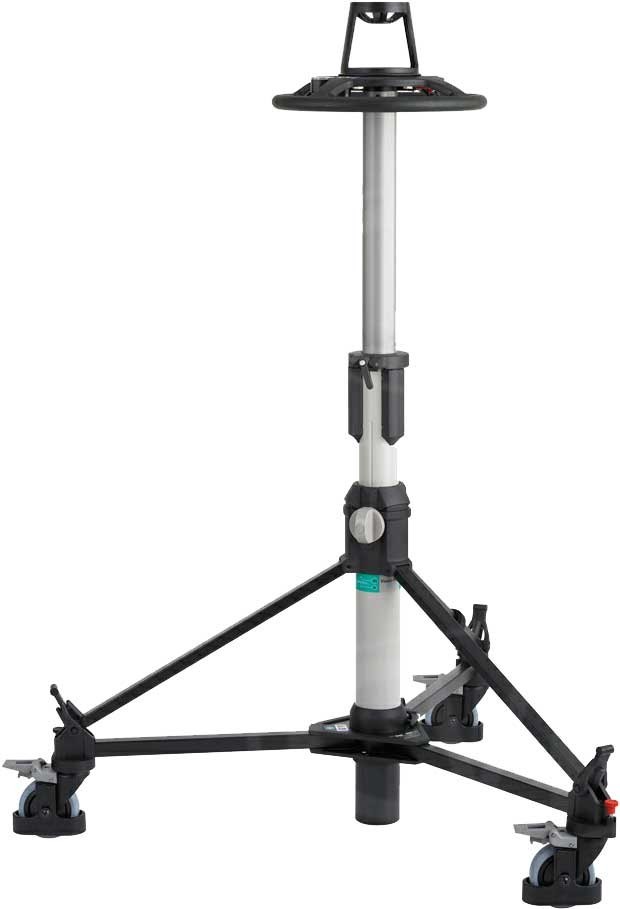

Vinten (V3951-0001) Vision Ped Plus
The Vision Ped Plus is ideal for applications where simplicity of operation, portability and reliability are key requirements.(Mfr # V3951-0001)
The Vision Ped Plus is ideal for all small production studios and applications where simplicity of operation, portability and reliability are key requirements. The pedestal has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. In addition the Vision Ped Plus includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation.
With a maximum payload of 30 kg / 66 lbs, a height range of 75 cm to 160 cm / 29.5 to 63" and an on-shot stroke of 41 cm / 16.1", the Vision Ped Plus is a highly functional and competitive pedestal; the perfect solution for situations where professional framing and creative movement is essential.
• Portable and reliable
• Detachable skid for easy storage and transportation
• Integral pressure gauge for easy set-up
TRANSIT WIDTH | 73 cm / 28.7 |
---|---|
WEIGHT | 13.7 kg / 30.2 lbs |
PAYLOAD | 30 kg / 66 lbs |
HEIGHT | 75 to 160 cm / 29.5 to 63" |
GROUND CLEARANCE | 1.4 cm / 0.6" |
STEERING RING DIAMETER | 38 cm / 15" |
TRACKING WIDTH | 69 cm / 27" |
WHEEL LOCK | Yes |
WHEEL DIAMETER | 10 cm / 4" |
ON-SHOT STROKE | 41 cm / 16.1" |
