Vinten (V4080-0001) Vector 750i Pan and Tilt Head

The new Vector 750i is the first encoded pantographic head from Vinten, providing the perfect solution for virtual reality in both studio and outside broadcast for operators who love the feel of the Vector 750.

The pan and tilt head incorporates a new Intelligence Module allowing semi automatic set-up, slide plate tracking and kinematic compensation. When the Vector 750i is combined with the Vinten Radamec VRI box [see below] these features provide the most precise positioning data possible from a pantographic head, to ensure stable and accurate placement of virtual graphics into the live environment.

The Vector 750i maintains all of the market leading functionality of the Vector 750, making this pan and tilt head an ideal choice for large camera combinations where virtual reality is required – now or in the future.

• The market leading Vector 750 with virtual reality capability
• Unprecedented positional accuracy for an encoded pantographic head
• Unique slide plate and balance mechanism position measurement for mid-broadcast camera adjustments

Specifications:
• Platform Adjustment: +5.5 to -12.5 cm / +2.2 to -4.9"
• Pan Bar: Single telescopic
• Camera Fixing: EFP Quickfit Automatic Adaptor [3460-3]
• Levelling Bubble: Illuminated
• Drag Knobs: Calibrated
• Base Fixing: 4 bolt flat with Quickfix groove

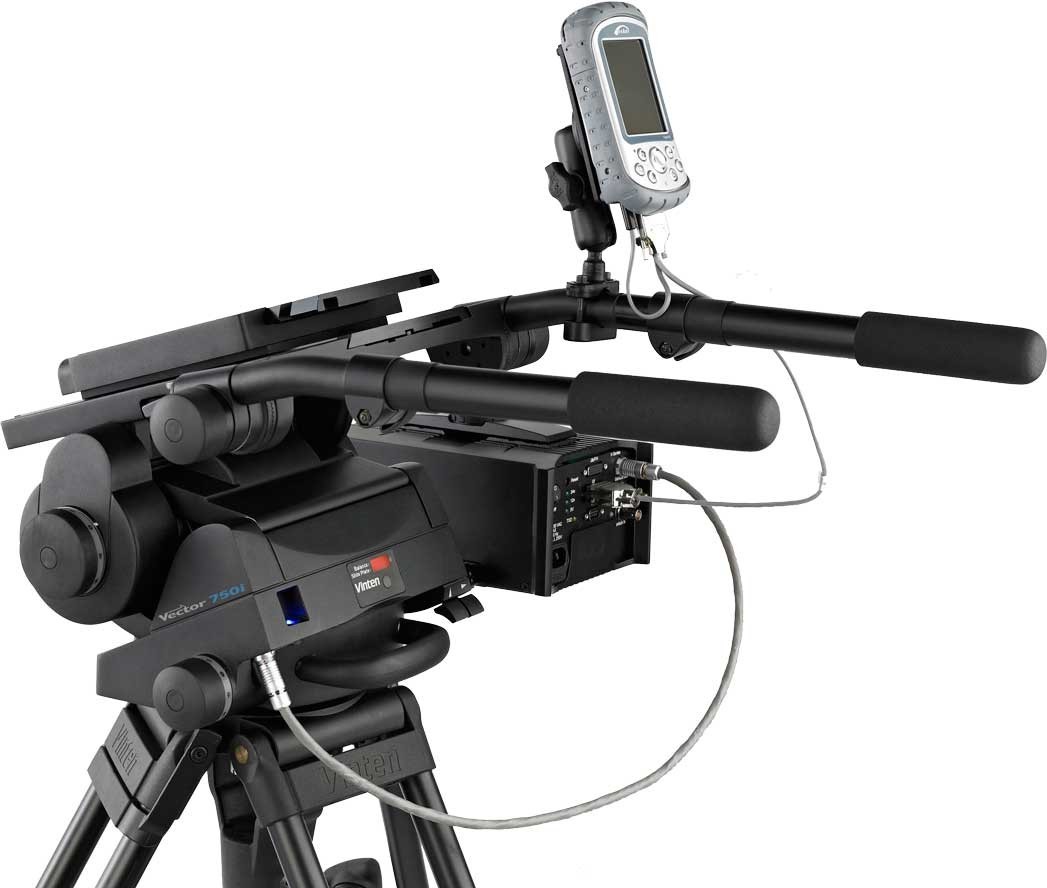

[please note the VRI box, PDA and cables shown in the photo are not supplied with the head - see below]

VIRTUAL REALITY INTERFACE BOX
The VRI box enables the use of the Vector 430i, 750i, and 950i pan and tilt heads in virtual reality applications.  The box processes the positional data from the ehad encoders and also offers a direct interface to lenses with encoder outputs (or bolt on lens encoders) to provide a single data stream to the graphics rendering system.  Each VRI box is supplied with mounting brackets, GUI, and head interface cable.

VRI Box
Model No: V4083-0001
Power In: 110-250v AC or 9-28v DC, power consumption 80 w
Power Out: 12v DC @ 1A / 24v DC @1A
I/O: Genlock ( 1 in, 2 out), Devicelink.i, Lens encoders (Quadrature)
Tracking Data Output: RS422, Radamec D1 packet
Accessories: Vinten Inclinometer for perfect placement of OB graphics [V4083-0003] PDA based GUI (for set-up and control) [V4014-0002]
