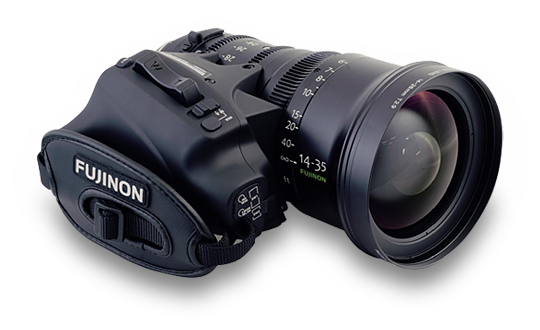

FUJINON ZK2.5x14

14-35mm Cabrio / T2.9 (ZK2.5x14)

Designed using the latest proprietary optical simulation software, the PL 14-35 mm wide angle lens offers exceptional optical performance in the center of the image and in the corners of the frame. The digital servo’s 16-bit encoding assures operators that all lens data output—including the position of the zoom, iris, and focus—is extremely accurate. The PL 14-35mm lens supports Lens Data System (LDS) and /i metadata formats, and can be controlled using cinema industry standard wireless controllers as well as existing FUJINON wired and wireless units.

The PL 14-35mm Cabrio lens has a detachable digital servo drive. The Cabrio can be used as a self-contained ENG-style lens or cine style lens.

  • Lightweight and comfortable to use with today’s smaller 4K cameras.
  • For shooters looking for a lightweight zoom that can be used as a handheld, capturing wide angles in tight spaces, it’s ideal.
  • Covers 31.5mm sensor size on a digital cinema style camera.
  • Nine-blade iris creates the most natural-looking imagery possible.
  • With Detachable Digital Drive Unit
  • Flange Focal Distance Adjustment
  • LDS & /i Compatible
  • Lens Hood Optional - Accepts M114 Filter

WEIGHT 2.9 kg
ZOOM RATIO 2.5 ×
DIMENSIONS 114 × 231 mm (DxL)
FOCAL LENGTH 14 - 35 mm
CAMERA MOUNT PL Mount
MAXIMUM PHOTOMETRIC APERTURE T-NO. 1 : 2.9f
SENSOR SIZE 27.45 x 15.44 mm




  • Standard Manufacturer's Warranty
  • Protection Filter (1)
