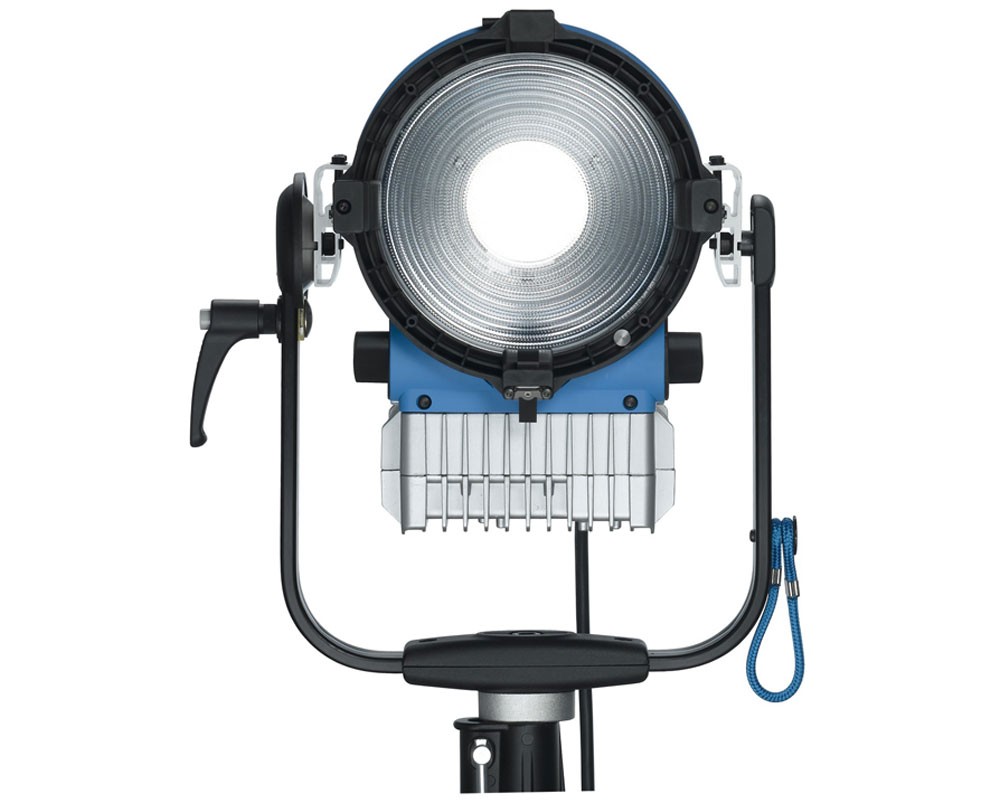

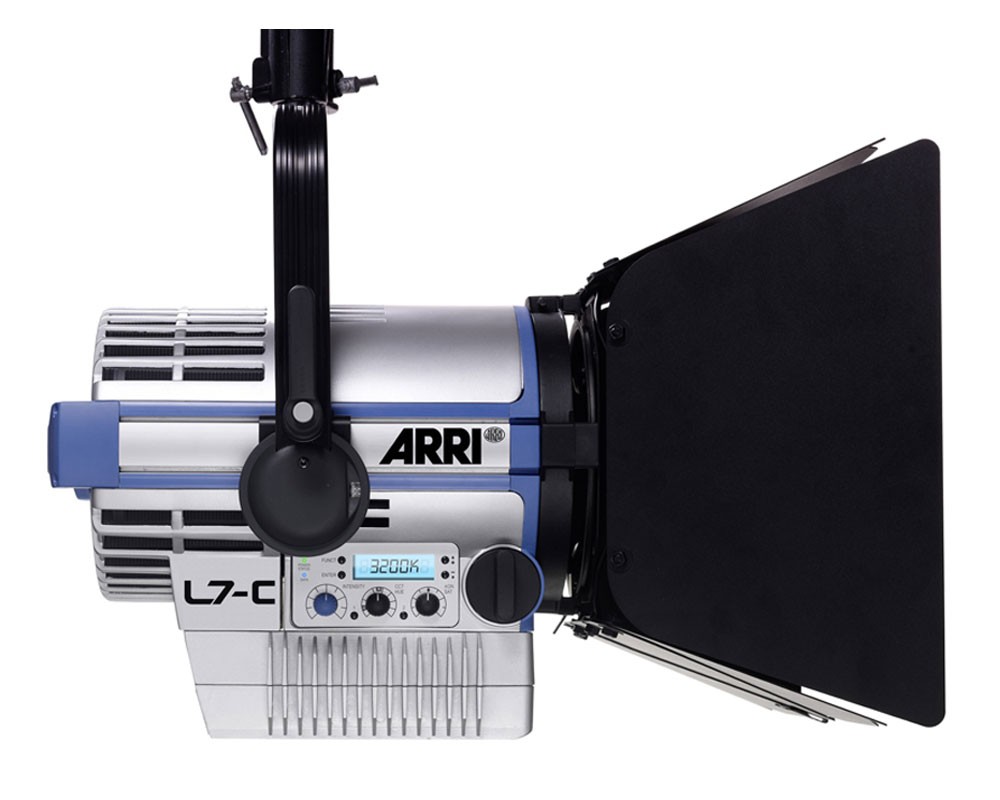

Arri L7-C LED Fresnel

The Arri L-Series is an unique LED fixture which truly incorporates Fresnel characteristics such as light disbursement from spot to flood all the while providing smooth & homogeneous light fields.

ARRI'S L7-C Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors. Available in both Hybrid and Active Cooling.

LIGHT ENGINE 2

L7-Cs with the new LE2 are 25% brighter than previous L7-C versions.

STAND-MOUNT

versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

HANGING

versions include the following base configuration: 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

POLE-OPERATED

versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

Key Features:

• L7-Cs with Light Engine 2 are 25% brighter than previous versions
• Fully Tuneable from 2,800 - 10,000K
• Plus/Minusgreen correction
• Vibrate Color Selection (RGB+W Color Gamut)
• Hue and Saturation Control
• High Color Rendering
• Low Power Consumption (160W Nominal)
• Fully Dimmable
• True Fresnel Lens Light Characteristics
• Onboard DMX In and Out
• RDM Implementation
• USB Mini Connection for Firmware Updates
• Available in Blue/Silver and Black
• Fan Mode Selection

Available Models:

L1.0003645 L7-C, LE 2, Manual, Blue/Silver, 7 m Edsion Cable
L1.0003647 L7-C, LE 2, Manual, Blue/Silver, 3 m Schuko Cable
L1.0003648 L7-C, LE 2, Pole Op, Blue/Silver, 1.5 m Bare Ends Cable
L1.0003650 L7-C, LE 2, Pole Op, Black, 1.5 m Bare Ends Cable
L1.0003646 L7-C, LE 2, Hanging, Blue/Silver, 1.5 m Bare Ends Cable
L1.0003649 L7-C, LE 2, Hanging, Black, 1.5 m Bare Ends Cable

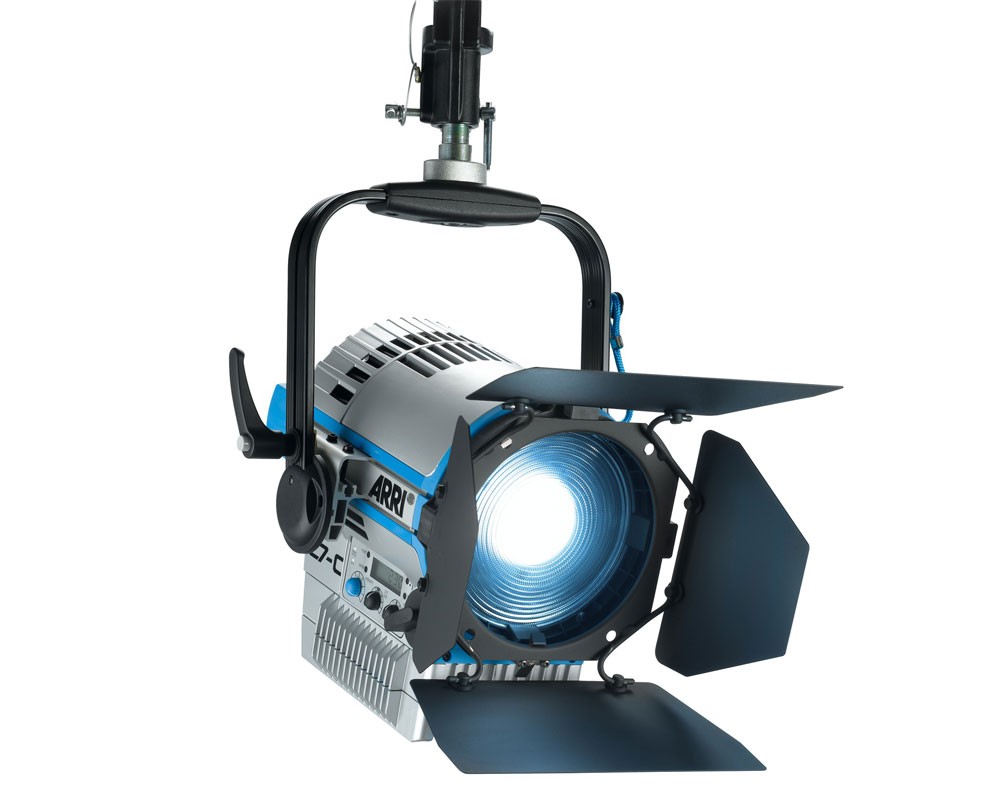

Note: Barndoors are not included with the L5 and have to be ordered separately.
