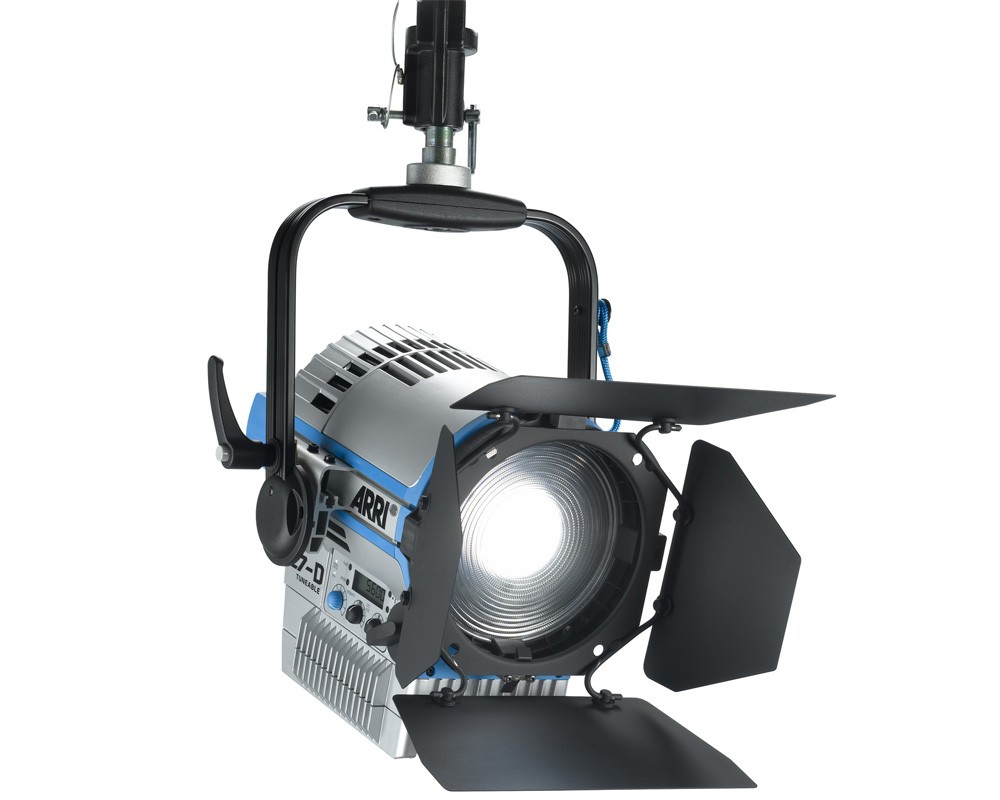

Arri L7-DT LED Fresnel

ARRI L7-DT daylight tuneable allows for fine-tuning of the daylight color temperature from 5,000 K - 6,500 K with increased brightness over the L7-C, and is particularly suited to applications requiring precise matching to daylight balanced light sources.

Available in both Hybrid and Active Cooling.

HYBRID

Allows for cooling both passively (without a fan) and actively (with a fan). This unit is larger and heavier than the Active version but can run completely silently if needed.

ACTIVE

Allows for only active cooling (with a fan). This unit is smaller and lighter than the Hybrid version but cannot run passively (without the fan).

HANGING

Versions include the following base configuration: 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

POLE-OPERATED

Versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28 mm Spigot (Junior Pin), 1,5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

STAND-MOUNT

Versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

Key Features:

• Fully Tuneable from 5,000 - 6,500 K
• Plus/Minusgreen correction
• More than 30% Brighter than L7-C at 5,600 K
• Perfect for TV studios switching to daylight color temperatures
• High Color Rendering
• Low Power Consumption (180 W Nominal)
• Fully Dimmable
• True Fresnel Lens Light Characteristics
• Onboard DMX In and Out
• RDM Implementation
• USB Mini Connection for Firmware Updates
• Hybrid or Active Cooling Options
• Available in Blue/Silver and Black
• Fan Mode Selection

Available Models:

L1.31530DC L7-DT Active, Hanging, Blue/Silver, Bare Ends
L1.31535DC L7-DT Active, Hanging, Black, Bare Ends
L1.31530DR L7-DT Active, Pole Operated, Blue/Silver, Bare Ends
L1.31535DR L7-DT Active, Pole Operated, Black, Bare Ends
L1.31530DD L7-DT Active, Stand-Mount, Blue/Silver, 3 m Cable, Schuko Connector
L1.31530DA L7-DT Active, Stand-Mount, Blue/Silver, 7 m Cable, Edison (American) Connector
L1.31330DC L7-DT Hybrid, Hanging, Blue/Silver, Bare Ends
L1.31335DC L7-DT Hybrid, Hanging, Black, Bare Ends
L1.31330DR L7-DT Hybrid, Pole Operated, Blue/Silver, Bare Ends
L1.31335DR L7-DT Hybrid, Pole Operated, Black, Bare Ends
L1.31330DD L7-DT Hybrid, Stand-Mount, Blue/Silver, 3 m Cable, Schuko Connector
L1.31330DA L7-DT Hybrid, Stand-Mount, Blue/Silver, 7 m Cable, Edison (American) Connector

Note: Barndoors are not included with the L5 and have to be ordered separately.
