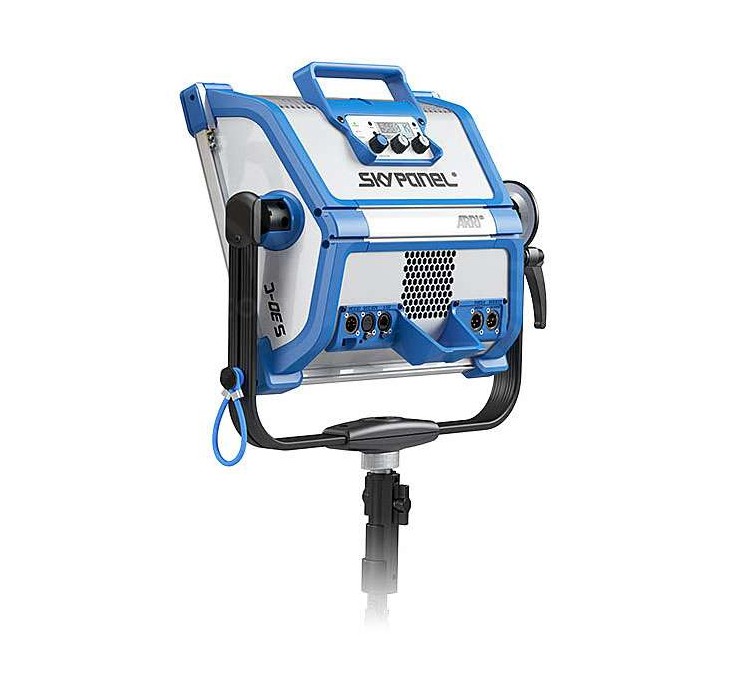

Arri SkyPanel S30-C LED Softlight

Supported by a pole operated aluminum yoke, the panel's surface area measures 14 x 11.8". Color temperature from 2,800-10,000K, CRI: >95, TLCI: >91 & with 0-100% Dimming, DMX Control. (MFR # L0.0007716)

The ARRI SkyPanel is not only an extremely versatile LED soft light but also compact, fully tuneable and delivering light of unsurpassed power and quality. Supported by a pole operated aluminum yoke, the panel's surface area measures 14 x 11.8" which is making SkyPanel an ideal portable, on-the-go light source for mobile applications. Output is controlled via interchangeable thermoplastic diffusers that range from Standard to Lite to Heavy to soften the light and wrap its output around your subject and the SkyPanel S30-C outputs the equivalent of a 1,000W tungsten soft light while drawing a maximum of only 240W.

Using technology originally designed for the L7-C Fresnel, the SkyPanel S30-C is fully color "tuneable" allowing output of a warm 2,800K to icy blue 10,000K light and also uses the full RGB+W color gamut with hue and saturation control for fine adjustments. Full minusgreen to full plusgreen is also possible, so if you're lighting for blue or greenscreen, you can simply dial your color chosen in. This wide degree of control is responsible for a very high CRI of 95 and a rating of 91 with the newer TLCI standard.

Key Features:

  • Pole Operated Yoke
  • Panel Surface Area: 14 x 11.8"
  • 110° Beam Spread
  • Color Temperature from 2,800-10,000K
  • Full Gamut Color Mixing
  • Hue and Saturation Control
  • Full Minus to Full Plusgreen
  • 0-100% Dimming, DMX Control
  • CRI: >95, TLCI: >91
  • Multi-Voltage AC, Optional Battery Power



WEIGHT 19.4 lb / 8.8 kg
OPTICAL SYSTEM Soft diffusion panel
COLOR TEMPERATURE +/- 100K (nominal)
POWER SUPPLY Input Range 90-250 VAC, 50-60 Hz -- Output Range 48 VDC
DIMENSIONS Panel: 15.6 x 13.5 x 5.2" / 39.7 x 34.2 x 13.3 cm Panel with yoke: 20.0 x 22 x 5.2" / 50.7 x 55.9 x 13.3 cm
MOUNTING Combo pin baby 5/8" (16 mm) and junior 1 1/8" (28 mm) Aluminum yoke; +/- 90° tilt Pole operation for pan and tilt
BEAM ANGLE 110° (half peak angle)
OPERATING ENVIRONMENT -4 to +113°F / -20 to +45°C






  • Standard Diffusion Panel
  • Power Supply Unit
  • Power Supply Unit Rail Mount
  • Standard Manufacturer's Warranty
