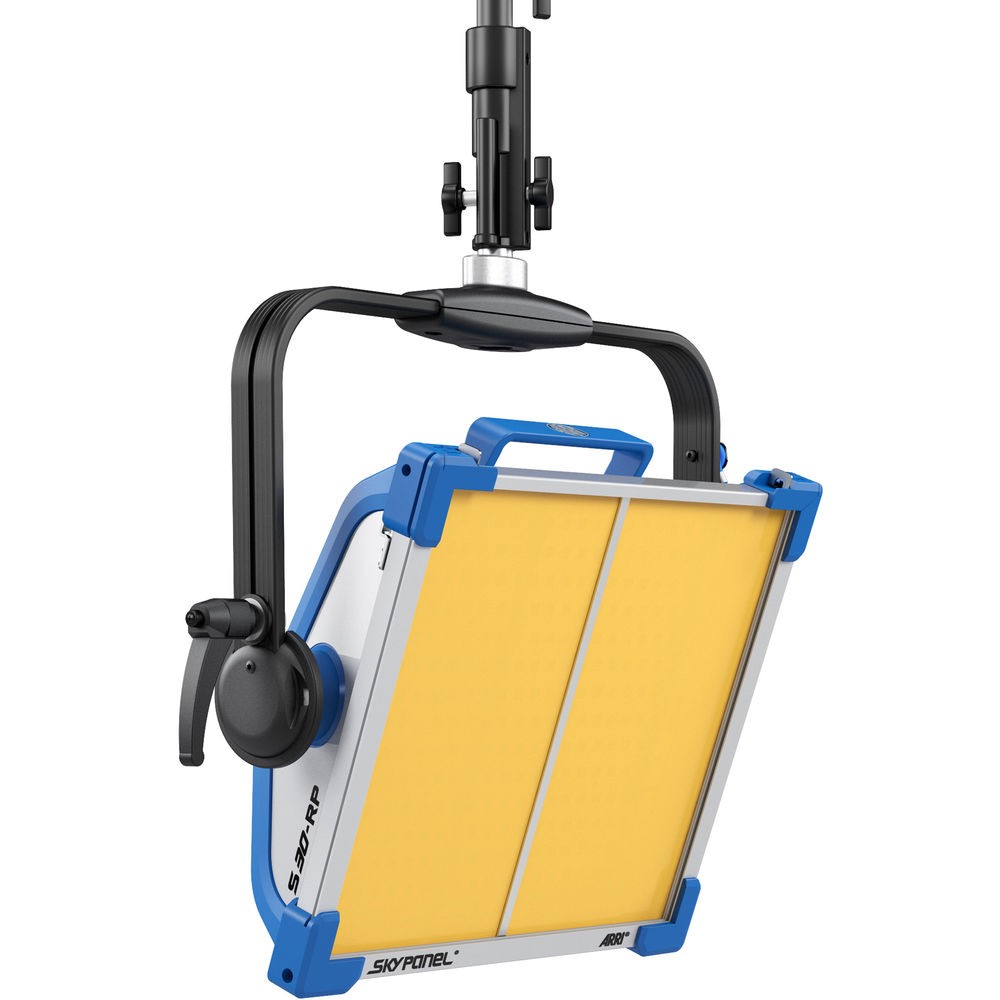

Arri SkyPanel S30-RP Tungsten LED Remote Phosphor Softlight (Blue/Silver, Edison)

S30-RP Tungsten LED Remote Phosphor Softlight (Blue/Silver, Edison). (MFR # L0.0007717)

ARRI blue/silver SkyPanel S30-RP Tungsten LED Remote Phosphor Softlight supported by a manual aluminum yoke, the panel's surface area measures 14 x 11.8", making it an ideal portable, on-the-go light source for mobile applications. Output is controlled via interchangeable phosphor panels to achieve a specific Kelvin temperature instead of adding phosphors to blue LEDs. The powerful native LEDs then excite the phosphor panel that's mounted like a filter in front of the fixture. This method not only uses less electronics resulting in a lower price point, but delivers a color rendition that approaches current definitions of "perfection" and is 10% brighter than its color tuneable S30-C counterpart, which has an output equivalent to a 1,000W tungsten softlight. Both versions of the light draw only 240W.

Key Features:

  • Manual Yoke
  • Panel Surface Area: 14 x 11.8"
  • 110° Beam Spread
  • 3,200K Remote Phosphor Panel
  • 0-100% Dimming, DMX Control
  • CRI: >98
  • Separate Multi-Voltage AC Power Supply
  • Optional Battery Power
  • Firmware Updates via USB
  • Up to 50,000 Hour Lamp Life



WEIGHT 17.2 lb / 7.8 kg
OPTICAL SYSTEM Remote phosphor panel
COLOR TEMPERATURE +/- 200K (nominal)
DIMENSIONS Panel: 15.6 x 13.5 x 5.2" / 39.7 x 34.2 x 13.3 cm Panel with yoke: 20.0 x 22 x 5.2" / 50.7 x 55.9 x 13.3 cm
MOUNTING Combo pin baby 5/8" (16 mm) and junior 1 1/8" (28 mm) Aluminum yoke; +/- 90° tilt
BEAM ANGLE 110° (half peak angle)
CRI >98 (with included 3,200K panel)
OPERATING ENVIRONMENT -4 to +113°F / -20 to +45°C






  • 3,200K Remote Phosphor Panel
  • Power Supply Unit
  • Power Supply Unit Rail Mount
  • Standard Manufacturer's Warranty
