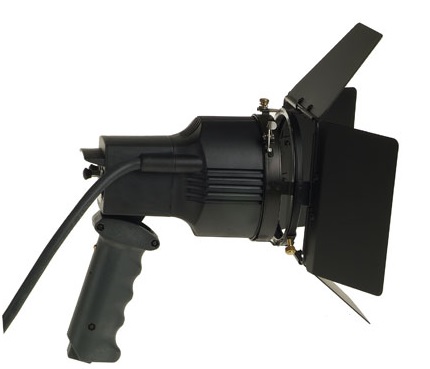

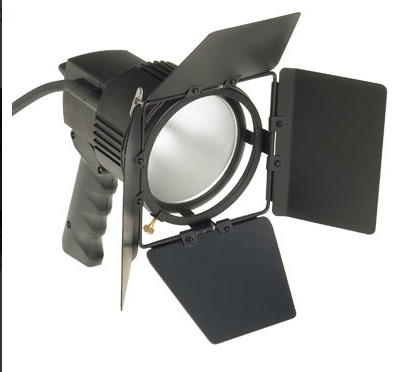

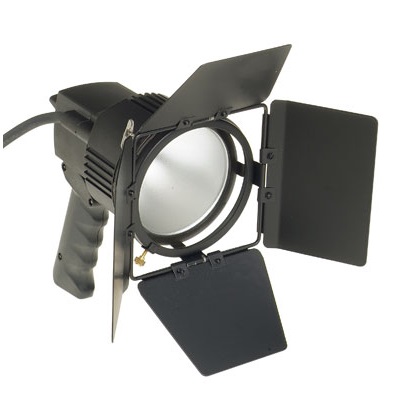

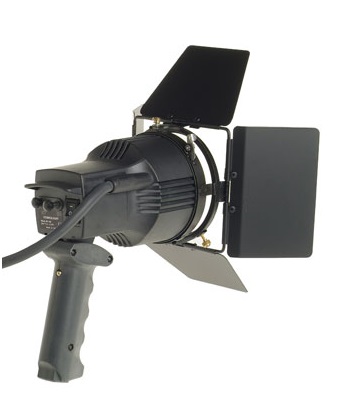

COSMOLIGHT RC 40

MAIN FEATURES

• It accepts 30, 50, 100 and 250W lamps.
• Made of thermoplastic material it is extremely light and compact with a pleasant design.
• It features an innovative adjustable and extractable ergonomic handgrip with an integrated camera mount which serves as a great tool to lighting professionals that can use it on camera, on stand and even by hand.
• The two sliding buttons for spot/flood beam variation and the on/off switch positioned at the back of the unit have been designed for quick and smooth one hand operation.
• The properly designed reflector ensures a high degree of reflectivity and produces a bright, wide, smooth, and even field of illumination.
• It cames complete with the accessory holder.
• Available in kit complete with accessories and battery.

TECHNICAL DATA

• Thermoplastic housing.
• Sanded and treated aluminium reflector.
• Spot/flood focusing via two sliding buttons.
• Ergonomic handgrip with 3/8” thread female + shoe for camera mount.
• 2 mt fire resistant cable.
• On-board switch.
• Supply voltage 12V, 30V.
• Lamp base GX 6,35.
• XLR 4 M connector, Power tap 2-pin on request.
• Correlated color temperature 3200K.
• IP 20.
• CE compliant.
• Weight 0,600 kg.
• Packing dimensions 27x21xh17 cm

ACCESSORIES

	RC 42 Four-leaf barndoor gr 145
	RC 41 Dichroic filter gr 40
	RC 43 Diffusion glass gr 40
	RC 44 Safety glass gr 40
	RC 45 Extra slide for screw base gr 15

BATTERIES

RC 24 - Battery pack 12V-7Ah, Ni-Cd, charger included

RC 26 - Battery pack 30V-7Ah, Ni-Cd, charger included

CASES

RC 31 - Case in ABS for 12V battery pack kit

RC 33 - Hard case for 30V battery pack kit

TECHNICAL DRAWING

PHOTOMETRIC DATA

LAMPS

BASE GX 6,35 - 3200K
MOD.		WATT	ANSI	LIF
RC 40		30W - 12V
		50W - 12V
		100W - 12V
		250W - 30V	EPL

ORDERING CODES

RC 40 - Portable Torch with XLR 4M connector

RC 40/X - Portable torch 12V XLR 4M connector

RC 40/XX - Portable torch 12V Power Tap 2-pin connector
