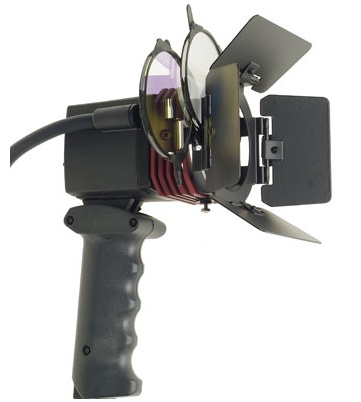

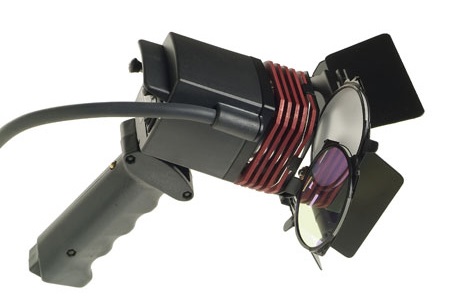

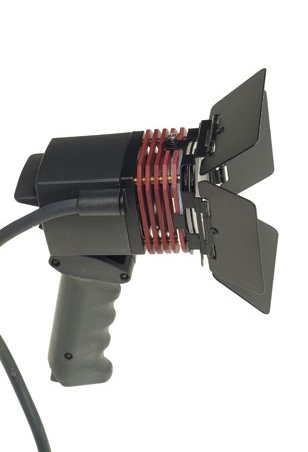

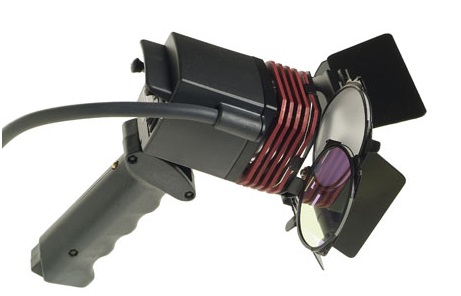

COSMOLIGHT RC 40/M
PORTABLE TORCH
The Mini Torch belongs to the family of ENG luminaires. Discreet and compact in size, it is the perfect answer to the latest technology of video cameras present in the market, that require less powerful light.
MAIN FEATURES
- Made of thermoplastic and aluminium materials it is extremely light and compact, particularly suitable for reportage and interviews.
- It accepts 30, 50, 100W lamps.
- It features an innovative adjustable and extractable ergonomic handgrip with an integrated camera mount which serves as a great tool to lighting professionals that can use it on camera, on stand and even by hand.
- The two sliding buttons for spot/flood beam variation and the on/off switch positioned at the back of the unit have been designed for quick and smooth one hand operation.
- The properly designed reflector ensures a high degree of reflectivity and produces a bright, wide, smooth, and even field of illumination.
- The four-leaf barndoor comes complete with diffusion glass and dichroic filter. These can be either not used or used simultaneously or separately, depending on the operator’s needs.
- Available in kit complete with accessories and battery
TECHNICAL DATA
- Aluminium and thermoplastic housing.
- High temperature painting (only the aluminium part).
- Sanded and treated aluminium reflector.
- Spot/flood focusing via two sliding buttons.
- Ergonomic handgrip with 3/8” thread female + shoe for camera mount.
- 2 mt fire resistant cable.
- On-board switch .
- Supply voltage 12V.
- XLR 4 M connector, Power Tap 2-pin connector.
- Lamp base GX 6,35.
- Correlated color temperature 3200K.
- IP 20.
- CE compliant.
- Weight 0,600 kg.
- Packing dimensions 27x21xh17 cm.
ACCESSORIES
RC 41/M Four-leaf barndoor with dichroic filter and diffusion glass |
|
RC 45 Extra slide for screw base gr 15 |
|
RC 20 Ergonomic extractable handgrip |
BATTERIES
RC 24 - Battery pack 12V-7Ah, Ni-Cd, charger included
CASES
RC 31 - Case in ABS for 12V battery pack kit
TECHNICAL DRAWING
PHOTOMETRIC DATA
30W | ||||
DISTANCE mt. | 1 | 2 | 3 | |
Spot 10° Lux | 755 | 197 | 95 | |
Flood 40° Lux | 234 | 66 | 33 | |
Beam diam spot (mt) | 2,8 | 4,7 | ||
Beam diam flood (mt) | 6 | 10 | ||
100W | ||||
DISTANCE mt. | 1 | 2 | 3 | |
Spot 10° Lux | 2810 | 720 | 360 | |
Flood 40° Lux | 932 | 241 | 126 | |
Beam diam spot (mt) | 2,8 | 4,7 | ||
Beam diam flood (mt) | 6 | 10 |
LAMPS
BASE GX 6,35 - 3200K | ||||
MOD. | WATT | ANSI | LIF | |
RC 40/M | 30W - 12V | |||
50W - 12V | ||||
100W - 12V |
ORDERING CODES
RC 40/M - Mini Torch with XLR 4M connector
RC 40/MX - Mini Torch with Power Tap 2-pin connector
