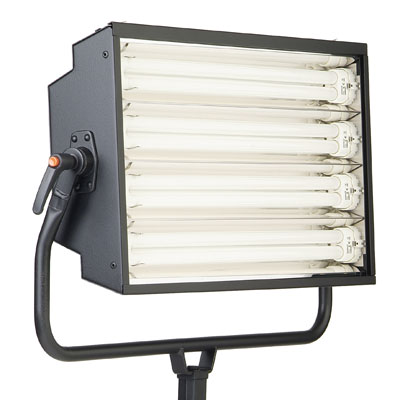

COSMOLIGHT RC/BR 455

REFLEX SHAPE

The highly engineered special reflex shape of the optical reflectors is a unique feature of our Brivido which optimizes the performance of luminous flux, delivering the most powerful, brightest, exceptionally even and shadowless illumination in the industry

MAIN FEATURES

• Compact aluminium housing, robust and lightweight.
• Highly engineered special reflex optical reflector shape.
• User-friendly digital display.
• Metal clamps to prevent loosening due to heat and consequent risk of lamp falling.
• Built-in power supply system utilizing high frequency flicker free electronic ballast, 40K Hz at 100% luminous flux.
• Superior CRI (95) levels for excellent color rendering.
• Dimming 0%-100% @230V.
• A complete set of accessories available to create effects and control the light.
• Four configurations: 2 lamps, 4 lamps, 6 lamps, 8 lamps.

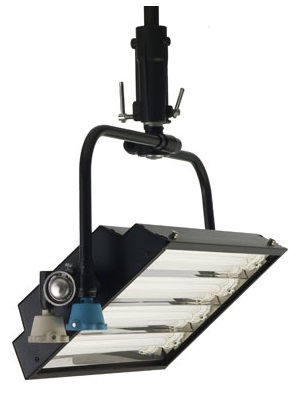

• Available in both manual and pole operated versions.

FOUR CONTROL VERSION: ON/OFF - ANALOGUE - DMX - PHASE CONTROL

ON-OFF

The simplest and most convenient version, when dimming is not required. The on-board switch is positioned at the rear of the luminaire.

ANALOGUE

Dimmed manually via an on-board potentiometer positioned at the rear of the luminaire which allows rapid and immediate linear uniform regulation of light intensity from 0-100, with light intensity shown as a percentage in the digital display.

DMX

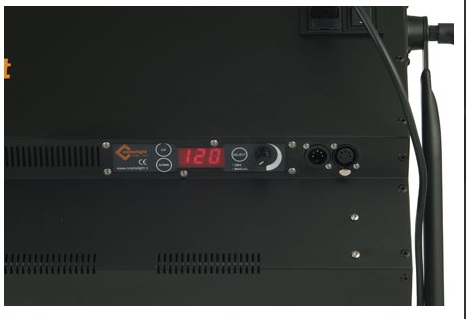

Light intensity is controlled via a DMX signal. The fixture can be connected directly to a lighting console thus eliminating the need of an external dimmer. Extremely user-friendly digital display panel, featuring an up/down selector for addressing channels. Once the desired channel has been detected, the numeric is visualized in the display and automatically memorized in 5 seconds. The presence of a digital signal is indicated by a red dot in the display (bottom right). In case of a fault or disconnection of cable connector, the red dot disappears and its absence indicates the absence of digital signal. Advantages: in the case of a breakdown in a ring of lights, the faulty fixture can be immediately detected In case of polarity reversal, the message “ERROR” appears in the display. The SELECT button allows switching from DMX to manual mode. Luminous intensity is dimmed manually via an on-board potentiometer positioned at the rear of the luminaire which allows rapid and immediate linear uniform regulation of light intensity from 0-100, with light intensity shown as a percentage in the digital display.

PHASE CONTROL

In this version the fixture is dimmed conventionally via an external dimmer as a traditional halogen source. Ideal for integration in studios with existing dimmer systems.

TECHNICAL DATA

• Aluminium housing.
• High-temperature painting.
• High quality polished aluminium reflector.
• Steel yoke mounting with 16mm (5/8”) socket.
• PO steel yoke mounting with 28mm (1-1/8”) spigot.
• 5 mt VDE fire resistant cable, section 3x1,5 mmq.
• On-board switch.
• Supply voltage 230-240V~.
• Lamp base 2G11.
• Correlated Color Temperature 3200K, 5600K.
• IP 20.
• CE compliant.

MO model
Weight kg 2,400
Packing dimensions 70x51xh 20

PO model
Weight kg
Packing dimensions

ACCESSORIES

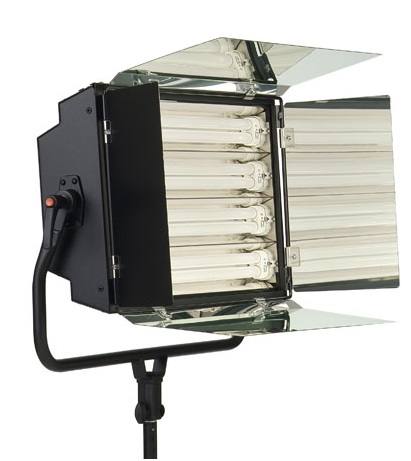

	RC 455/IB Intensifier barndoor gr
	RC 455/HC20 Honey Comb 20° gr
	RC 455/HC40 Honey Comb 40° gr
	RC 455/HC60 Honey Comb 60° gr
	RC 455/CF Gel frame

TECHNICAL DRAWING

PHOTOMETRIC DATA

LAMPS

BASE 2G11 - 3000K/5600K
MOD.
RC/BR 855		55W - 3000K (PHILIPS PL 5593 - OSRAM DL 55/930) 55W - 5400K (PHILIPS PL 5595 - OSRAM DL 55/950) 55W - 3200K (OSRAM STUDIO LINE SL 55/32) 55W - 5600K (OSRAM STUDIO LINE SL 55/11)

ORDERING CODES

RC/BR 455 - Brivido 220W ON/OFF

RC/BR 455A - Brivido 220W ANALOGUE

RC/BR 455D - Brivido 220W DMX

RC/BR 455PH - Brivido 220W PHASE CONTROL

RC/BR 455/PO - Brivido 220W ON/OFF Pole Operated

RC/BR 455A/PO - Brivido 220W ANALOGUE Pole Operated

RC/BR 455D/PO - Brivido 220W DMX Pole Operated

RC/BR 455PH/PO - Brivido 220W PHASE CONTROL Pole Operated
