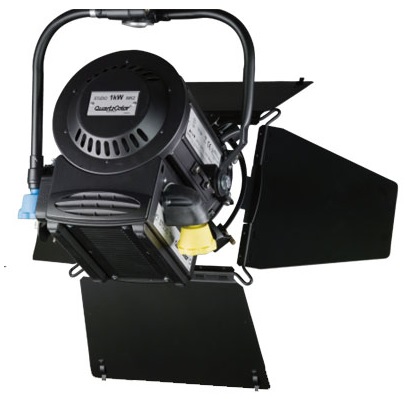

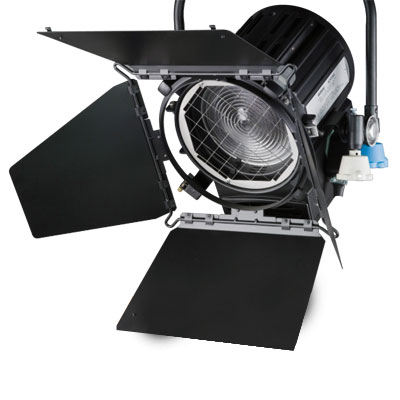

quartz color Studio 1kW

The Studio range of products has been developed specifically for TV applications where there is a need for high quality and balanced output producing flat and very even field. In the market for several years now, the QuartzColor Studio range has become a standard and a reference within the industry.

quartzcolor

MAIN FEATURES

  • Modern design.
  • Optimized combination of stainless steel, die cast and extruded aluminium for both sturdiness and lightweight.
  • Specifically designed optics with large size lens and reflector for high quality light output.
  • High quality epoxy powder paint against corrosion.
  • Scratch resistant black non-reflective housing.
  • Easy running accessory support brackets and lower accessory support bracket fitted with barndoor safety catch (extra safety).
  • Wire focus system for a smooth and precise focusing action, maintainance-free.
  • Front rigging hook.
  • Side mounted pole operated focus mechanism easily repositioned to manual use.
  • Easy to service and maintain.
  • CE compliance.

TECHNICAL DATA

OPTICAL

  • Lens: 175mm diameter high efficiency low expansion borosilicate Fresnel lens on spring teflon supports.
  • Spherical reflector in bimetallic (99.99/99.95%) aluminium with special anodised coating for high efficiency finish.
  • Range: 12.3° to 58,2°

ELECTRICAL

  • Lamp base: G22 (medium bi-post).
  • Power cable: 3x 1.5mm² heavy duty rubber bare ended cable. 5mt on manual version, 2mt on pole operated version.
  • Switching: head mounted toggle switch 8A/250V.
  • Power supply: 230V 50/60 Hz, 120V 60 Hz.
  • Protection class : class 1, ground connection required.

SAFETY

  • Safety guard: stainless steel 25 x 25mm.
  • Standards compliance: CE

OPERATIONAL

  • High efficiency convection cooling.
  • Tilt recommended angle of use: -90° / 0° / 90°
  • Max operating ambient temperature: 45°C
  • IP rating: IP 20
  • Max. housing surface temperature: 220°C
  • Minimum distances from inflammable surfaces: back 0.20 mt, front 1mt

MECHANICAL

  • Paint/ finishing: powder coated epoxy paint with special extra high temperature treatment in critical areas. External textured low gloss finish.
  • Housing: composed by two parts for easy inspection and maintainance: the lamp housing is formed sheet steel, the carriage housing is die cast and extruded aluminium.
  • Lamp socket: specifically designed G22 base lamp socket. Contacts in brass. Brass wing bolt provides easy lamp replacement.
  • Mounting PO stirrup: robust tubular steel construction, pan & tilt clutch gear mechanisms with friction clutches for manual override. Fitted with 28mm (11/8") spigot.
  • Mounting MO stirrup: robust tubular steel construction fitted with 28mm (1 1/8”) complete with lateral thrust bearing and lock off knob for quick and secure locking.
  • Accessory fitting: die cast aluminium accessory support brackets positioned at an X shape for true barndoor rotation. The lower support bracket includes a quick release barndoor safety catch which prevents the falling of the barndoor in case forgetting to close the top hinged bracket . Spring loaded top hinged bracket has been designed for very quick opening and closing and for easy accessory fitting and removal by one hand.
  • Tilt adjustment: pivot located at centre of gravity for excellent balance and positive locking.
  • Focus adjustment: the new wire focus mechanism, reliable and maintenance free, provides a smooth and precise action from spot to flood positions. The wire is stainless steel. The side pole operated mechanism is easily adaptable from pole operation to manual.
  • Lamp access: hinged lens door allowing an easy access for lamp replacement. The hinge assembly can be registered to have always a perfect opening lens door, so as to avoid accidents during its opening with accessories loaded.

WEIGHT AND DIMENSIONS

MANUAL OPERATED

  • Weight (head + stirrup): 7,5kg
  • Packed weight: 9,5kg
  • Packed volume: 52 x 42 x 52cm

POLE OPERATED

  • Weight (head + stirrup): 11kg
  • Packed weight: 13kg
  • Packed volume: 52 x 42 x 52cm

LAMP

  • Tungsten halogen single ended incandescent lamp type CP40 (FKJ) 1000W/230V-240V,
  • LCL (lamp centre length) 64mm
  • Base G22(medium bi-post)
  • Lumens 26.000
  • Rated life 200 hours
  • Colour temperature 3200K

TECHNICAL DRAWING

studio1kw

PHOTOMETRIC DATA

DISTANCE mt. 3 5 10 15
Lux Spot (12°) 10.000 3.600 900 400
Lux Flood (58°) 1.540 560 140 60
Beam diam. spot (mt) 0,6 1,0 2,2 3,2
Beam diam. flood (mt) 3,3 5,6 11,3 16,7

from CP40 (FKJ) 1000W 230V lamp - G22 base

ORDERING CODES

27250 - STUDIO 1KW MO supplied with manual stirrup, colour frame, four-leaf rotating barndoor

27250S1 - STUDIO 1KW MO supplied with manual stirrup, colour frame, four-leaf rotating barndoor, without switch.

27252 - STUDIO 1KW PO supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor

27252S1 - STUDIO 1KW PO supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor, without switch.

ACCESSORIES

28859 - Gel frame diam. 258mm

28304 - Scrim set 4 pieces (full single+ full double + ½ single + ½ double; diam. 258mm)

28850 - Cone diam. 269mm w/variable aperture

28050 - 4-leaf rotating barndoor diam. 269mm

28857 - 8-leaf rotating barndoor diam. 269mm

5261.172 - Spare Pole Operated stirrup (Pan & Tilt) w/ 28mm (11/8") spigot and safety bond for Bambino Fresnel 2kW MO Mk2 & Studio Fresnel 1kW PO Mk2)

5261.172DTC - Pole Operated stirrup (Pan& double Tilt) w/ 28mm (11/8") spigot and safety bond (for Studio Fresnel1kW PO Mk2)

RC 4340 - Stainless steel safety cable 4mm diam., 80cm length

RC C100 - C clamp with 28mm (11/8") socket
