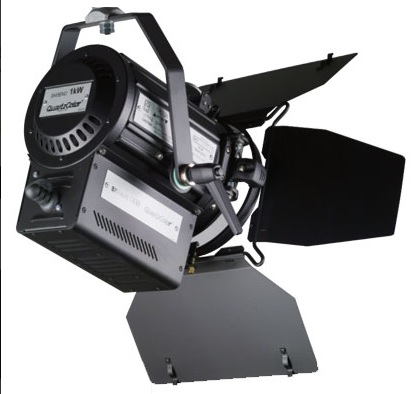

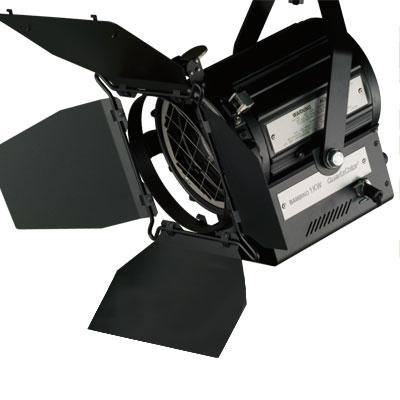

quartz color Bambino 1kW

MAIN FEATURES

• Lightweight and compact, ideal for location work.
• Optimized combination of steel, die cast and extruded aluminium for both sturdiness and lightweight.
• High quality mechanics for years of reliable operations.
• Easy one hand action spring loaded top catch for security but with quick access for accessory fitting and removal.
• Easy running accessory support brackets and lower accessory support bracket fitted with barndoor safety catch (extra safety).
• Manual rear focus knob and direct drive focus mechanism for a smooth and precise movement from spot to flood.
• Side mounted PO assembly in pole operated version with wire focus system for a smooth and precise, maintainance-free focusing action. The mechanism is easily repositioned to manual use.
• Front rigging hook.
• Superb light control from generously proportioned barndoors.
• Easy to service and maintain.
• CE compliance.

TECHNICAL DATA

OPTICAL

• Lens: 130mm diameter high efficiency low expansion borosilicate Fresnel lens on spring teflon supports.
• Spherical reflector in bimetallic (99.99/99.95%) aluminium with special anodised coating for high efficiency finish.
• Range: 13° to 49.3°

ELECTRICAL

• Lamp base: G22
• Power cable: 5mt length composed of 1mt 3x1.5mm² silicone high temperature cable from head to switch, 4mt 3x1.5mm² heavy duty rubber bare ended cable from switch to mains in manual version, 2mt 3x1.5mm² heavy duty rubber bare ended cable from switch to mains in pole operared version.
• Switching: in-line switch 10A/250V on manual version, head-mounted toggle switch 10A/250V in pole operated version.
• Power supply: 230V 50/60 Hz, 120V 60 Hz
• Protection class : class 1, ground connection required.

SAFETY

• Safety guard: stainless steel 25 x 25mm.
• Standards compliance: CE

OPERATIONAL

• High efficiency convection cooling.
• Tilt recommended angle of use: -90° / 0° / 90°
• Max operating ambient temperature: 45°C
• IP rating: IP 20
• Max. housing surface temperature: 240°C
• Minimum distances from inflammable surfaces: back 0.20 mt, front 1mt

MECHANICAL

• Paint/ finishing: powder coated epoxy paint with special extra high temperature treatment in critical areas. External textured low gloss finish.
• Housing: composed by two parts for easy inspection and maintainance: the lamp housing is formed sheet steel, the carriage housing is die cast and extruded aluminium.
• Lamp socket: specifically designed G22 base lamp socket. Contacts in brass. Brass wing bolt provides easy lamp replacement.
• Mounting MO stirrup: flat aluminium with28mm (1 1/8”) spigot
• Mounting PO stirrup: robust tubular steel construction, pan & tilt clutch gear mechanisms with friction clutches for manual override. Fitted with 28mm (11/8") spigot.
• Accessory fitting: die-cast aluminium accessory support brackets positioned at an + shape for easy barndoor rotation. The lower support bracket includes a quick release barndoor safety catch which prevents the falling of the barndoor in case forgetting to close the top hinged bracket . Spring loaded top hinged bracket has been designed for very quick opening and closing and for easy accessory fitting and removal by one hand.
• Tilt adjustment: pivot located at centre of gravity for excellent balance and positive locking.
• Focus adjustment: MO manual rear focus knob and direct drive focus mechanism in manual version. PO: the new wire focus mechanism, reliable and maintenance free, provides a smooth and precise action from spot to flood positions. The wire is stainless steel. The side pole operated mechanism is easily adaptable from pole operation to manual.
• Lamp access: Hinged lens door allowing an easy access for lamp replacement. The hinge assembly can be registered so as to have always a perfect opening lens door, so as to avoid accidents during its opening with accessories loaded.

WEIGHT AND DIMENSIONS

MANUAL OPERATED

• Weight (head + stirrup): 5,7kg
• Packed weight: 8.5kg
• Packed volume: 45 x 37 x 40cm

POLE OPERATED

• Weight (head + stirrup): 7kg
• Packed weight: 9,8kg
• Packed volume: 45 x 37 x 40cm

LAMP

• Tungsten halogen Single ended incandescent lamp type CP40 (FKJ) 1000W / 230-240V
• LCL (lamp centre length) 64mm
• Base G22 (medium bi-post)
• Lumens 26,000
• Rated life 200 hours
• Colour temperature 3200K

TECHNICAL DRAWING

PHOTOMETRIC DATA

ORDERING CODES

27640 - Bambino 1000W supplied with manual stirrup, colour frame, four-leaf rotating barndoor

27642 - Bambino 1000W supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor

ACCESSORIES

28849 - Gel frame Ømm

28844 - Scrim set 4 pieces (full single+ full double + ½ single + ½ double; Ømm)

28840 - Cone Ømm w/variable aperture

28846 - 4-leaf rotating barndoor diam. mm

RC 109 - Stainless steel safety cable 2mm diam., 50cm length

RC C100 - C clamp with 28mm (11/8") socket
