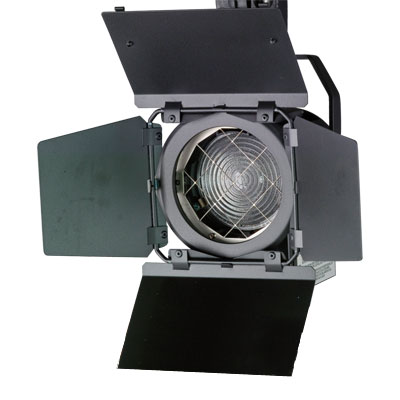

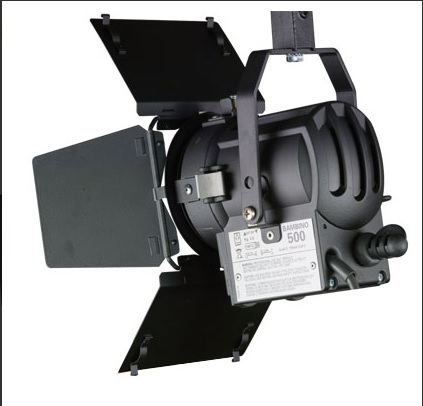

quartz color Bambino 300/550W

The Bambino range of products has been specifically designed so as to obtain compact and robust units for location use where size and weight are a must, still taking advantage of the numerous innovations and high quality features of Studio range.

quartzcolor

BAMBINO 300-500W

The Bambino range of products has been specifically designed so as to obtain compact and robust units for location use where size and weight are a must, still taking advantage of the numerous innovations and high quality features of Studio range.

MAIN FEATURES

  • Attractive design, lightweight and compact, ideal both for location work and architectural application.
  • Die cast aluminium body for both sturdiness and lightweight.
  • Proprietory Fresnel lens 90mm diameter with exceptional performance from generous lens size.
  • Wide front access for easy lamp replacement.
  • Superb light control from generously proportioned barndoors.
  • High quality mechanics for years of reliable operations.
  • Easy one hand action spring loaded top catch for security but with quick access for accessory fitting and removal.
  • Manual rear focus knob and direct drive focus mechanism for a smooth and precise movement from spot to flood.
  • Available with unique single sided stirrup which is adjustable for close rigging.
  • Easy to service and maintain.
  • CE compliance.
  • Available in kit.

TECHNICAL DATA

OPTICAL

  • Lens: proprietory 90mm diameter high efficiency low expansion borosilicate Fresnel lens on spring teflon supports.
  • Spherical reflector in bimetallic (99.99/99.95%) aluminium with special anodised coating for high efficiency finish.
  • Range: 14.2° to 45.3°

ELECTRICAL

  • Lamp base: GY9.5
  • Power cable: 4mt length composed of 1mt 3x1.5mm² silicone high temperature cable from head to switch, 3mt 3x1.5mm² heavy duty rubber bare ended cable from switch to mains.
  • Switching: in-line switch 10A/250V.
  • Power supply: 230V 50/60 Hz, 120V 60 Hz.
  • Protection class : class 1, ground connection required.

SAFETY

  • Safety guard: stainless steel 25 x 25mm.
  • Standards compliance: CE

OPERATIONAL

  • High efficiency convection cooling.
  • Tilt recommended angle of use: -90° / 0° / 90°
  • Max operating ambient temperature: 45°C
  • Max operating ambient temperature: 45°C
  • Max. housing surface temperature: 224°C
  • Minimum distances from inflammable surfaces: back 0.30 mt, front 0.70mt

MECHANICAL

  • Paint/ finishing: powder coated epoxy paint with special extra high temperature treatment in critical areas. External textured low gloss finish.
  • Housing and lens door: die cast aluminium.
  • Mounting stirrup: manual U shape stirrup with16mm (5/8”) socket, L shape stirrup with 16mm (5/8”) socket on request.
  • Accessory fitting: steel accessory support brackets with manual pull and twist spring loaded top bracket, designed for very quick one hand opening/closing and easy accessory fitting and removal.
  • Tilt adjustment: pivot located at centre of gravity for excellent balance and positive locking.
  • Focus adjustment: manual rear focus knob and direct drive focus mechanism.
  • Lamp access: Hinged lens door allowing an easy access for lamp replacement. The hinge assembly can be registered to have always a perfect opening lens door, so as to avoid accidents during its opening with accessories loaded.

WEIGHT AND DIMENSIONS

  • Weight (head + stirrup): 3kg
  • Packed weight: 3,5kg
  • Packed volume: 34 x 25 x 27cm

LAMP

  • Tungsten halogen single ended incandescent lamp type CP81 300W 120V/230V-240V, CP82 500W 120V/230V-240V lamps.
  • LCL (lamp centre length) 46mm.
  • Base GY9.5 (oriented 2-pin).
  • Lumens 6900 (300W), 12.500 (500W).
  • Rated life 150 hours.
  • Colour temperature 3200K.

TECHNICAL DRAWING

bambino300-500W

PHOTOMETRIC DATA

DISTANCE mt. 1 3 5 10
Lux Spot (14°) 31.000 3.450 1.240 310
Lux Flood (45°) 10.400 1.200 420 100
Beam diam. spot (mt) 0,2 0,7 1,2 2,5
Beam diam. flood (mt) 0,8 2,5 4,2 8,3

from CP82  (FRH) 500W 230V lamp - GY9,5 base

ORDERING CODES

27260 - Bambino 300/500W supplied with U shape stirrup, colour frame, four-leaf rotating barndoor

27633 - Kit with 3 Bambino 300/500W-230V including scrim set stands and carrying case

27664 - Kit with 3 Bambino 300/500W-240V including scrim set stands and carrying case

ACCESSORIES

28080 - Gel frame diam. 110mm (not for 120V version)

28301 - Scrim set 4 pieces (full single+ full double + ½ single + ½ double; diam. 110mm)

28104 - Cone diam. 110mm w/variable aperture

28040 - 4-leaf rotating barndoor diam. 110mm(not for 120V version)

28105 - Manual "L"-shape stirrup w/ single lock-off knob and integrated 16mm (?") socket

RC 109 - Stainless steel safety cable 2mm diam., 50cm length

RC 285 - C clamp with 16mm (5/8") spigot
