MAIN FEATURES
- Attractive design, lightweight and compact, ideal both for location work and architectural application.
- Die cast aluminium body for both sturdiness and lightweight.
- Fresnel lens 130mm diameter with exceptional performance from generous lens size.
- Wide front access for easy lamp replacement.
- Superb light control from generously proportioned barndoors.
- High quality mechanics for years of reliable operations.
- Easy one hand action spring loaded top catch for security but with quick access for accessory fitting and removal.
- Manual rear focus knob and direct drive focus mechanism for a smooth and precise movement from spot to flood. Side mounted PO assembly in pole operated version.
- Available with unique single sided stirrup which is adjustable for close rigging.
- Easy to service and maintain.
- CE compliance.
- Available in kit.
TECHNICAL DATA
OPTICAL
- Lens: 130mm diameter high efficiency low expansion borosilicate Fresnel lens on spring teflon supports.
- Spherical reflector in bimetallic (99.99/99.95%) aluminium with special anodised coating for high efficiency finish.
- Range: 10.2° to 50.3°
ELECTRICAL
- Lamp base: GY9.5
- Power cable: 4mt length composed of 1mt 3x1.5mm² silicone high temperature cable from head to switch, 3mt 3x1.5mm² heavy duty rubber bare ended cable from switch to mains in manual version, 2mt 3x1.5mm² heavy duty rubber bare ended cable from switch to mains in pole operared version.
- Switching: in-line switch 10A/250V on manual version, head-mounted toggle switch 10A/250V in pole operated version.
- Power supply: 230V 50/60 Hz, 120V 60 Hz
- Protection class : class 1, ground connection required.
SAFETY
- Safety guard: stainless steel 25 x 25mm.
- Standards compliance: CE
OPERATIONAL
- High efficiency convection cooling.
- Tilt recommended angle of use: -90° / 0° / 90°
- Max operating ambient temperature: 45°C
- IP rating: IP 20
- Max. housing surface temperature: 240°C
- Minimum distances from inflammable surfaces: back 0.20 mt, front 1mt
MECHANICAL
- Paint/ finishing: powder coated epoxy paint with special extra high temperature treatment in critical areas. External textured low gloss finish.
- Housing and lens door: die cast aluminium.
- Mounting MO stirrup: manual U shape stirrup with16mm (5/8”) socket, L shape stirup with 16mm (5/8”) socket on request.
- Mounting PO stirrup: robust tubular steel construction, pan & tilt clutch gear mechanisms with friction clutches for manual override. Fitted with 28mm (11/8") spigot.
- Skid on pole operated version.
- Accessory fitting: steel accessory support brackets with manual pull and twist spring loaded top bracket, designed for very quick one hand opening/closing and easy accessory fitting and removal.
- Tilt adjustment: pivot located at centre of gravity for excellent balance and positive locking.
- Focus adjustment: manual rear focus knob and direct drive focus mechanism in manual version, pole operated gear box and focus mechanism positioned on the side of the unit in pole operated version.
- Lamp access: Hinged lens door allowing an easy access for lamp replacement. The hinge assembly can be registered to have always a perfect opening lens door, so as to avoid accidents during its opening with accessories loaded.
WEIGHT AND DIMENSIONS
MANUAL OPERATED
- Weight (head + stirrup): 3kg
- Packed weight: 3,5kg
- Packed volume: 34 x 25 x 27cm
POLE OPERATED
- Weight (head + stirrup): 5kg
- Packed weight: 8kg
- Packed volume: 45 x 37 x 40cm
LAMP
- Tungsten halogen single ended incandescent lamp type CP81 300W 120V/230V-240V, CP82 500W 120V/230V-240V, CP89 650W 120V/230-240V lamps
- LCL (lamp centre length) 46mm
- Base GY9.5(oriented 2-pin)
- Lumens 6900 (300W), 12.500 (500W), 16.250 (650W)
- Rated life 150 hours
- Colour temperature 3200K
TECHNICAL DRAWING
PHOTOMETRIC DATA
DISTANCE mt. |
1 |
3 |
5 |
10 |
Lux Spot (14°) |
70.200 |
7.800 |
2.800 |
700 |
Lux Flood (45°) |
12.100 |
1.300 |
480 |
120 |
Beam diam. spot (mt) |
0,2 |
0,5 |
0,9 |
1,8 |
Beam diam. flood (mt) |
0,9 |
2,8 |
4,7 |
9,4 |
|
|
|
|
|
from CP82 (FRH) 500W 230V lamp - GY9,5 base |
ORDERING CODES

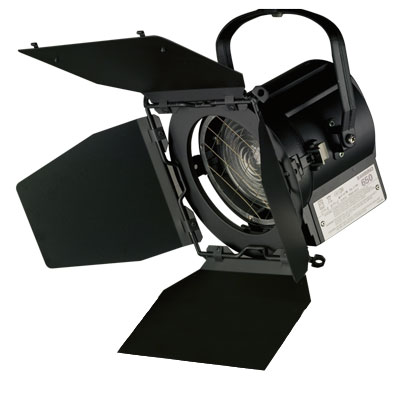

27630 - Bambino 650/500W supplied with U shape stirrup, colour frame, four-leaf rotating barndoor
27631 - Bambino 650/500W PO supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor
27673 - kit with 3 Bambino 650/500W 230V including scrim set stands and carrying case
27674 - kit with 3 Bambino 650/500W 240V including scrim set stands and carrying case
ACCESSORIES
28047 - Gel frame diam. 168mm
28309 - Scrim set 4 pieces (full single+ full double + ½ single + ½ double; diam. 168mm)
28049 - Cone diam. 168mm w/variable aperture
28048 - 4-leaf rotating barndoor diam. 168mm
28837 - 8-leaf rotating barndoor diam. 168mm
28106 - Manual "L"-shape stirrup w/ single lock-off knob and integrated 16mm (?") socket
RC 109 - Stainless steel safety cable 2mm diam., 50cm length
RC 285 - C clamp with 16mm (5/8") spigot
|
