COSMOLIGHT RC 110-110A

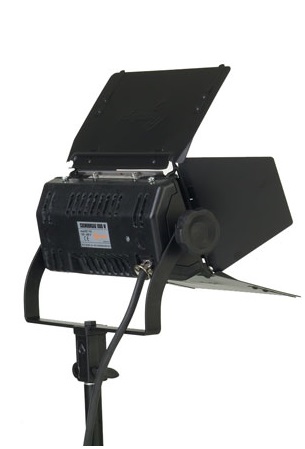

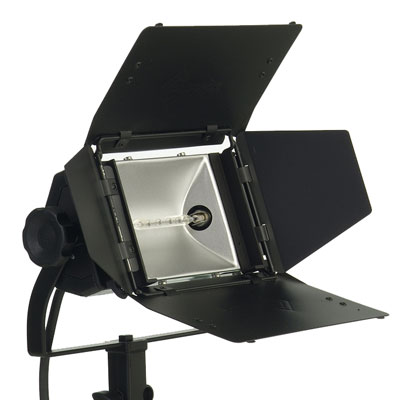

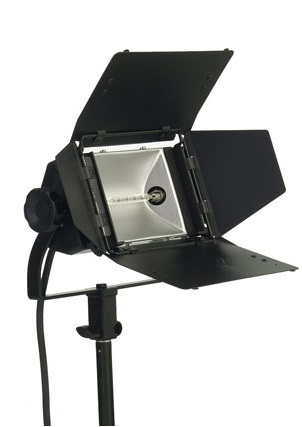

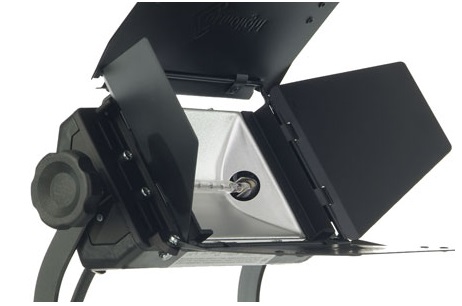

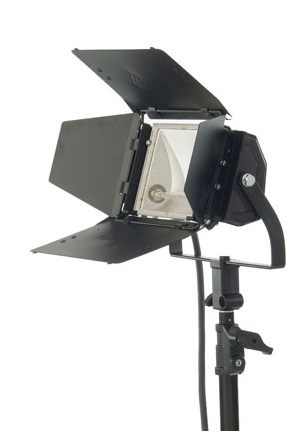

COSMOBROAD 1000W

The Cosmobroad is a 1000W floodlight, open-face, tungsten-halogen lantern, which provides an extremely soft, wide and even illumination particularly suitable for backgrounds, virtual sets, scenographies. In the version with asymmetric reflector it is used as a cyclorama light.

MAIN FEATURES

  • The housing is die-cast magnesium and fiberglass, very strong and lightweight materials.
  • Thanks to its special design and treatments, the reflector offers an extremely powerful and bright light output for an exceptional even illumination.
  • The lamp contacts in pure 100% silver represent a unique feature of this lantern which extends the lamp and contacts life reducing maintenance costs.
  • The silicone cable ensures high flexibility and avoids fire risk.
  • Top quality switch with very high number of on/off cycles.
  • All main mechanical components are stainless steel.
  • The ergonomic knob to fix the tilt position is shaped to ensure ideal handling to quickly and effortlessly fix the tilt position.
  • It is supplied complete with safety mesh and four-leaf barndoor with gel clips.

TECHNICAL DATA

  • Die-cast magnesium and fiberglass housing.
  • High-temperature painting (only the die-cast part).
  • Sanded and treated aluminium reflector.
  • Aluminium yoke mounting with 16mm (5/8”) socket.
  • Full lamp contacts in pure silver 100%.
  • 3,5 mt VDE fire resistant silicone cable, section 3x1,5 mmq.
  • In-line 10A switch protected by high-impact-proof housing.
  • Supply voltage 230-240V~.
  • Lamp base R7s.
  • Correlated color temperature 3200K.
  • IP 20.
  • .CE compliant
  • Packing dimensions 27x21xh17 cm.

ACCESSORIES

RC111 RC 111
Safety mesh gr 150
RC112C RC 112C
Four-leaf barndoor with gel clips gr 625

TECHNICAL DRAWING

ST RC110-110A


PHOTOMETRIC DATA

1000W
DISTANCE mt. 3 4 5
Flood 90° Lux 2100 1150 800

LAMPS

BASE R7S - 3200K
MOD. RC80FE WATT ANSI LIF
RC 110 800-230V DXX P2/13
  800-230V DXX P2/13
  650-120V FAD
  also available 600W - 500W - 250W

ORDERING CODES

RC 110 - Cosmobroad 1000W

RC110A - Cosmobroad 1000W with asymetric reflector
