COSMOLIGHT RC 200

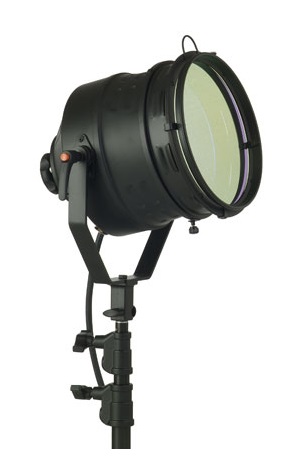

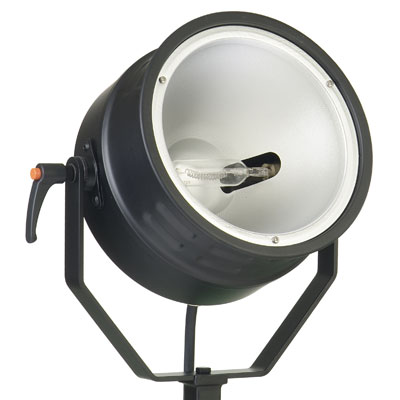

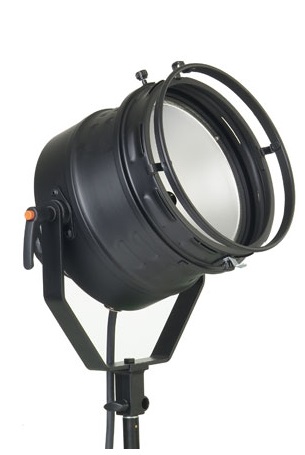

COSMOBEAM 2000W WITH YOKE

This 2000W open-face, tungsten-halogen lantern is an unsurpassed fixture in studio and location where high power and long-distance illumination is required. It is ideal for any lighting requirements: effect light, key light, fill light.

MAIN FEATURES

  • The housing is steel, a very strong and lightweight material.
  • Thanks to its special design and treatments, the hammered aluminium reflector offers an extremely powerful and bright light output for an exceptional even illumination.
  • The focusing mechanism for beam variation is smooth and accurate and allows precise light delivery exactly where needed.
  • The silicone cable ensures high flexibility and avoids fire risk.
  • Top quality switch with a very high number of on/off cycles.
  • All main mechanical components are stainless steel.
  • The ergonomic knob to fix the tilt position is shaped to ensure ideal handling to quickly and effortlessly fix the tilt position.
  • A complete set of accessories is available to create effects and control the light.
  • It is available in kit.

TECHNICAL DATA

  • Steel housing.
  • High temperature painting.
  • Sanded and treated hammered aluminium reflector.

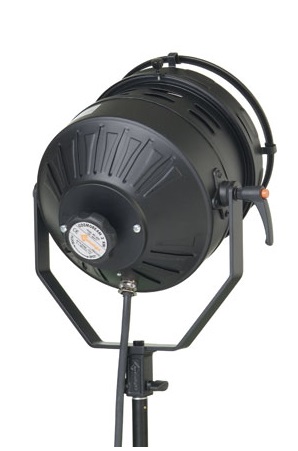

  • Spot/flood focusing via a rear knob.
  • Aluminium yoke mounting with 16mm (5/8”) socket.
  • 4,2 mt VDE fire resistant silicone cable, section 3x2,5 mmq.
  • In-line 20A switch protected by high impact-proof housing.
  • Supply voltage 230-240V~.
  • Lamp base R7s.
  • Correlated color temperature 3200K.
  • IP 20.
  • CE compliant.
  • Weight 3,170 kg.
  • Packing dimensions 31x32xh33 cm.

ACCESSORIES

RC202C-CR RC 202C/R

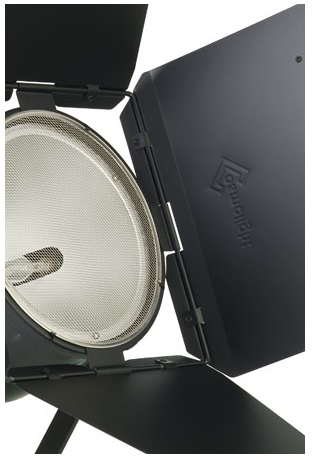

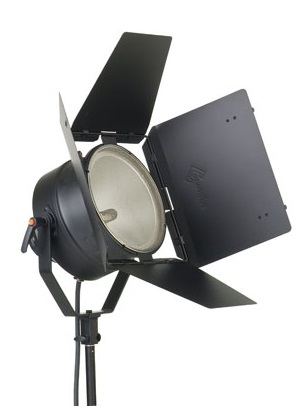

Four-leaf barndoor with safety mesh and gel clips gr 970
RC202C-CR RC 202C
Four-leaf barndoor with gel clips gr 930
RC101 RC 201
Accessory holder gr 485
RC204 RC 204
Dichroic filter gr 450
RC205 RC 205
Safety glass gr 510
RC207 RC 207
Scrim set (4 pieces) gr 270
RC203 RC 203
Safety mesh (excludes any other accessory) gr 150
RC209SDM RC 209SDL
Soft light box 91x122 cm Silver Dome Large complete with connector gr 2770
RC206 RC 206
Pinzone con 2 boccole16mm gr 1000
RC212B RC 212B
Aluminium stand 76/264 cm gr 1120 (as alternative RC 211B, RC 212B)

TECHNICAL DRAWING

ST RC200


PHOTOMETRIC DATA

2000W
DISTANCE mt. 3 5 7
Spot 40° Lux 9700 5750 2900
 Flood 90° Lux  3000  1900  1200
Beam diam spot (mt) 2,2 3,6  5,1
Beam diam flood (mt) 4,2 7  9,8

LAMPS

BASE R7S - 3200K
MOD.

RC80FE

138,1mm

WATT ANSI LIF
RC 200 2000-230V FEX P2/27
  2000-230V FEX P2/27
  2000-120V FEX

ORDERING CODES

RC 200 - Cosmobeam 2000W with yoke
