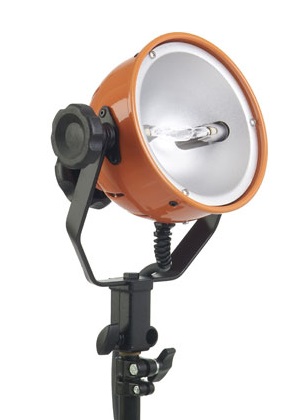

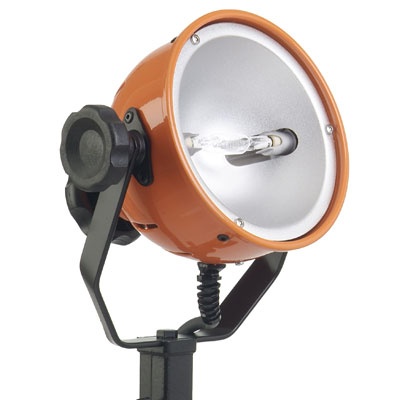

COSMOLIGHT RC 80F-100F

MAIN FEATURES

• The housing is aluminium, a very strong and lightweight material.
• Thanks to its special design and treatments, the reflector offers an extremely powerful and bright light output for an exceptional even illumination.
• The focusing mechanism for beam variation is smooth and accurate and allows precise light delivery exactly where needed.
• The lamp contacts in pure silver 100% represent a unique feature of this lantern which extends the lamp and the contacts life reducing maintenance costs.
• The silicone cable ensures high flexibility and avoids fire risk.
• Top quality switch with a very high number of on/off cycles.
• All main mechanical components are stainless steel.
• The ergonomic knob to fix the tilt position is shaped to ensure ideal handling to quickly and effortlessly fix the tilt position.
• A complete set of accessories is available to create effects and control the light.
• It is available in kit.

TECHNICAL DATA

• Aluminium housing.
• High temperature painting.
• Sanded and treated aluminium reflector.
• Spot/flood focusing via a rear knob.
• Aluminium yoke mounting with 16mm (5/8”) socket.
• Full lamp contacts in pure silver 100%.
• 3,5 mt VDE fire resistant silicone cable, section 3x1,5 mmq.
• In-line 10A switch protected by high impact-proof housing.
• Cable gland against tear.
• Supply voltage 230-240V~.
• Lamp base R7.
• Correlated color temperature 3200K.
• IP 20.
• CE compliant.
• Weight 1,500 kg.
• Packing dimensions 27x21xh17 cm.

ACCESSORIES

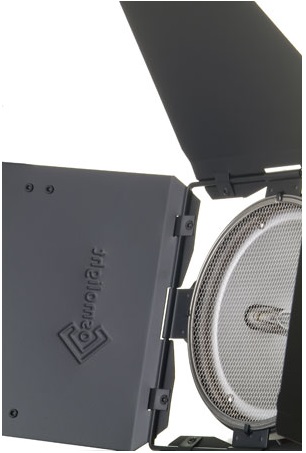

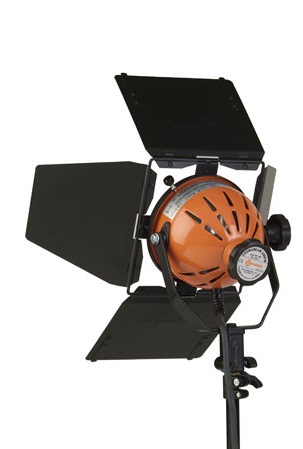

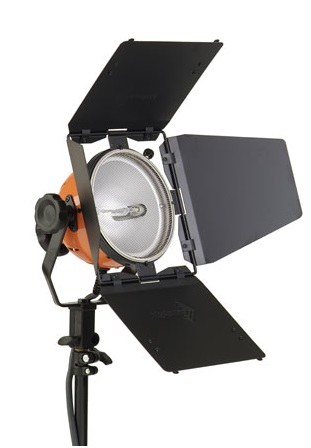

	RC 103C/R Four-leaf barndoor with safety mesh and gel clips gr 650
	RC 103C Four-leaf barndoor with gel clips gr 625
	RC 101 Accessory holder gr 350
	RC 104 Dichroic filter gr 170
	RC 105 Dichroic filter gr 170/td>
	RC 105A Diffusion glass gr 170
	RC 106 Scrim set (4 pieces) gr 150
	RC 107 Safety mesh(excludes any other accessory) gr 110
	RC 50/55 Snoot diam. 55mm gr 200
	RC 50/63 Snoot diam. 63mm gr 210

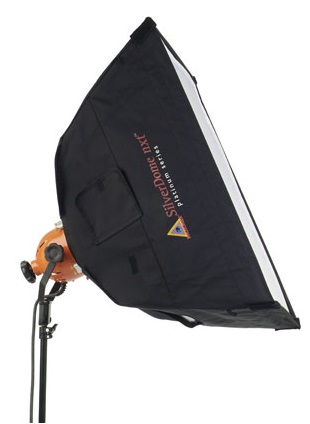

	RC 108SDM Soft light box 61x81 cm Silver Dome Medium complete with connector gr 1400
	RC 212B Aluminium stand 76/264 cm gr 1120 (as alternative RC 211B, RC 212B)
	RC 4170 Clamp with spigot 16mm gr 300
	RC 4320 Toggle joint with 2 sockets 16mm gr 250
	RC 4325 Umbrella diam. 80 cm gr 340

TECHNICAL DRAWING

PHOTOMETRIC DATA

LAMPS

ORDERING CODES

RC 80F - Cosmobeam 800W

RC 100F - Cosmobeam 1000W

RC 80FB - Cosmobeam 800W Black

RC 100FB - Cosmobeam 1000W Black
