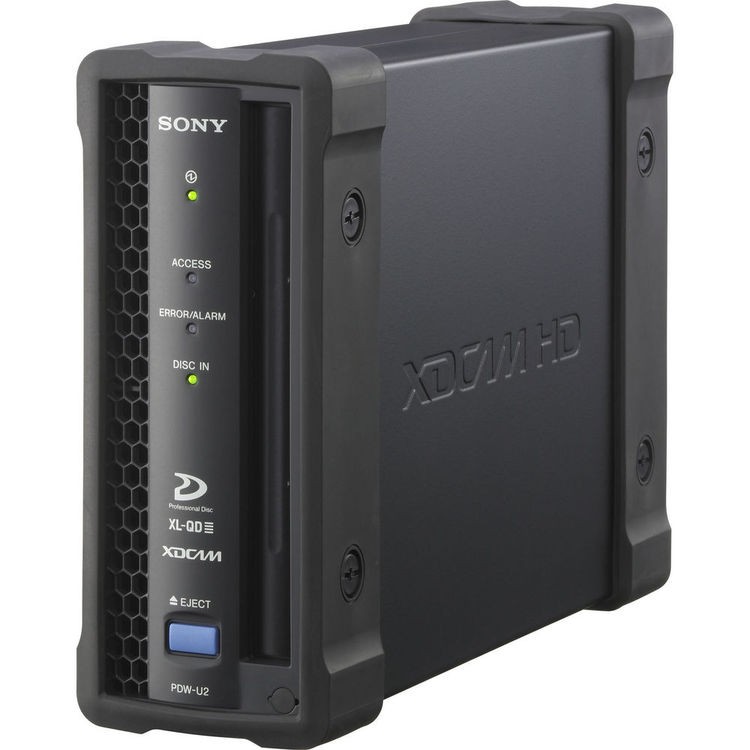

Sony PDW-U2 USB 3.0 XDCAM Disc Drive

XDCAM Professional Disc Drive Unit. (MFR # PDW-U2)

Sony's PDW-U2 USB 3.0 XDCAM Disc Drive is an external drive for conveying media to and from all XDCAM Professional Discs, whether SD or HD, single-, dual- or even quad-layer. The drive sits on your desk either horizontally or vertically and connects to your computer via USB 3.0, for extremely high data transfer speeds.

It features a dual-channel head system that puts two optics on one head to achieve much faster read and write speeds compared to previous-generation technology: reading is 2.6x faster, and write speed is 1.5x higher.

Key Features:

  • Handles files in all formats: XDCAM HD422, XDCAM HD, and XDCAM SD
  • Direct access to files on Sony XDCAM Professional Disc media from a USB-connected PC
  • SuperSpeed USB 3.0 interface – backwards-compatible with high-speed USB 2.0 interface
  • Handles quad-layer write-once (PFD-128QLW) in addition to dual-layer disc (PFD-50DLA) and single-layer disc (PFD-23A)
  • High capacity and a new workflow via quad-layer, write-once media support. The quad-layer disc offers over four hours of recording of HD422 (50 Mb/s) material, which means you can reduce your facility's cost-per-media-capacity and even use memory media material as storage media.
  • High-speed read/write with the newly developed two-channel, single-head DCHS drive. Read 2.6x faster and write 1.5x faster than the previous-generation drive with single-/dual-layer discs.
  • Small and light form factor – can be operated either horizontally or vertically
  • Data file recording using a User Data folder
  • Up to 333 Mb/s read speed
WEIGHT 3.75 lb (1.7 kg)
STORAGE TEMPERATURE -4 to 140 °F (-20 to 60 °C)
OPERATING TEMPERATURE 41 to 104 °F (5 to 40 °C)
DIMENSIONS 6.5 x 2.7 x 8.6" (164 x 67.4 x 219mm)
POWER CONSUMPTION 19W
POWER REQUIREMENT 12V DC (AC adapter supplied)
  • Standard Manufacturer's Warranty
  • XDCAM Application Software CD-ROM
  • PDW-U2 CD-ROM
  • AC Adapter
  • USB 3.0 Cable
