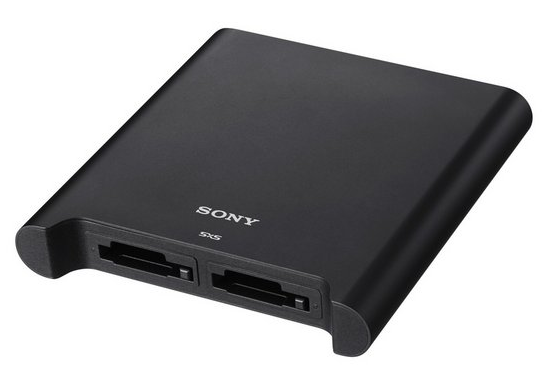

Sony SBACUT100 Multi-slot SxS Memory Card Reader/Writer

High speed transfers from SxS PRO+ and SxS-1 cards with dual slots and daisy-chain operation. (Mfr # SBACUT100)

Sony

The Sony SBAC-UT100 is an SxS memory card reader/writer that works with both Windows and Macintosh computers. The unit provides two Thunderbolt 2 (TB2) interfaces for Mac and USB 3.0 interface for Mac and Windows. The reader is also compatible with a USB 2.0 interface. Daisy-chain operation is possible when using Thunderbolt allowing connection of 6 units, providing up to 12 card slots.

Key Features:

High speed transfers

Read speeds of approx. 360 MB/s for two cards simultaneously from latest SxS Pro+ and SxS-1 cards using Thunderbolt 2.

Daisy-chain operation

Connect up to 6 units, providing up to 12 card slots, allowing simultaneous ingest up to 1800 MB/s total (300 MB/s each slot).

XQD media support

The SBAC-UT100 can also be used with XQD media in combination with the XQD adapter (QDA-EX1). For example, content recorded with the PXW-FS7 camcorder on XQD media is compatible with UT100 only if housed in XQD adapter.

HUMIDITY 20% to 80% (without condensation)
STORAGE TEMPERATURE –20 °C to +60 °C (–4 °F to +140 °F)
OPERATING TEMPERATURE 5 °C to 40 °C (41 °F to 104 °F)
INTERFACE USB: Super Speed USB (USB 3.0 compliant) Thunderbolt: Thunderbolt 2 compliant
POWER SUPPLY AC?DC Adaptor (VGP?AC19V77) Input: AC 100 V?240 V, 50 Hz/60 Hz Output: DC 19.5 V/3.3 A (Max)
DIMENSIONS Approx. 155.6 × 25.2 × 162.6 mm (6 1/4 × 1 × 6 1/2 in.) (W×H×D, including protrusions)
POWER CONSUMPTION 10 W (during Thunderbolt operation)
MASS Approx. 450 g (16 oz.) (excluding SxS Memory Card)
  • Standard Manufacturer's Warranty
  • USB cable (1) (Service part number: 1?839?351?11)
  • AC adaptor (1) (Service part number: VGP?AC19V77 (19.5V 3.3A) 1?492?525?31)
  • Power cord (1) (Service part number: 1?757?562?11 (USA and Canada), 1?575?131?82 (Europe))
  • Operating Instructions (1)
