audio-technica AT8657/LED

AT8657/LED

REMOTELY CONTROL YOUR INSTALL MICROPHONES

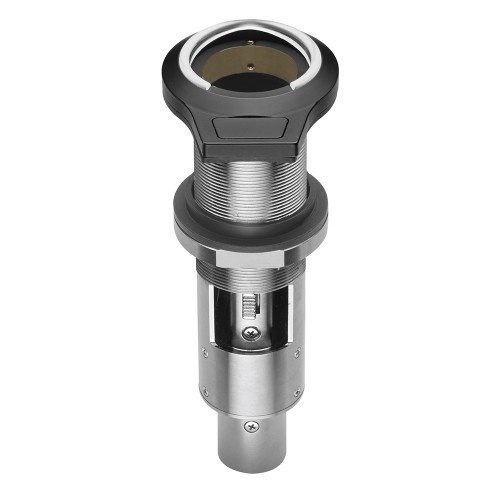

Designed to be recessed into a table, the AT8657/LED Microphone Adapter facilitates the use of any gooseneck microphone or 21 mm button type surface microphone with a 3-pin XLRM output, such as the ES945 and ES947 microphones in various presentation environments.

The socket’s logic out capability permits control of remote devices from a programmable capacitance switch, so users can easily trigger an external device (e.g., a camera or light) with the touch of a button – an extremely useful feature in conference and boardroom installations. The socket also features a lock switch that automatically locks the microphone in place upon insertion, holding it securely until switch is manually released by user.

• Adapter allows the installation into a ceiling, wall or table of any gooseneck microphone or button-type surface mic of 21mm diameter, equipped with a 3-pin XLRM output
• Quick assembly for install microphones, allowing integration with discretion
• The possibility of contact closure allows the controlling of external devices through a built-in switch
• The touch button allows the user to switch the Microphone from Mute (open) to Unmute (closed) and back.
• Operates on 24-48V phantom power
• The 360° ring-shaped red / green LED lamp indicates the status of the microphone
• The latch automatically locks the microphone in place, holding it firmly until manually unlocked by the user
• The adapter output is a 3-pin XLRM
• Supplied with insulation washers for damping the vibration surface

“GREEN / RED LED LAMP”

The AT8657/LED features an integral 360° Red/Green LED ring, controllable from a logic-enabled device and powered by the microphone’s phantom power, eliminating the need for an additional power source.

“REMOTE CONTROL”

The socket’s logic out capability permits control of remote devices from a programmable capacitance switch, so users can easily trigger an external device (e.g., a camera or light) with a touch of the button situated on the AT8657/LED.

“FAST INSTALLATION”

The AT8657/LED can be discreetly and stylishly integrated into the conference room table. Before each meeting, simply plug your gooseneck microphones into the AT8657/LED, and within minutes the conference can begin. At the end of the meeting, the microphones can be unlocked and removed from their adapter to make way for an open table.
