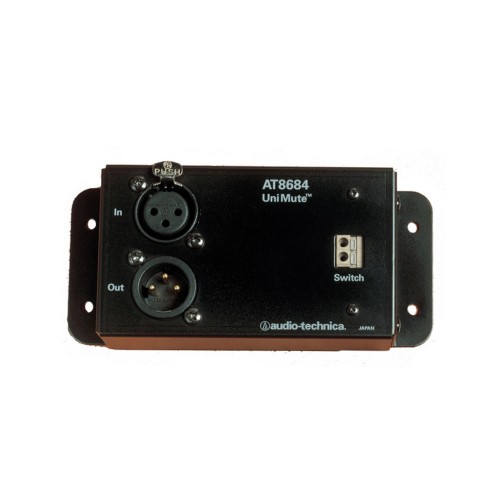

audio-technica AT8684

UNIMUTE® MIC ATTENUATOR WITH USER-DEFINABLE SWITCH FUNCTION

Versatile attenuator that permits easy in-line switch installation
Muting function determined type of external single-pole switch used
Professional XLR-type input/output connectors
24-48V DC phantom power and balanced cables required for operation
Permits phantom voltage to pass on to the microphone
Rugged steel housing

Audio-Technica
AT8684
Input Impedance 5,300 ohms
Output Impedance 500 ohms
Maximum Gain Unity (0 dB), +0/-1.5 dB
Frequency Response 20 - 20 000 Hz
Input Attenuation 57 dB at 1 kHz
Power Supply Phantom Power 24-48V CC, 2-4 mA typical
Dimensions 5.12" (130.0 mm) W x 2.36" (60.0 mm) D x 1.73" (44.0 mm) H
Weight 8.8 oz (250 g)
