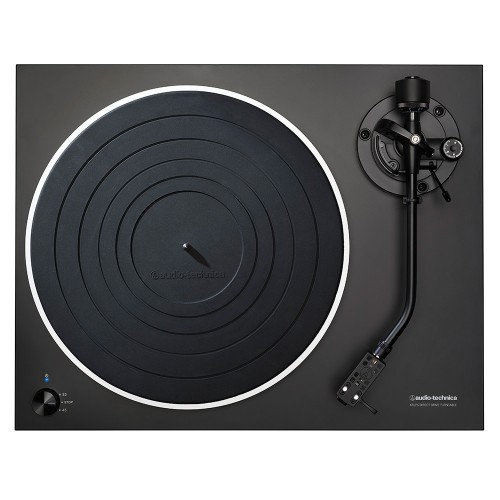

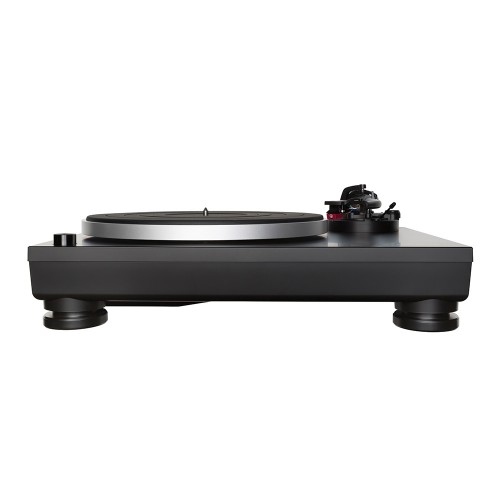

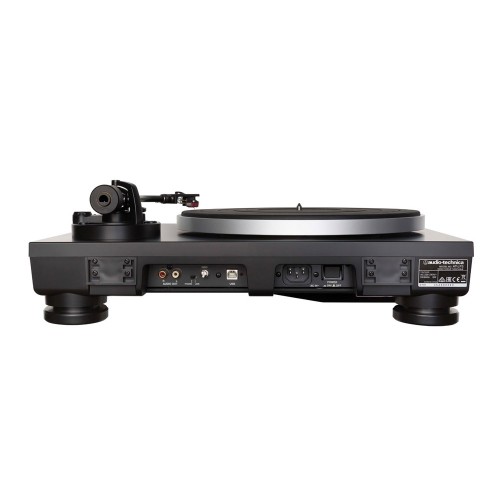

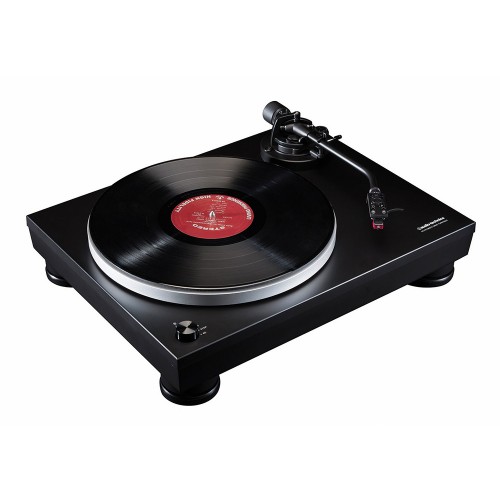

audio-technica AT-LP5
DIRECT DRIVE TURNTABLE
AT95Ex Dual Moving Magnet stereo cartridge mounted on AT-HS10 Headshell
Original Audio-Technica J-shape design tonearm
Cast aluminium record platter
5mm Audio-Technica heavy damping rubber mat
Sleek matt black surface finish
33? & 45 RPM selectable speeds
AT-LP5
PERFORMANCE IN TECHNOLOGY, PURITY IN DESIGN
A perfect balance of technology and design, the sleek contemporary lines of the AT-LP5 turntable grace any room in the home, while delivering performance features born out of Audio-Technica's rich analogue heritage.
- Specially designed AT95Ex Dual Moving Magnet stereo cartridge
- Twist-locking tonearm mechanism for quick and easy headshell exchange
- J-shape tonearm referencing the original 1960's and 70's Audio-Technica design
- Precision machined cast aluminium record platter for perfect on-axis balanced roation
- 5mm Audio-Technica heavy damping rubber mat for improved low-frequency reproduction
- Ergonomic Start/Stop and speed selector with 33? & 45 RPM selectable speeds
- Adjustable counterweight and anti-skate control for perfect problem free plaing
- Anti-vibration and damping materials used to minimise unwanted resonance
“ORIGINAL J-SHAPED TONEARM”
The original J-shaped tonearm, engineered to minimise tracking error, harks back to the original Audio-Technica designs of the 1960's and 70's, complementing the AT-LP5's clean lines and minimal design.
“EXCLUSIVELY DESGINED CARTRIDGE”
The AT-LP5 comes with the AT95EX high performance cartridge, exclusively designed for the turntable, and fitted on an AT-HS10 lightweight headshell; the combination perfectly balanced for the turntable's J-shaped tonearm.
“PERFECT BALANCE OF TECHNOLOGY AND DESIGN”
The direct-drive engine provides playback for both 33 1.3rd and 45 RPM records, with a cast aluminium platter and thick dampling mat, hosued together in a structure that has been engineered for minimum chassis resonance, while reatining a descreet look.
DIE-CAST ALUMINIUM PLATTER
Aluminium platter with 5mm thick rubber-compound mat for balanced rotation and improved low frequency reproduction.
EXCLUSIVE AT95EX CARTRIDGE
AT95EX high performance cartridge , exclusively designed for the AT-LP5 and supplied on an AT-HS10 lightweight headshell.
BALANCED TONEARM
A balanced tonearm with hydraulic lift, anti-skate control and adjustable counterweight for perfect performance.
33? AND 45 RPM
33? and 45 RPM speeds with direct drive for stable rotation, 1.7 second start up and ergonomic selector switch
| Turntable | |
|---|---|
| Drive Method | Direct drive |
| Type | 2-Speed, fully manual operation |
| Motor | DC motor |
| Speeds | 33-1/3 RPM, 45 RPM |
| Turntable Platter | Die-cast aluminium |
| Starting Torque | >1.6 kgf.cm |
| Braking System | Electronic brake |
| Wow and Flutter | < 0.2% WRMS (33 RPM) |
| Signal-to-Noise Ratio | > 50 dB |
| Output Level | “PHONO” (Pre-amp bypassed) - 4 mV nominal at 1 kHz, 5 cm/sec “LINE” (Pre-amp engaged) - 150 mV nominal at 1 kHz, 5 cm/sec |
| USB Function | A/D, D/A - 16 bit 44.1 kHz or 48 kHz USB selectable Computer interface: USB 1.1 (or higher) compliant Windows XP, Vista or MAC OS X |

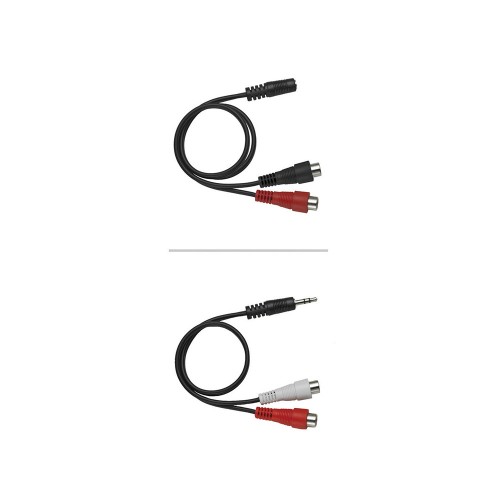

| Accessories Included | AC line chord; Dual RCA (male) to Dual RCA (male) stereo cable; 45 RPM adapter; USB cable; recording software (Audacity), cartridge alignment and overhang adjustment template |
| Cartridge & Stylus | |
|---|---|
| Model | AT95EX |
| Type | VM Design Stereo Dual Moving Magnet |
| Output Voltage | 4 mV (at 1 kHz, 5 m/sec) |
| Vertical Tracking Force Range | 1.5 to 2,5 g (standard 2 g) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Recommended Load Impedance | 47,000 ohms |
| Weight | 5.7 g |
| Replacement Stylus | ATN95EX |
| Headshell | |
|---|---|
| Model | AT-HS10 |
| Weight | 10 g |
| Overhang Adjustment | +/- 5 mm |
| Colour | Black |
| Tone arm | |
|---|---|
| Type | Static balance J-shaped tonearm |
| Effective Length | 247 mm |
| Overhang | 17 mm |
| Maximum Tracking Error Angle | Less than 2.3° at any point of the record |
| Stylus Pressure Adjustment Range | 0 to 5 g |
| Applicable Cartridge Weight | 15 - 20 g (including headshell weight) |
| Anti-skating Range | 0 - 3 g |
