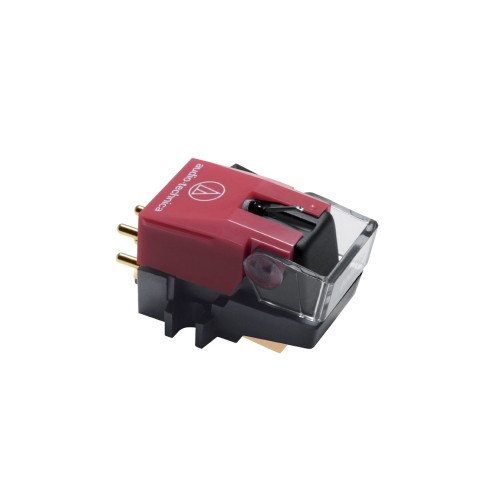

audio-technica AT100E
MOVING MAGNET CARTRIDGE
VM type dual magnet system
High-performance para-toroïdal generator coil system
Gold plated connectors
PCOCC coil
Molded integrated suspension wire
Elliptical stylus
AT100E
MOVING MAGNET CARTRIDGE
Elliptical stylus VM cartridge with para-toroidal coil
Para-toroidal coils, long recognised for their high efficiency, are utilised here for the first time in cartridge manufacturing, characterised by uniform response and distortion-free performance.
Gold-plated connectors assure maximum energy transfer.
Superior imaging and channel separation are achieved through the A-T Vector Aligned Dual Magnet design.
| Type | VM Dual Magnet |
| Mounting | 1/2” centers |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 27 dB (1 kHz) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 4.5 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.0 to 1.8g (standard 1.4g) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Jointed Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3,200 ohms (1kHz) |
| Coil Inductance | 490 mH (1 kHz) |
| Static Compliance | 35 x 10 – 6 cm / dyne |
| Dynamic Compliance | 8.0 x 10 – 6 cm / dyne (100 Hz) |
| Recommended Load Impedance | 47,000 W |
| Recommended Load Capacitance | 100-200 pF |
| Weight | 6.5g |
| Dimensions | 17.3 (H) x 16.0 (W) x 28.2 (L) mm |
| Replacement Stylus | ATN100E |
| Accessories Included | Non magnetic screw driver; Anti-static stylus brush; Two 8 mm installation screws; Two 5 mm installation screws; Two hexagonal nuts; Two round nuts; Four washers; |
