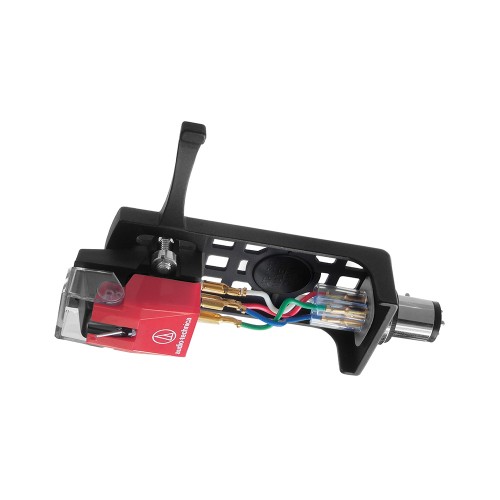

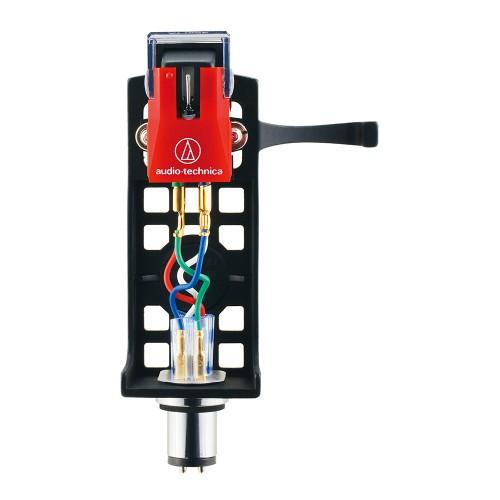

audio-technica AT100E/HSB
DUAL MOVING MAGNET STEREO CARTRIDGE WITH HEADSHELL
VM type dual magnet system
High performance para-toroidal generator system
Preassembled with HS10 Headshell
Superior imaging and channel separation
Elliptical stylus and aluminium pipe cantilever
AT100E/HSB
DUAL MOVING MAGNET STEREO CARTRIDGE WITH HEADSHELL
- VM type dual magnet design and high performance para-toroidal generator system.
- Lightweight aluminium headshell (AT-HS10) included.
- Additional shielding improves stereo signal separation by reducing electrical interference between channels.
- PCOCC coil.
- Elliptical stylus and aluminium pipe cantilever.
HASSLE-FREE SET-UP
The AT100E VM Stereo cartridge comes preassembled with a lightweight aluminium HS10 Headshell for a quicker and easier set-up.
MINIMISES VIBRATION
Elliptical stylus and aluminium pipe cantilever helps to minimise vibration.
| Type | VM Type |
| Mounting | 1/2” centers |
| Frequency Response | 20 – 20,000Hz |
| Channel Separation | 27dB (1kHz) |
| Output Channel Balance | 1.5dB (1kHz) |
| Output Voltage | 4.5mV (1kHz, 5cm/sec.) |
| Vertical Tracking Angle | 23? |
| Vertical Tracking Force Range | 1.0 – 1.8g (1.4g standard) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Jointed Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3,200Ω (1kHz) |
| Static Compliance | 35 x 10-6 cm/dyne |
| Dynamic Compliance | 8 x 10-6 cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000Ω |
| Recommended Load Capacitance | 100 – 200pF |
| Weight | 16.8g |
| Dimensions | 21.3 (H) x 21.0 (W) x 70.3 (L) mm |
| Replacement Stylus | ATN100E |
