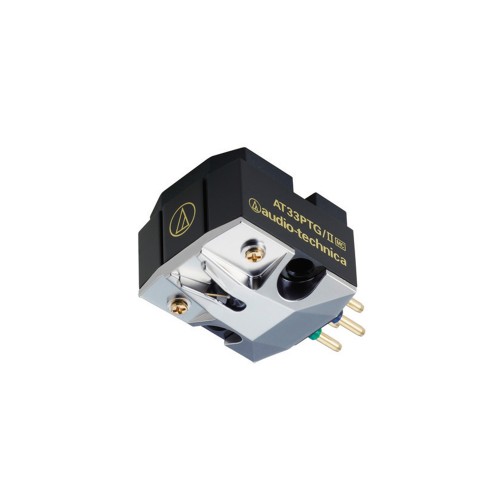

audio-technica AT33PTG/II
MOVING COIL CARTRIDGE
Advanced nude tapered boron and weight reduction
Thinned down and shortened cantilever
Coil impedance refined from 17W to 10W
High performance and long-life MicroLinear™ stylus
Better high range performance than the conical or elliptical stylus
Average product lifetime of around 1000 hours
AT33PTG/II
MOVING COIL CARTRIDGE
Advanced nude tapered boron and weight reduction
This model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17W to 10W. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge.
High performance and long-life MicroLinear™ stylus
MicroLinear™ (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours.
“OUTSTANDING MAGNETIC PROPERTIES”
Neodymium magnet with dramatically enhanced magnetic energy and permendur yoke with high saturation flux density and outstanding magnetic properties.
“ENABLES PURER TRANSMISSION”
The PCOCC coil enables purer transmission because it is not subject to grain boundaries in the direction of transmission.
“LIMITS UNNECESSARY VIBRATION”
The VC mould that affixes the coil is made with hard synthetic resin containing potassium titanate to make it strong and rigid.
| Type | Dual Moving Coil |
| Mounting | 1/2" Centers |
| Frequency Response | 15 - 50,000Hz |
| Body Material | Aluminium/Synthetic Resin |
| Channel Separation | 30dB (1kHz) |
| Output Channel Balance | 0.5dB (1kHz) |
| Output Voltage | 0.3mV (1kHz and 5cm/sec.) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.8 - 2.2g (2.0g standard) |
| Stylus Shape | MicroLine™ |
| Stylus Curvature Radius | Micro linear |
| Stylus Construction | Nude Square Shank |
| Cantilever | Gold-plated solid boron |
| Coil Impedance | 10Ω (1kHz) |
| Coil Inductance | 22µH (1kHz) |
| DC Resistance | 10Ω |
| Static Compliance | 40×10-6cm/dyne |
| Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
| Terminal Pins | Brass |
| Recommended Load Impedance | Min 100Ω |
| Weight | 6.9g |
| Dimensions | H16×W16.6×D26.5mm |
| Replacement Stylus | When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price. |
| Accessories Included | 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101) |
