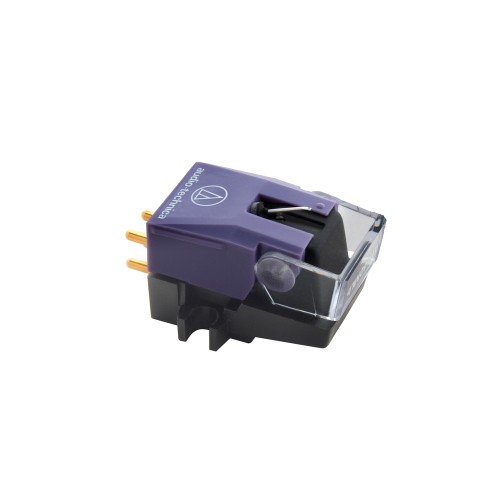

audio-technica AT440MLB
MOVING MAGNET CARTRIDGE
Dual magnet cartridge featuring a MicroLine shaped, diamond tip
Improved high frequency response with less wear and distortion
Tracks portions of the groove other styli cannot reach
Extremely accurate tracing of high frequency passages
Features Audio-Technica’s unique Paratoroidal Signal Generator
Gold plated beryllium cantilever improves stability
AT440MLB
MOVING MAGNET CARTRIDGE
This AT440MLb cartridge is equipped with Audio-Technica’s patented Dual Magnet cartridge design and delivers “practically identical to the cutter head” performance.
The MicroLine™ stylus almost exactly duplicates the shape of the cutting stylus used to produce the original master disc. This enables it to track portions of the groove other styli cannot reach, resulting in extremely accurate tracing of high frequency passages and ruler-flat frequency response within the audible range.
The AT440MLb also features Audio-Technica’s unique Para-toroidal Signal Generator. This unique signal generating system is composed of a unified, laminated coil core wound with a single piece of wire. Internal mechanical and electrical connections are eliminated, minimising magnetic losses and ensuring better signal transfer.
A gold plated beryllium cantilever improves stability whilst the dual magnet system offers excellent channel separation.
- Dual magnet cartridge design
- Para-toroidal generator coil circuit
- Micro linear stylus
- PCOCC wire
- ?Gold plated connectors
“MOST ADVANCED DESIGN”
The MicroLine™ stylus represents the latest and most advanced design, with a shape that produces better high frequency response with less wear or distortion than with earlier configurations.
“CLARITY AND PURITY”
Utilising PCOCC coil wire transmits distortion-free sound in which even the most subtle details are reproduced with clarity and purity.
| Type | VM Dual Magnet |
| Mounting | 1/2” centers |
| Frequency Response | 20 - 25,000 Hz |
| Channel Separation | 28 dB (1 kHz) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Output Voltage | 4.0 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force Range | 1,0 - 1,8g (standard 1,4g) |
| Stylus Shape | MicroLine™ |
| Stylus Size | Micro Linear |
| Stylus Construction | Nude Square Shank |
| Cantilever | Aluminium Tapered Pipe |
| Coil Impedance | 3,200 ohms (1 kHz) |
| Coil Inductance | 490 mH (1 kHz) |
| Static Compliance | 40 x 10-6 cm / dyne |
| Dynamic Compliance | 10 x 10-6 cm / dyne |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200 pF |
| Weight | 6.5g |
| Dimensions | 17.3 (H) x (16.0 (W) x 28.2 (L) mm |
| Replacement Stylus | ATN440Mb |
| Accessories Included |
