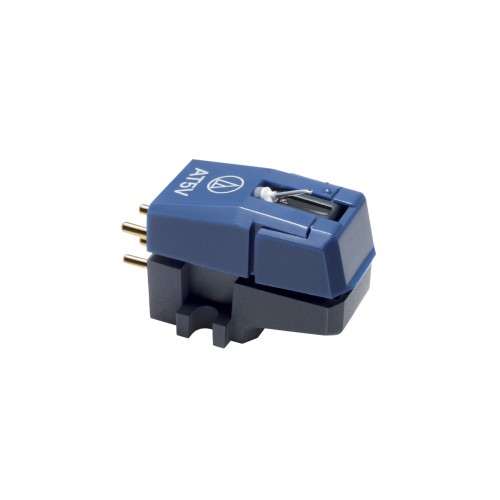

audio-technica AT5V
MOVING MAGNET CARTRIDGE
VM type dual magnet system
High-performance para-toroïdal generator coil system
Gold plated connectors
PCOCC coil
Stainless steel suspension wire improving sound quality and transient res
Conical polished diamond stylus
AT5V
MOVING MAGNET CARTRIDGE
VM cartridge with para-toroidal coil and conical stylus
Para-toroidal coils, long recognised for their high efficiency, are utilised here for the first time in cartridge manufacturing, characterised by uniform response and distortion-free performance.
Gold-plated connectors assure maximum energy transfer.
Superior imaging and channel separation are achieved through the A-T Vector Aligned Dual Magnet design.
- VM type dual magnet system
- High-performance para-toroidal generator coil system
- Gold plated connectors
- PCOCC coil
- Stainless steel suspension wire improving sound quality and transient response
- Conical polished diamond stylus for less critical tilt angle adjustment allowing more flexible use on various tonearms
| Type | VM Dual Magnet |
| Mounting | 1/2” centers |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 24 dB (1 kHz) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 5.0 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Stylus Shape | Conical |
| Stylus Size | 0.6 mil |
| Stylus Construction | Jointed Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 2.1 kΩ (1 kHz) |
| Coil Inductance | 360 mH (1 kHz) |
| Static Compliance | 35 x 10 – 6 cm / dyne |
| Dynamic Compliance | 8.0 x 10 – 6 cm / dyne (100 Hz) |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200pF |
| Weight | 6.1g |
| Dimensions | 17.3 (H) x 15.2 (W) x 26.9 (L) mm |
| Replacement Stylus | ATN5V |
| Accessories Included | Two 10 mm installation screws; Two 5 mm installation screws; Two hexagonal nuts; Two round nuts; Four washers; |
