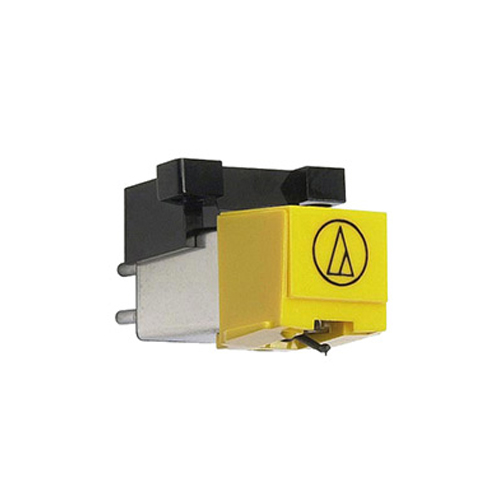

audio-technica AT91
ENTRY LEVEL MOVING MAGNET CARTRIDGE
Features a conical stylus
Robust housing for reliable, long lasting performance
Recommended by industry professionals
The go-to cartridge for entry level systems and older record players
AT91
CONICAL STYLUS MM STEREO CARTRIDGE
The AT90 Series represents years of research and development aimed at producing high performance cartridges at a reasonable price. Features include durable magnet design and round diamondstylus, capable of standing up to rigorous commercial use. Excellent channel separation and low distortion add to outstanding tonal quality. AT90 Series cartridges can be mounted on virtually any tonearm.
- Conical stylus
- Dual magnet design
- 2.0g tracking force
| Type | VM Dual Magnet |
| Mounting | Half-inch |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 18 dB at 1kHz |
| Output Channel Balance | 2.5dB |
| Output Voltage | 3.5 mV (mV at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force Range | 1.5 - 2.5g (standard 2.0g) |
| Stylus Shape | Conical |
| Stylus Size | 0.6 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Carbon Fibre Reinforced ABS |
| Coil Inductance | 400mH (1kHz) |
| Static Compliance | 20x10-6cm/dyne |
| Dynamic Compliance | 6.5x10-6cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200 pF |
| Weight | 5.7 g |
| Replacement Stylus | ATN91 |
| Accessories Included | Two 8mm installation screws; Two 5 mm installation screws; Two hexagonal nuts; Two rounded nuts; Four washers |
