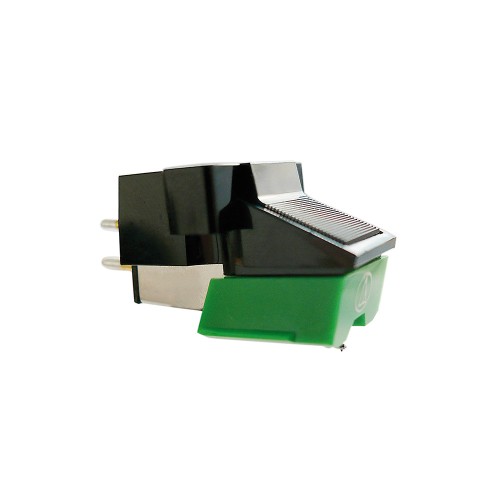

audio-technica AT95E
MID RANGE MOVING MAGNET CARTRIDGE
Outstanding overall performance for mid range systems
Elliptical diamond stylus and dual magnet setup
Features the same dual magnet design as the celebrated AT440MLa
Popular amongst entry to mid level enthusiasts
Excellent value for money
AT95E
ELLIPTICAL STYLUS MM STEREO CARTRIDGE
The AT90 Series represents years of research and development aimed at producing high performance cartridges at a reasonable price. Features include durable magnet design and round diamondstylus, capable of standing up to rigorous commercial use. Excellent channel separation and low distortion add to outstanding tonal quality. AT90 Series cartridges can be mounted on virtually any tonearm.
- Dual magnet design
- 0.3 x 0.7 mil elliptical stylus
- Alloy tube cantilever
| Type | VM Dual Magnet |
| Mounting | Half-inch |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 20 dB at 1kHz |
| Output Channel Balance | 2.0dB |
| Output Voltage | 3.5 mV (mV at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force Range | 1.5 - 2.5g |
| Stylus Shape | Elliptical |
| Stylus Size | 0.4 x 0.7 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Inductance | 400mH (1 kHz) |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 6.5x10-6cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200 pF |
| Weight | 5.7g |
| Dimensions | H17×W16.8×D31mm |
| Replacement Stylus | ATN95E |
| Accessories Included | Two 8mm installation screws; Two 5 mm installation screws; Two hexagonal nuts; Two rounded nuts; Four washers |
