audio-technica AT95E/HSB
DUAL MOVING MAGNET STEREO CARTRIDGE WITH HEADSHELL
VM type dual magnet system
Outstanding overall performance for mid-range systems
Preassembled with HS10 Headshell
Popular amongst entry to mid-level enthusiasts
Excellent value for money
AT95E/HSB
DUAL MOVING MAGNET STEREO CARTRIDGE WITH HEADSHELL
The AT95E/HSB provides outstanding overall performance for mid-range systems due to its elliptical diamond stylus and dual magnet setup, and comes preassembled with a HS10 headshell for a quick and easy set-up.
- VM type dual magnet system that can reproduce heavy bass sound with complete fidelity.
- Lightweight aluminium headshell (AT-HS10) included.
- Elliptical stylus and aluminium pipe cantilever to minimise vibration.
HASSLE-FREE SET-UP

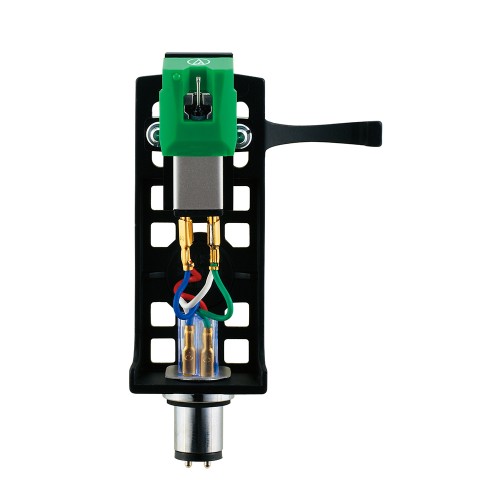

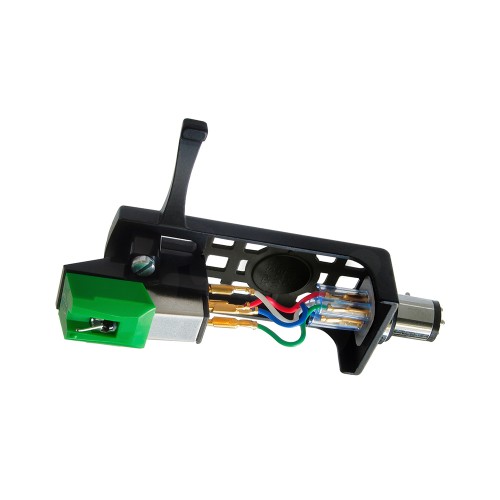

The AT95E VM Stereo cartridge comes preassembled with a lightweight aluminium HS10 Headshell for a quicker and easier set-up.
MINIMISES VIBRATION
Elliptical stylus and aluminium pipe cantilever helps to minimise vibration.
| Type | VM Type |
| Mounting | 1/2” centers |
| Frequency Response | 20 – 20,000Hz |
| Channel Separation | 20dB (1kHz) |
| Output Channel Balance | 2.0dB (1kHz) |
| Output Voltage | 3.5mV (1kHz, 5cm/sec.) |
| Vertical Tracking Angle | 20? |
| Vertical Tracking Force Range | 1.5 – 2.5g (2.0g standard) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.4 x 0.7 mil |
| Stylus Construction | Jointed Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 2,800Ω (1kHz) |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 6.5 x 10-6 cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000Ω |
| Recommended Load Capacitance | 100 – 200pF |
| Weight | 16.2g (without protector) |
| Dimensions | 20.0 (H) x 21.0 (W) x 66.1 (L) mm |
| Replacement Stylus | ATN95E |
