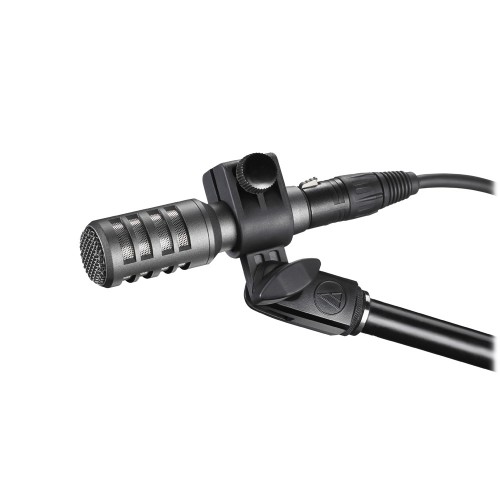

audio-technica AE2300
CARDIOID DYNAMIC INSTRUMENT MICROPHONE
Excels in high SPL applications
Maintains directionality across the entire frequency range
Double-dome diaphragm design improves high frequency and transient response
Minimal off-axis coloration
AE2300
CARDIOID DYNAMIC INSTRUMENT MICROPHONE
Featuring a propriety double-dome diaphragm construction to maintain directionality across the entire frequency range, introducing only the slightest off-axis coloration for excellent phase cohesion in multiple-mic setups. Equipped with a switchable low-pass filter that cuts out harsh, high-frequency noise without negatively affecting the overall tone of an instrument.
- Excels in high SPL applications
- Maintains directionality across the entire frequency range
- Double-dome diaphragm design improves high frequency and transient response
- Minimal off-axis coloration(frequency response is nearly identical at 0°, 90°, and 180°) helps to maintain phase cohesion in multiple microphone setups
- Switchable low-pass filter removes harsh, high-frequency hiss without negatively affecting the overall tone of an instrument
- Low-profile design allows microphone to be placed easily and unobtrusively in a wide variety of setups
- Rugged, brass metal construction ensures dependable performance in live music applications
- Includes AT8471 isolation stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, and a soft protective pouch
| Element | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Response | 60 - 20,000 Hz |
| Open Circuit Sensitivity | -57 dB (1.4 mV) re 1V at Pa |
| Impedance | 250 Ohms |
| Weight | 138 g (4.9 oz) |
| Dimensions | 95.6 mm (3.8") long, 28.0 mm (1.1") maximum diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8471 isolation stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch |
