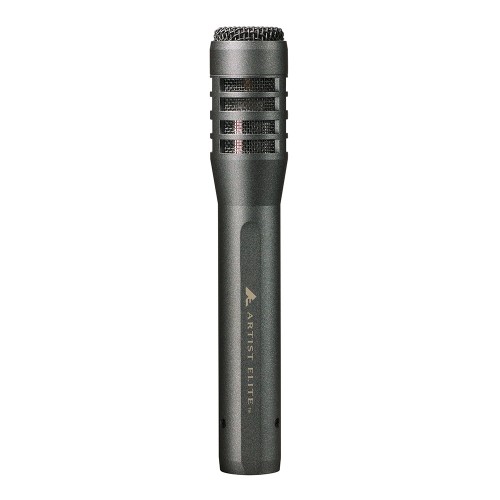

audio-technica AE5100
CARDIOID CONDENSER INSTRUMENT MICROPHONE
Large-diaphragm capsule delivers accurate and natural response
Low-profile design permits innovative placement options
Cardioid polar pattern reduces pickup of sounds from the sides and rear
Robust design for enduring dependability on the road
Includes isolation clamp for shock protection
Integral 80 Hz HPF switch and 10 dB pad
AE5100
A LARGE DIAPHRAGM IN A SMALL BODY
With its large-diaphragm element, the AE5100 guarantees uncompromised quality for all sound recording of acoustic instruments (especially violins and guitars), overheads, percussion, acoustic and choirs.
- Ideal for acoustic guitar, overheads, percussion, strings and other acoustic instruments, as well as for recording choirs
- Large diaphragm element for precise and natural response
- Discreet microphone offering new positioning options previously unavailable with large-diaphragm condensers
- Cardioid polar pattern improves isolation of desired sound source and reduces the sound to the side and rear
- Robust construction for consistent reliability on tour
- 80Hz High Pass Filter and 10 dB pad
- Product designed and manufactured in Japan, guaranteed 15 years
“PRECISE AND NATURAL RESPONSE”
Its large diaphragm condenser element combined with an "open" microphone head structure provides high accuracy and exceptional clarity in sound.
“SOLID CONSTRUCTION, CONSTANT RELIABILITY”
Robust metal construction ensures long lasting performance and consistent reliability on tour
“SWITCHABLE LOW-CUT FILTER AND ATTENUATOR”
The integrated low-cut filter allows you to switch easily between flat frequency response and bass rolloff. Its 10dB attenuator reduces the sensitivity of the microphone, whilst increasing the sound pressure level, thus increasing the versatility of the AE5100.
LOW CUT FILTER
The AE5100 is equipped with a filter that suppresses frequencies below 80 Hz, with a slope of 12dB / octave.
OPEN GRILLE
Its large element is protected by an open grille, which allows positioning of the AE5100 closer to the sound source.

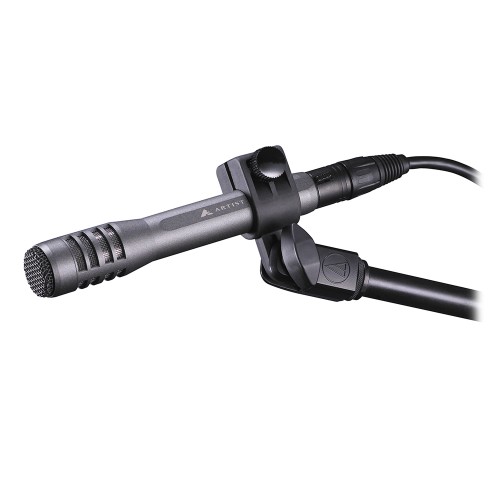

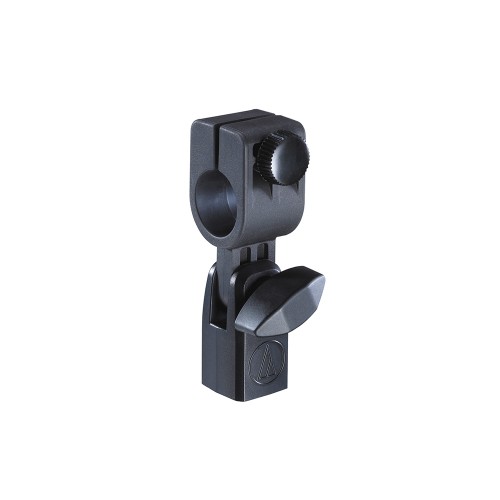

ANTI-SHOCK CLAMP
The AT8471 anti-shock clamp is included to ensure secure mounting, versatile positioning and to mitigate unwanted mechanical noise.

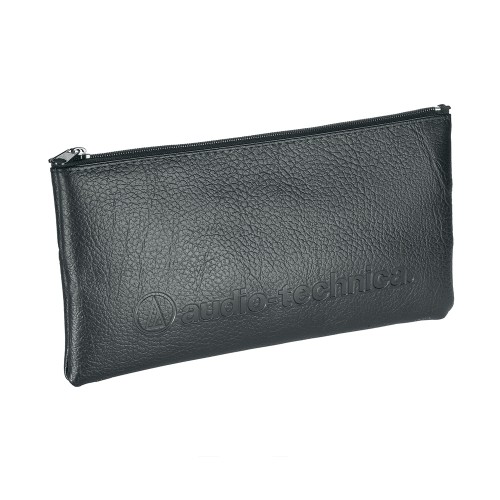

CARRY CASE
The AE5100 comes with a soft, protective carry case to facilitate storage and transportation.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 20 - 20,000 Hz |
| Open Circuit Sensitivity | -36 dB (15.8 mV) re 1V at 1 Pa |
| Impedance | 150 ohms |
| Maximum Input Sound Level | 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL with 10 dB pad (nominal) |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Dynamic Range | 137 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 83 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 3.2 mA typical |
| Weight | 143g |
| Dimensions | 5.85" (148.5 mm) long, 1.02" (26.0 mm) maximum diameter |
| Output Connector | Integral 3-pin XLRM-type |

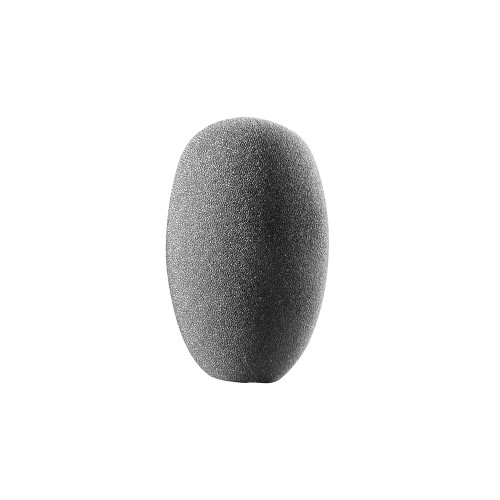

| Accessories Included | AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; soft protective pouch |
