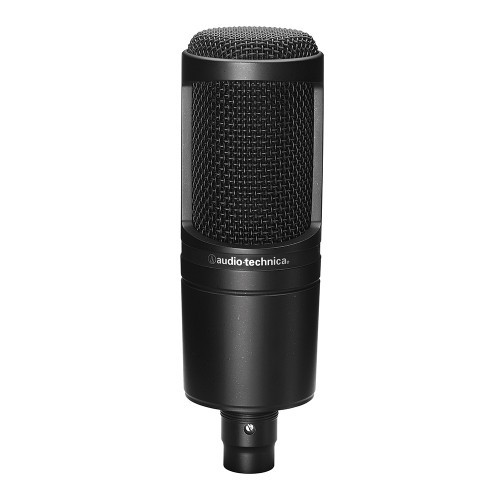

audio-technica AT2020

CARDIOID CONDENSER MICROPHONE

Rugged construction for durable performance
Ideal for project/home-studio applications
High SPL handling and wide dynamic range provide unmatched versatility
Custom-engineered low-mass diaphragm
Cardioid polar pattern

AT2020

AT2020

BEST QUALITY TO PRICE RATIO IN ITS CLASS

The AT2020 sets a new standard of performance and quality in studio condenser microphones at this price level. Its low-mass diaphragm is custom made for extended frequency response and superior transient response. With a very low intrinsic noise level, it is perfectly suited to current digital recording equipment. This microphone offers a wide dynamic range, and easily holds high sound pressure levels. Its rugged construction is designed to last for years.

  • One of the best quality / price ratios in side-address studio condenser microphone technology
  • Ideal for "Project / home-studio"
  • High sound pressure level and outstanding dynamic range make it a particularly versatile microphone
  • Made to measure Ø16mm low-mass diaphragm, providing both wide frequency response and superior transient response
  • Cardioid polar pattern improves isolation of desired sound source and a reduction of sound to the side and rear
  • Screw fixture and swivel foot ensure secure mounting and facilitate accurate microphone positioning
  • With its low operating noise, it is suitable for use with sophisticated recording equipment
  • Can be suspended optionally using AT8458


“IDEAL FOR PROJECTS / HOME STUDIO”

At a very affordable price, the AT2020 is the best choice for a first cardioid condenser studio microphone, combining performance, quality, robustness and versatility.

“HIGH SPL HANDLING”

Its high sound pressure level (144 dB) and exceptional dynamic range make the AT2020 particularly versatile.

“ROBUST CONSTRUCTION”

Technical design and advanced manufacturing ensure compliance with Audio-Technica's strict standards of consistency and reliability.



AT2020

CARDIOID CAPSULE

The Ø16 mm made to measure diaphragm, provides superior transient response over the entire frequency range.

AT2020

VERY VERSATILE

It is suitable for recording voice, instruments (percussion, piano, brass, winds, Leslie amp or guitar).

AT2020

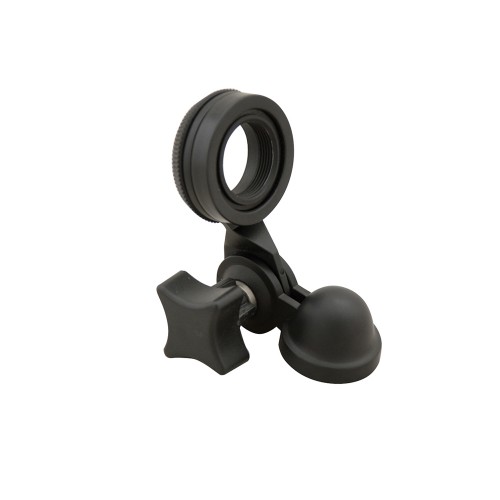

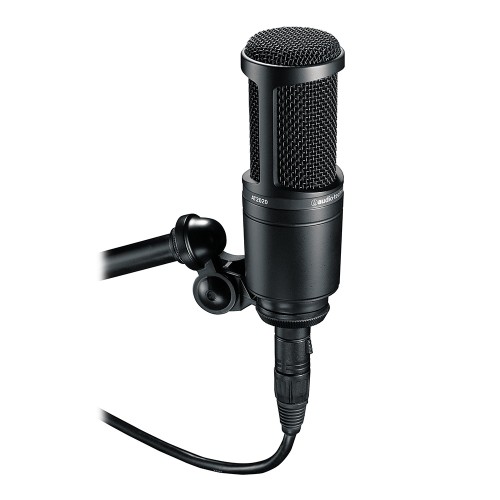

SWIVEL MOUNTING

The AT8466 attachment comes with the AT2020 can be installed on a conventional microphone stand, or on a tripod.

AT2020

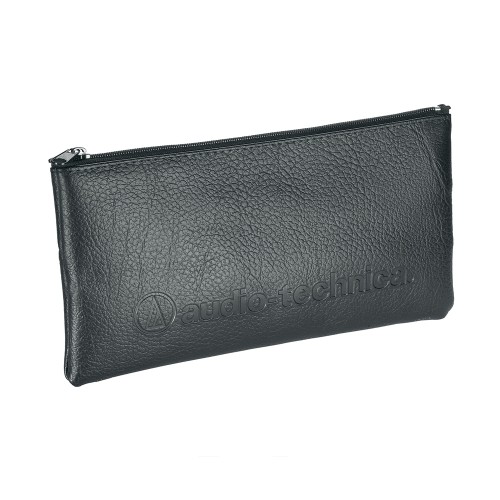

CARRY CASE

The AT2020 comes with a soft protective pouch for easy storage and transport.

AT2020
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 20 - 20,000 Hz
Open Circuit Sensitivity -37 dB (14.1 mV) re 1V at 1 Pa
Impedance 100 ohms
Maximum Input Sound Level 144 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range 124 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 74 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 2 mA typical
Weight 345g
Dimensions 6.38" (162.0 mm) long, 2.05" (52.0 mm) maximum body diameter
Output Connector Integral 3-pin XLRM-type
Accessories Included Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
