audio-technica AT4022

OMNIDIRECTIONAL CONDENSER MICROPHONE

Outstanding performance and rugged construction
Ideal for critical studio & live applications
High SPL handling and wide dynamic range
Flat, extended frequency response
Switchable 80 Hz hi-pass filter and 10 dB pad
Omnidirectional polar pattern provides maximum ambient pickup

AT4022

AT4022

IDEAL FOR PIANO AND FOR ALL ACOUSTIC INSTRUMENTS

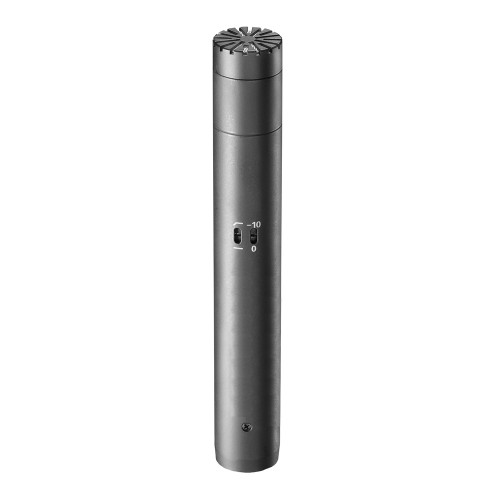

The low-profile AT4022 omnidirectional condenser recording mic is outstanding for piano, acoustic guitar, and other acoustic instruments. With a flat, extended frequency response and wide dynamic range ideal for critical studio and live applications, the AT4022 handles high SPLs with ease. The microphone’s omnidirectional polar pattern preserves the “sound” of the recording location, delivers flat response and freedom from proximity effect. Its low-mass diaphragm improves transient response and reduces handling/mechanical noise transfer.

  • Outstanding performance and rugged construction, ideal for critical studio & live applications
  • High SPL handling and wide dynamic range
  • Flat, extended frequency response
  • Switchable 80 Hz hi-pass filter and 10 dB pad
  • Omnidirectional polar pattern provides maximum ambient pickup
  • Low self noise perfectly suited for digital recording equipment
  • Exceptional reproduction of low frequency sounds
  • Low-mass element for superb transient response
  • Product designed and manufactured in Japan, guaranteed for 15 years


“PERFECT FOR USE WITH ACOUSTIC INSTRUMENTS”

With its omnidirectional polar pattern and flat frequency range, the AT4022 is perfect for capturing acoustic instruments. Its wide dynamic range allows it to be equally at home on stage, in the studio.

“OMNIDIRECTIONAL POLAR PATTERN”

The microphone’s omnidirectional polar pattern preserves the “sound” of the recording location, delivers flat response and freedom from proximity effect.

“EXCEPTIONAL LOW FREQUENCY RESPONSE”

Its low-mass diaphragm improves transient response and reduces handling/mechanical noise transfer. Furthermore, with its sound pressure maxim being between 146dB and 156dB (with the attenuator pad), it is also the perfect choice for capturing drums, and other percussion instruments.



AT4022

LOW-CUT FILTER

The AT4022 features a 80Hz low-cut filter and a switchable -10dB attenuator pad to increase the versatility of the microphone.

AT4022

HIGH QUALITY BUILD

Solid reliability and a consistency in sound quality are among the highlights of the AT4022.

AT4022

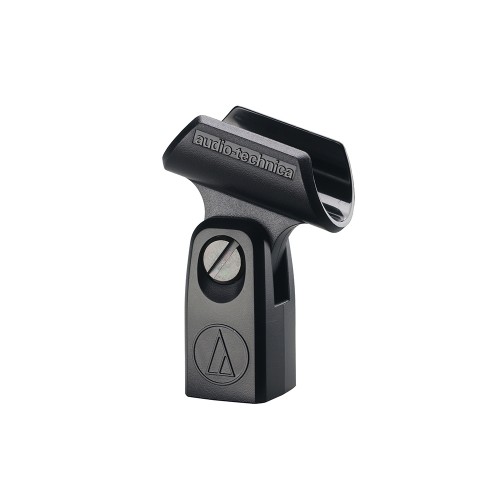

AT8405A SHOCK MOUNT

The AT8405a shock mount that comes with the AT4022 is also be suitable for all cylindrical microphones with a diameter of 21mm.

AT4022

PROTECTIVE CASE

The AT4022 fits neatly into its very own rigid carry case with room for the shock mount and windscreen too.

AT4022
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 20 - 20.000 Hz
Open Circuit Sensitivity -34 dB (19.9 mV) re 1V at 1 Pa
Impedance 250 ohms
Maximum Input Sound Level 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
Low Frequency Roll Off 80 Hz, 18 dB/octave
Dynamic Range 133 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 81 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 3.0 mA typical
Weight 124g
Dimensions 144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter
Output Connector Integral 3-pin XLRM-type

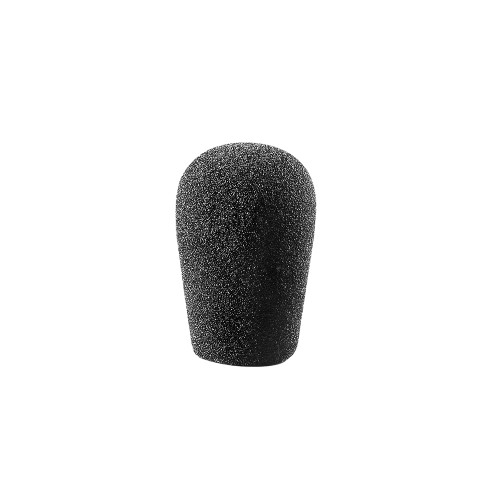

Accessories Included AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
