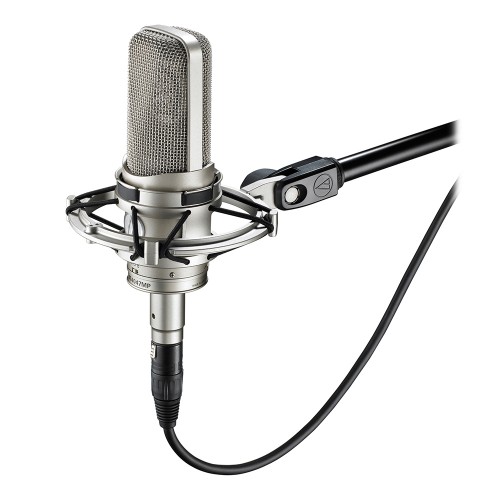

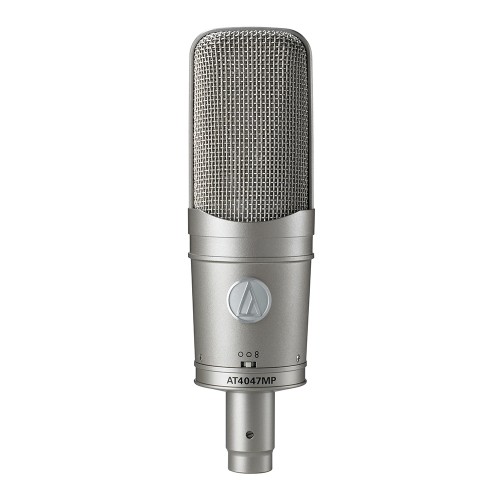

audio-technica AT4047MP

MULTI-PATTERN CONDENSER MICROPHONE

Three switchable polar patterns
Engineered to meet critical acoustic requirements
Exceptionally low self-noise, wide dynamic range and high SPL capability
Dual-diaphragm capsule design maintains precise polar pattern definition
Vintage silver-matte finish on microphone and shock mount
Custom shock mount provides superior isolation

AT4047MP

AT4047MP

WARM VINTAGE SOUND, VERSATILE AND OMNIDIRECTIONAL

Audio-Technica’s AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

  • Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
  • Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
  • Exceptionally low self-noise, wide dynamic range and high SPL capability
  • Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
  • Vintage silver-matte finish on microphone and shock mount
  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
  • Custom shock mount provides superior isolation
  • Integral 80 Hz high-pass filter switch and 10 dB pad switch


“DESIGNED FOR STUDIO, LIVE AND BROADCAST APPLICATIONS”

With a wide dynamic range, incredibly low self-noise and high SPL capability, the highly versatile AT4047MP microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

“WARM AND RICH VINTAGE SOUND”

Transformer-coupled output and specially tuned element provide warm sonic characteristics reminiscent of early F.E.T. studio microphone designs.

“STABILITY AND SENSITIVITY”

The precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity to the microphone.



AT4047MP

VINTAGE DESIGN AND SOUND

The AT4047MP not only has the vintage sound of an early F.E.T. studio microphone but also a very handsome a silver-matte finish on both mic and shock mount to compliment the retro feel

AT4047MP

OPEN ACOUSTICAL ENVIRONMENT

Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

AT4047MP

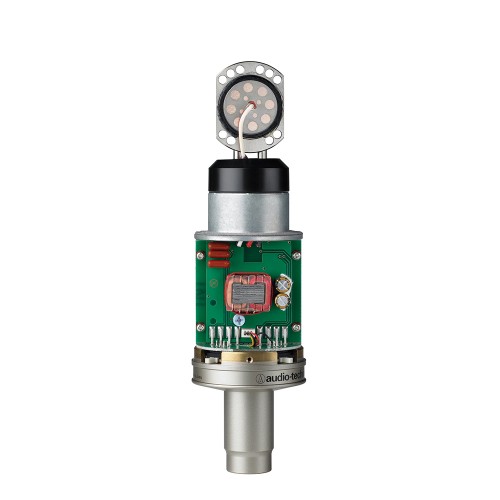

DUAL-DIAPHRAGM CAPSULE

Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone

AT4047MP

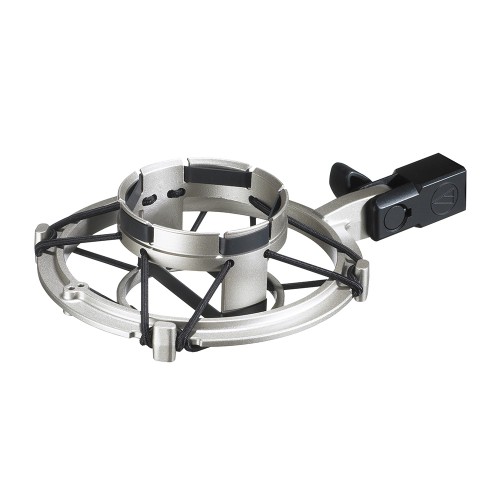

AT8449SV SHOCK MOUNT

The shock mount is designed to mitigate noise and unwanted vibration. Its matt metallic design matches and compliments the AT4047MP microphone

AT4047MP
Element Externally-polarized (DC bias) condenser
Polar Pattern Cardioid, Omnidirectional, Figure-of-eight, Multi-pattern
Frequency Response 20 - 18,000 Hz
Open Circuit Sensitivity -42 dB (7.9 mV), re 1V at 1 Pa
Impedance 100 ohms
Maximum Input Sound Level 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)
Noise 14 dB
Low Frequency Roll Off 80 Hz, 12 dB/octave
Switches Polar selection; Flat, roll-off;10 dB pad (nominal)
Dynamic Range 141 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 80 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 3.4 mA typical
Weight 524g
Dimensions 188.0 mm (7.40") long,53.4 mm (2.10") maximum body diameter
Output Connector Integral 3-pin XLRM-type
Audio-Technica Case Style R1

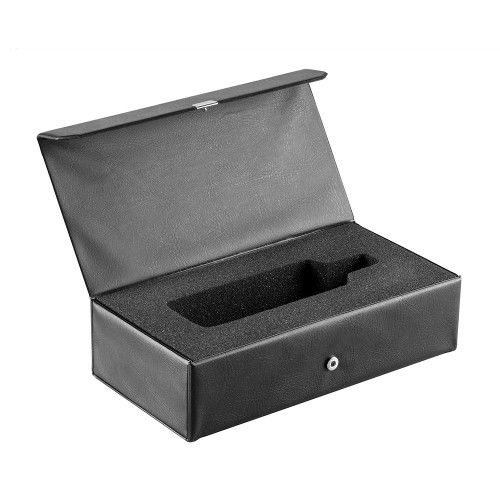

Accessories Included AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
