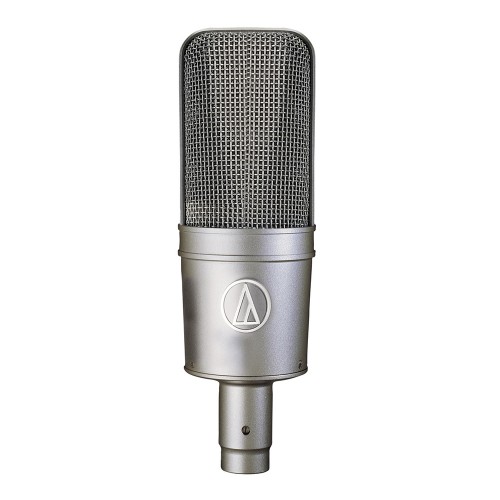

audio-technica AT4047SVSM

CARDIOID CONDENSER MICROPHONE

Designed for critical studio, live sound and broadcast applications
Exceptionally low self-noise, wide dynamic range and high SPL capability
Dual-diaphragm capsule design
Produces a rich and warm vintage sound
Vintage silver-matte finish on microphone and shock mount
Custom shock mount provides superior isolation
WHERE TO BUY

AT4047SVSM

A RICH AND WARM VINTAGE SOUND

Offering a rich and warm sound reminiscent of classic F.E.T. studio microphones, the AT4047 uses a dual diaphragm capsule design to maintain a precise polar pattern across a wide dynamic range, with exceptionally low noise and high SPL capability. With an elegant matte silver finish with matching high quality shockmount, this exceptional mic looks as good as it sounds.

  • Ideal for vocals, electric and acoustic guitar, overheads and brass
  • Transformer-coupled output and specillay tuned element produces a sonic characteristics reminiscent of early F.E.T, studio microphone designs
  • Dual-diphragm capsule maintains precise polar pattern definition across the full frequency range
  • Precision-machined, nickel-plated brass, acoustic element baffle for enhanced stability and optimal sensitivity
  • State of the art surface mount electronics for consistency and reliability
  • High-SPL capability and extended frequency response
  • State of the art surface mount electronics for consistency and reliability
  • Supplied with AT8449SV shockmount for superior sonic isolation


“DESIGNED FOR STUDIO, LIVE SOUND AND BROADCAST”

With a wide dynamic range, incredibly low self noise and high SPL capability, the AT4047SVSM excels on vocals, voiceovers, strings, acousitc guitar, instrument groups and small vocal ensembles.

“A RICH AND WARM SOUND”

The transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphones, giving a rich and warm sound.

“ENHANCED ELEMENT STABILITY AND OPTIMAL SENSITIVITY”

The precision machined, nickel plated brass acoustic element baffle provides enhanced element stability and optimal sensitivity.




CLASSIC LOOK AND SOUND

The AT4047SVSM not only has a vintage F.E.T.sound, it also has a classic matte silver finish, completing the retro feel.

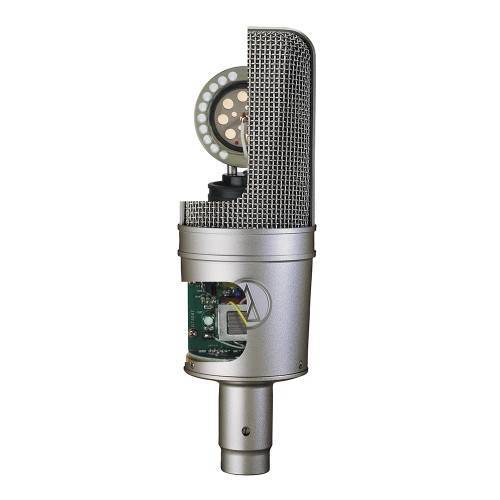

SYMETRICAL HOUSING ASSEMBLY

The open acoustic environment of the symetrical housing assembly minimizes unwanted internal reflections.

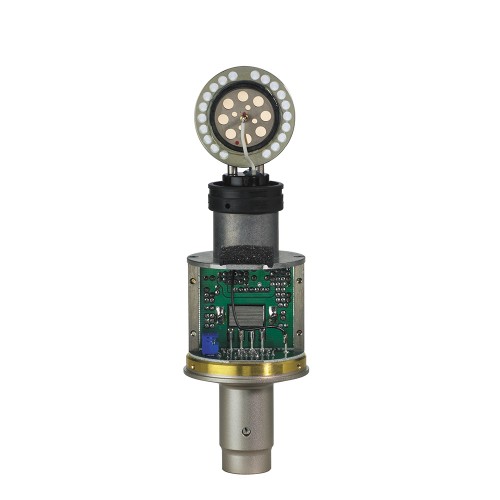

DUAL-DIAPHRAGM CAPSULE

The dual-diaphragm capsule maintains precise polar pattern definition across the full dynamic range.

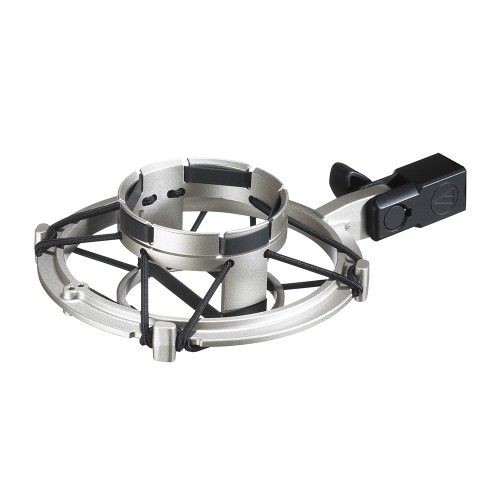

AT8449SV SHOCK MOUNT

An advanced-design custom shock mount provides superior isolation attenuating noise, shock and vibration.

AT4047SVSM
Element Externally-polarized (DC bias) condenser
Polar Pattern Cardioid
Frequency Response 20 - 18,000 Hz
Open Circuit Sensitivity -35 dB (17.7 mV) dB re 1V at 1 Pa
Impedance 250 ohms
Maximum Input Sound Level 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
Low Frequency Roll Off 80 Hz, 12 dB/octave
Dynamic Range 140 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 85 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 3.0 mA typical
Weight 410g
Dimensions 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter
Output Connector Integral 3-pin XLRM-type

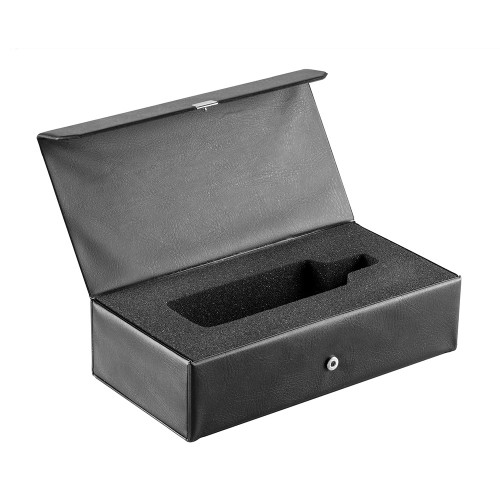

Accessories Included AT8449SV shock mount for 5/8"-27 threaded stands; protective carrying case
