audio-technica AT4053B
HYPERCARDIOID CONDENSER MODULAR MICROPHONE
Meet the most critical acoustic requirements of professional recording
Featuring direct-coupled balanced outputs
Omni and cardioid head capsules are available separately
Transformerless circuitry virtually eliminates low-frequency distortion
Switchable 80 Hz hi-pass filter and 10 dB pad
Rugged turned-brass microphone housing for enduring dependability

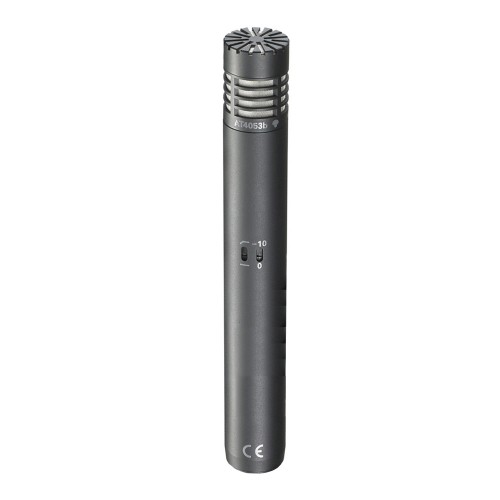

AT4053B
HYPERCARDIOID CONDENSER MODULAR MICROPHONE
This versatile studio performer may be used with confidence in a wide variety of professional miking applications. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the AT4053b is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments.
The AT4053b consists of two modular subassemblies: an AT4900b-48 body and an AT4053b-EL hypercardioid head capsule (both available separately). Additional interchangeable capsules are available in omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL).
- Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Direct-coupled, balanced output results in a clean signal even under high-output conditions
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Rugged turned-brass microphone housing for enduring dependability
- State-of-the-art design and manufacturing techniques ensure compliance with Audio-Technica's stringent consistency and reliability standards
Element | Externally polarized (DC bias) capacitor |
Polar Pattern | Hypercardioid |
Frequency Response | 20 - 20.000 Hz |
Open Circuit Sensitivity | -34 dB (19.9 mV) re 1V at 1 Pa |
Impedance | 50 ohms |
Maximum Input Sound Level | 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) |
Low Frequency Roll Off | 80 Hz, 18 dB/octave |
Switches | Flat, roll-off; 10 dB pad (nominal) |
Dynamic Range | 129 dB, 1 kHz at Max SPL |
Signal-to-Noise Ratio | 78 dB, 1 kHz at 1 Pa |
Phantom Power Requirements | 48V DC, 4.8 mA typical |
Weight | 127g |
Dimensions | 155.0 mm (6.10") long, 21.0 mm (0.83") maximum body diameter |
Output Connector | Integral 3-pin XLRM-type |

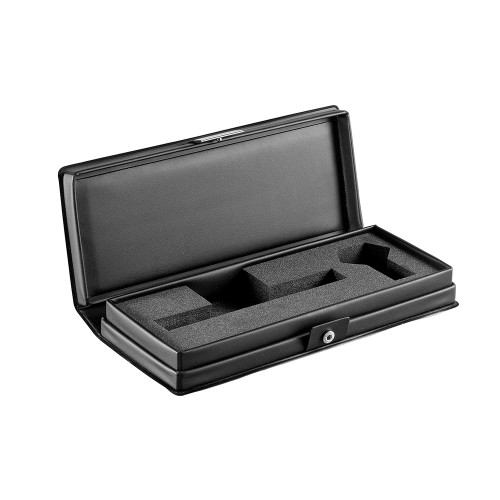

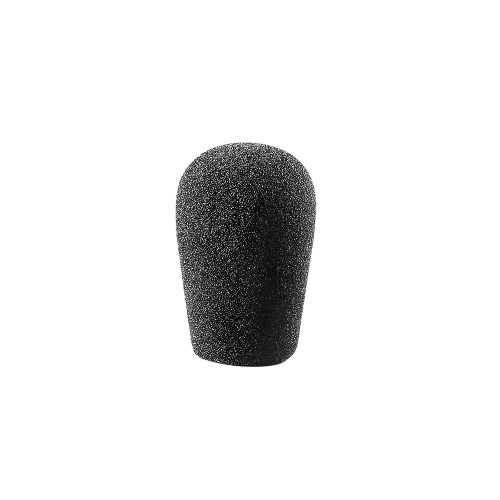

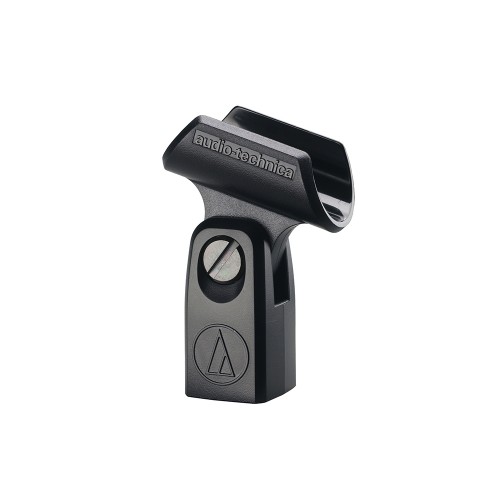

Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case |
