audio-technica AT5045
PREMIER STUDIO CONDENSER INSTRUMENT MICROPHONE
Large diaphragm condenser in a convenient stick type body
Pure, realistic sound quality for acoustic instruments
Discrete components carefully selected for optimised capsule performance
Transformer-coupled output provides smooth sonic character
Exceptionally low noise with high-SPL capability
Hand built and inspected for 100% quality control
WHERE TO BUY
AT5045

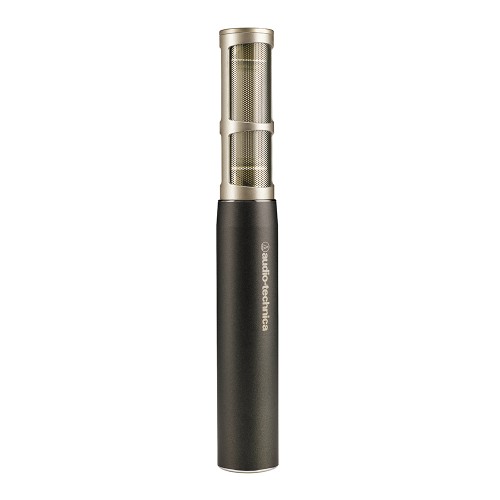

A LARGE DIAPHRAGM IN A SMALL BODY
Available as a single mic or a stereo pair, the AT5045 offers the sound and performace of a large diagphram studio condenser microphone, in a small and easy to position stick type body. Despite its small size, the AT5045 has Audio-Technica's largest single diaphragm, larger than most large diaphragm condenser microphones on the market.
- Audio-Technica’s premium studio condenser instrument microphone
- Larger diaphragm surface area than most traditional large diaphragm condenser microphones on the market
- Stick design for easy and precise microphone positioning
- Pure and realistic sound quality; ideal for piano, overheads and acoustic instruments
- Discrete components carefully selected for optimized capsule performance
- High-SPL capability and extended frequency response
- Hand assembled and inspected for 100% quality control
- Elegant, durable housing of aluminum and brass
“EASY AND PRECISE MICROPHONE POSITIONING”
The AT5045 is presented in a convenient stick design body, meaning you can easily position it in places that are not possible with other large diaphragm condenser microphones, making it a very versatile microphone.
“AUDIO-TECHNICA’S LARGEST SINGLE ELEMENT”
The AT5045 uses Audio-Technica's largest single element, larger than that of most on the market, offering a pure and accurate sound reproduction that is perfectly suited to acoustic instruments.
“OPTIMIZED CAPSULE PERFORMANCE”

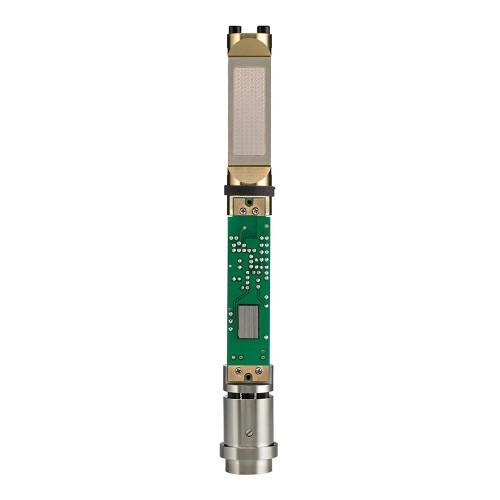

Discrete components have been chosen to complete the circuitry, honing down to the very essentials, allowing optimized capsule performance and an unpresidented dynamic range.

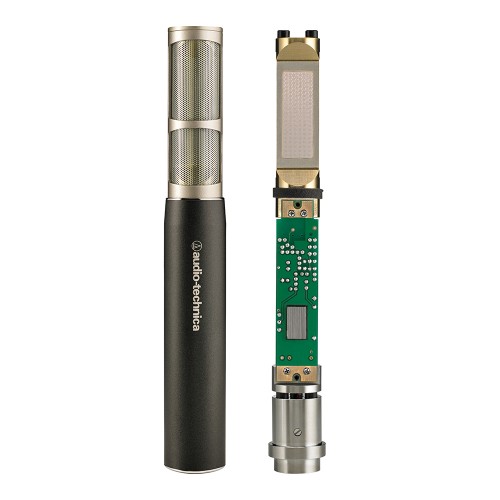

INNOVATIVE DESIGN
the AT45045 offers a diaphragm larger than most on the market, but in a convenient, easy to position stick type body, made from durable aluminium and brass.
LARGE RECTANGULAR DIAPHRAGM
The AT5045 has Audio-Technica's largest single diaphragm, offering imporoved transient response and increased bandwidth

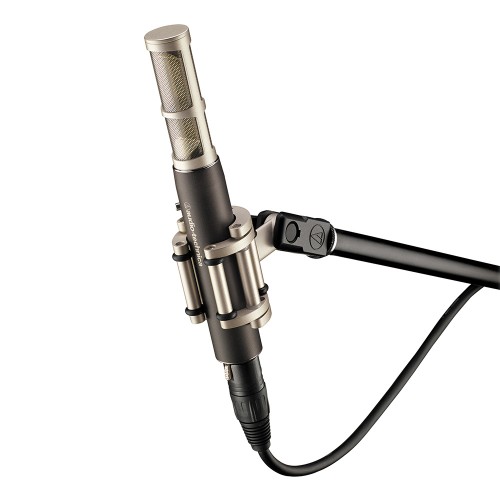

AT8482 SHOCK MOUNT
An advanced-design custom shock mount provides superior isolation attenuating noise, shock and vibration
CUSTOM HARD-SHELL CARRY CASE
Custom hard-shell carry case with die cut foam compartments offers protection for one or two microphones
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 20 - 20,000 Hz |
| Open Circuit Sensitivity | -35 dB (17.7 mV) re 1V at 1 Pa* |
| Impedance | 100 ohms |
| Maximum Input Sound Level | 149 dB SPL, 1 kHz at 1% T.H.D. |
| Noise | 8 dB SPL |
| Dynamic Range | 141 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 86 dB, 1 kHz at 1 Pa* |
| Phantom Power Requirements | 48V DC, 1.4 mA typical |
| Weight | 197g |
| Dimensions | 177 mm long, 25.0 mm maximum body diameter |
| Output Connector | Integral 3-pin XLRM-type |

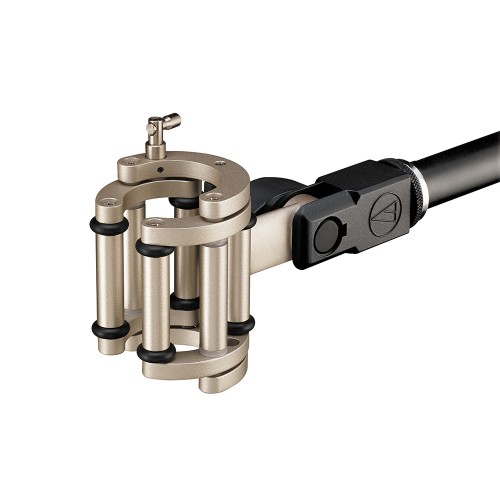

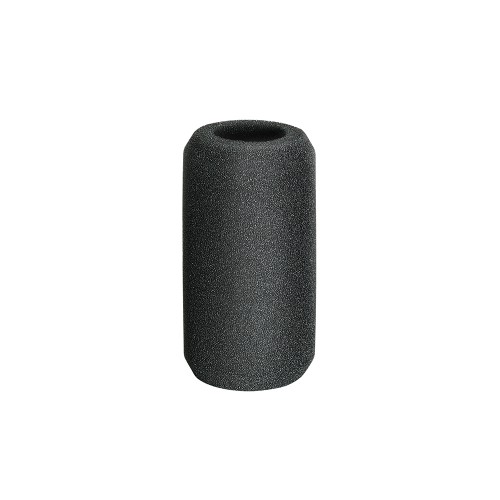

| Accessories Included | AT8481 isolation clamp for 5/8"-27 threaded stands; AT8165 windscreen; protective carrying case |
