audio-technica AT8010
OMNIDIRECTIONAL CONDENSER MICROPHONE
Ideal for interviews, group vocals, string, overheads, acoustic instruments
Omnidirectional polar pattern provides maximum ambient pickup
Extremely smooth, extended response on- and off-axis
Low sensitivity to popping and overload
Operates on battery or phantom power
Natural reproduction of surrounding ambience
AT8010
OMNIDIRECTIONAL CONDENSER MICROPHONE

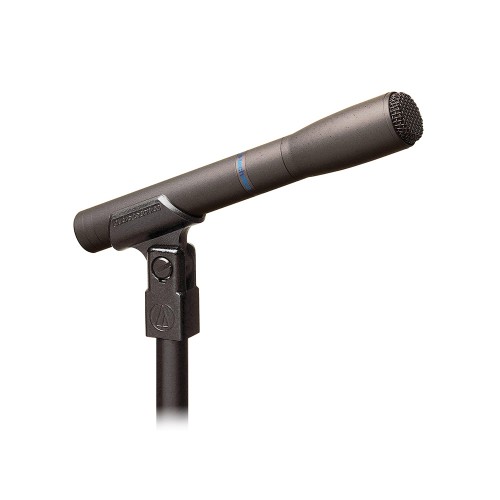

The AT8010 is ideal for interviews, sportscasting and for use as the ”mono” mic in conjunction with a stereo microphone. Its omnidirectional polar pattern provides natural reproduction of surrounding ambience. The mic’s rugged housing with hardened-steel grille stands up to field use; its internal shock mounting minimizes handling and cable noise. Operates on battery or phantom power.
- Ideal for interviews, group vocals, strings, cymbal overheads, acoustic guitar and piano
- Omnidirectional polar pattern provides maximum ambient pickup
- Extremely smooth, extended response on- and off-axis
- Low sensitivity to popping and overload
- Operates on battery or phantom power
| Element | Fixed-charge back plate permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 - 20.000 Hz |
| Open Circuit Sensitivity | Phantom: -44 dB (6.3 mV) re 1V at 1 Pa ; Battery: -45 dB (5.6 mV) re 1V at 1 Pa |
| Impedance | Phantom: 250 ohms Battery: 300 ohms |
| Maximum Input Sound Level | Phantom: 137 dB SPL, 1 kHz at 1% T.H.D. Battery: 123 dB SPL, 1 kHz at 1% T.H.D. |
| Low Frequency Roll Off | 80 Hz, 18 dB/Octave |
| Switches | Flat, roll-off |
| Dynamic Range | Phantom: 113 dB, 1 kHz at Max SPL Battery: 99 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Weight | 165 g (5.8 oz) |
| Dimensions | 178.0 mm (7.01") long, 26.0 mm (1.02") head diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; battery; soft protective pouch |
