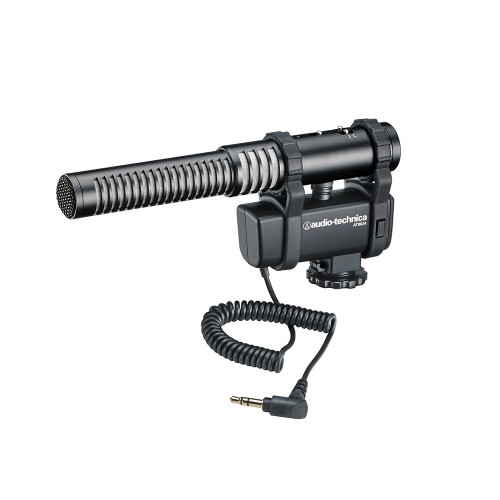

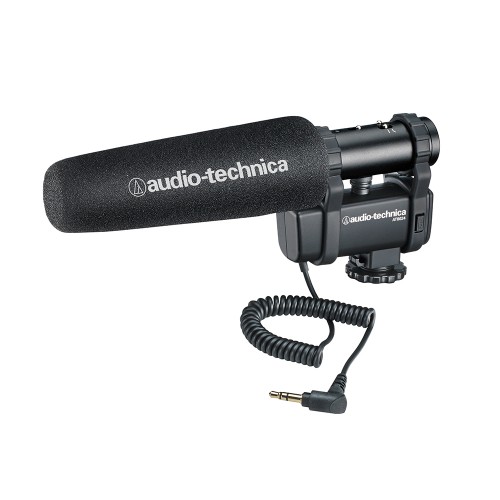

audio-technica AT8024
STEREO/MONO CAMERA-MOUNT MICROPHONE
Designed for use with DSLR and other video cameras
Delivers dramatically better sound quality than the camera’s internal mic
Selectable line-cardioid mono or mid-side stereo modes
Three-position adjustable input pad and switchable low-frequency roll-off
Integral rubber shock mounts for vibration and mechanical noise isolation
Compact, lightweight design with integral shoe mount
AT8024
AN ESSENTIAL MICROPHONE FOR VIDEO MAKERS
Designed specifically for use with DSLR and other video cameras, the AT8024 delivers dramatically better sound quality than inbuilt camera mics, with a convenient integral shoe mount and rubber shock mount to isolate from vibration and mechanical camera noise.
- Designed for use with DSLR and other video cameras
- Delivers dramatically better sound than built in camera mics
- Selectable stereo or mono modes
- Three-position adjustable input pad
- Switchable low-frequency roll-off
- Integral rubber shock mounts isolate from vibration and mechanical camera noise
- Integral shoe mount for easy convenient positioning
- 3.5mm stereo jack with coiled cable
“DESIGNED FOR VIDEO CAMERAS”
The AT8024 is a fixed-charge condenser microphone designed for use with DSLR and other video cameras. The microphone offers the flexibility of mono and mid-side stereo modes for high-resolution audio in any environment.
“DRAMATICALLY IMPROVED SOUND”
The AT8040 delivers dramatically better sound than built in camera microphones, with an integrated 3.5mm cable connecting directly into your camera.
“ADJUSTABLE INPUT PAD AND LOW FREQUENCY ROLL-OFF”
The microphone also features an 80 Hz high-pass filter switch that permits choice of flat response or low-frequency roll-off to reduce the pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations.
SHOE MOUNTING

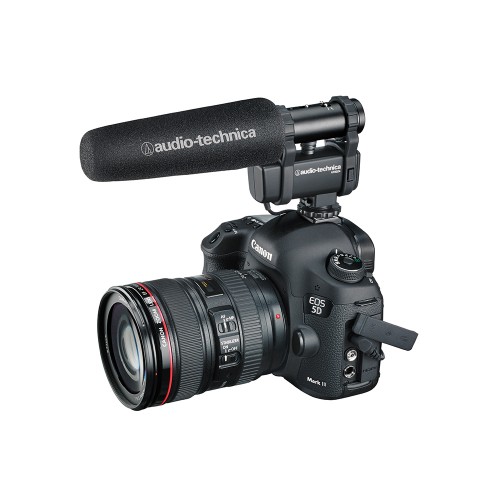

Integral shoe mount for easy and convenient mic positioning on a DSLR video camera.
MONO AND STEREO MODES
Switchable Mono and Stereo modes for high-resolution in any environment.
INTEGRAL SHOCK MOUNT
Two rubber shock mounts isolate the microphone from vibration and mechanical camera noise.
LONG BATTERY LIFE
The standard AA 1.5V battery will typically provide 80 hours battery life under normal conditions.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Line-cardioid, LR stereo |
| Frequency Response | 40-15,000 Hz |
| Open Circuit Sensitivity | –37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo) |
| Impedance | 50 ohms |
| Maximum Input Sound Level | 128 dB SPL, 1 kHz at 1% T.H.D. |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Switches | Mono, M-S Stereo; Three-position input pad; Flat, roll-off |
| Dynamic Range | Mono: 106 dB, 1 kHz at Max SPL; Stereo: 104 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | Mono: 72 dB, 1 kHz at 1 Pa; Stereo: 70 dB, 1 kHz at 1 Pa |
| Battery Type | 1.5V AA |
| Battery Current/Life | 80 hours typical |
| Weight | 114 g |
| Dimensions | 172 mm (L) x 82 mm (H) x 30mm (W) |
| Output Connector | 3.5 mm stereo mini-plug on cable |
| Cable | Permanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end |

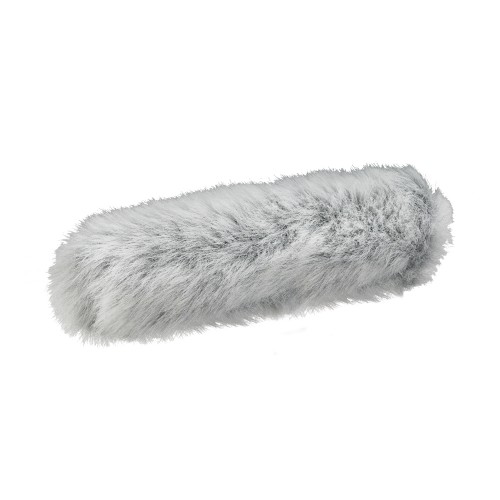

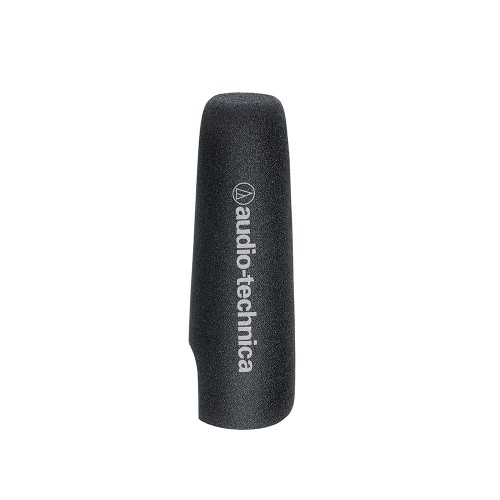

| Accessories Included | Windscreen; Fuzzy windscreen; AA battery |
